Solis Three Phase Energy storage inverter

High Voltage Energy Storage Inverter

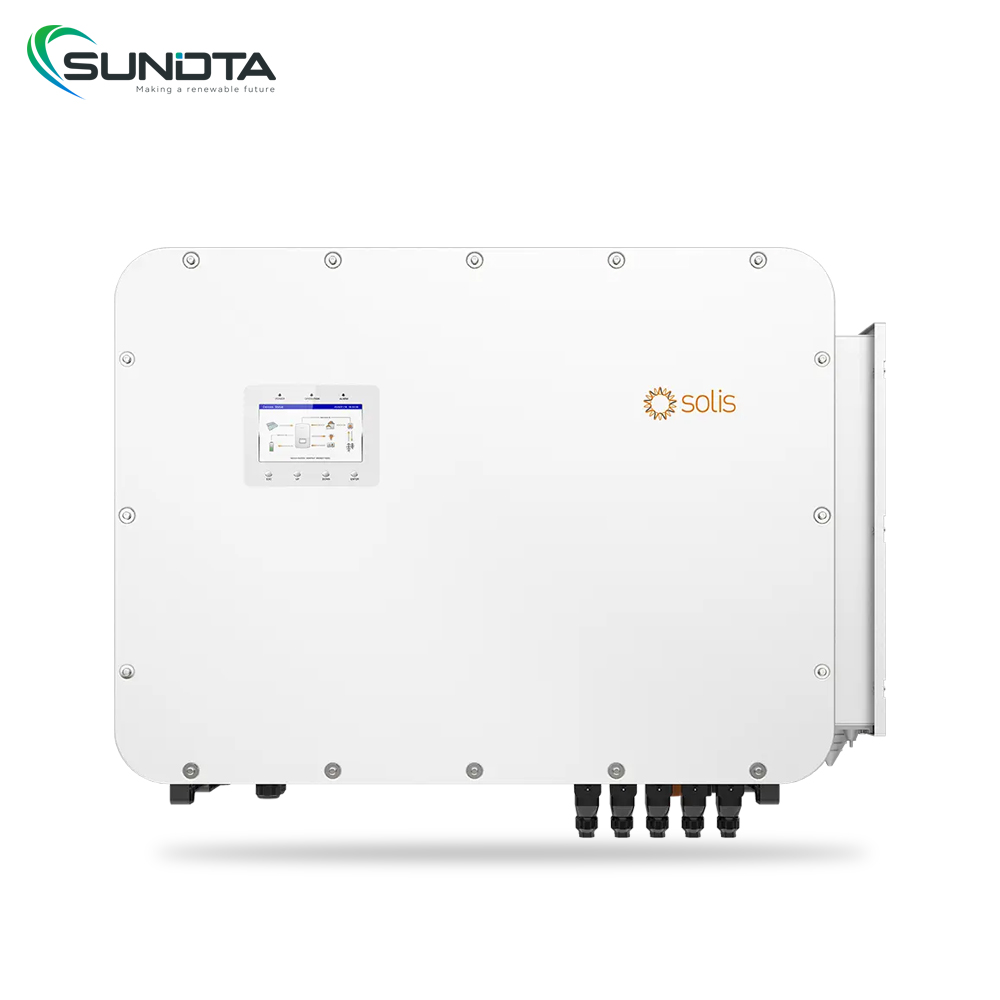

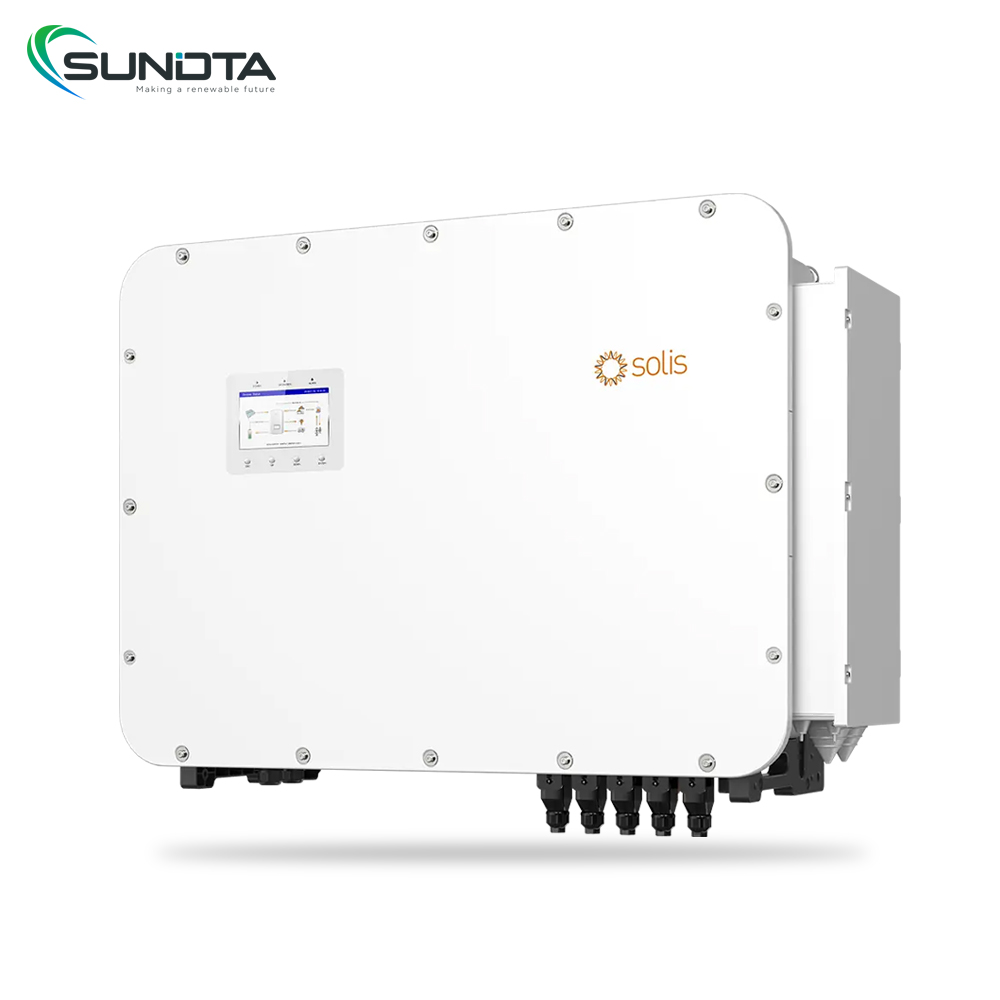

   Introducing the S6-EH3P(80-125)K10-NV-YD-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(80-125)K10-NV-YD-H series supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Features:

• Smart Energy Management
• 1. AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs；
• 2. Adapt to third party VPP platform, frequency service provider.
•

Flexible & Scalable

1. Compatible with mainstream lithium batteries；

2. Support Solis C&I battery solution；

3. Easily expand system capacity using parallel connections and AC coupling.

High Performance

1. Supports 100% three-phase unbalanced output

2. 200% PV input capacity to maximize solar energy utilization；

3. Max. 200% overload capability in off-grid mode；

4. Charging and discharging currents of up to 200A；

5. Switching time < 10ms。

Simple & Fast Configuration

1. 7-inch LCD screen for an intuitive user experience

2. Bluetooth app support for quick and easy setup
