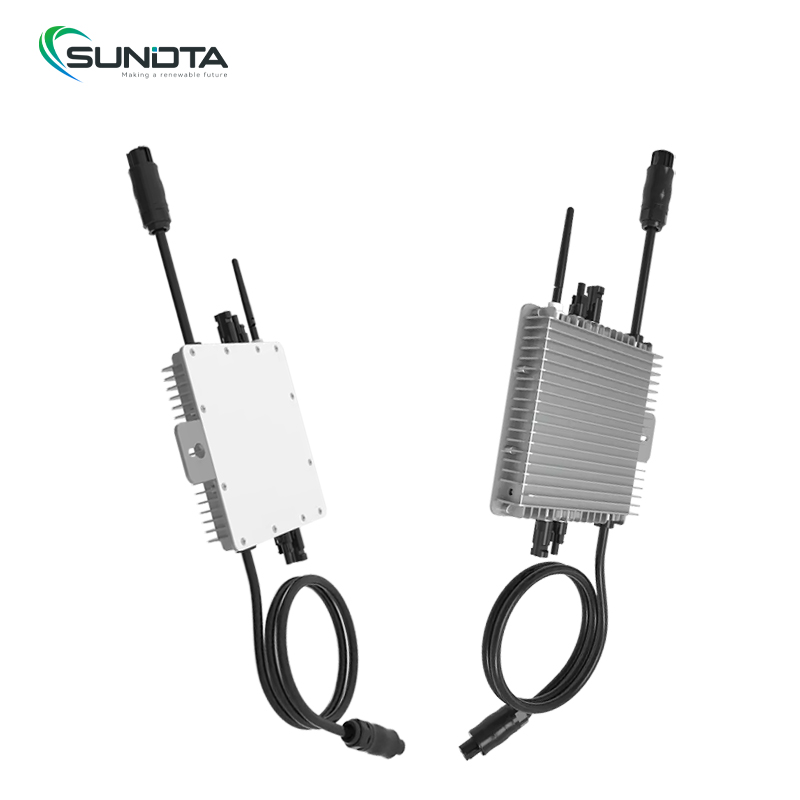

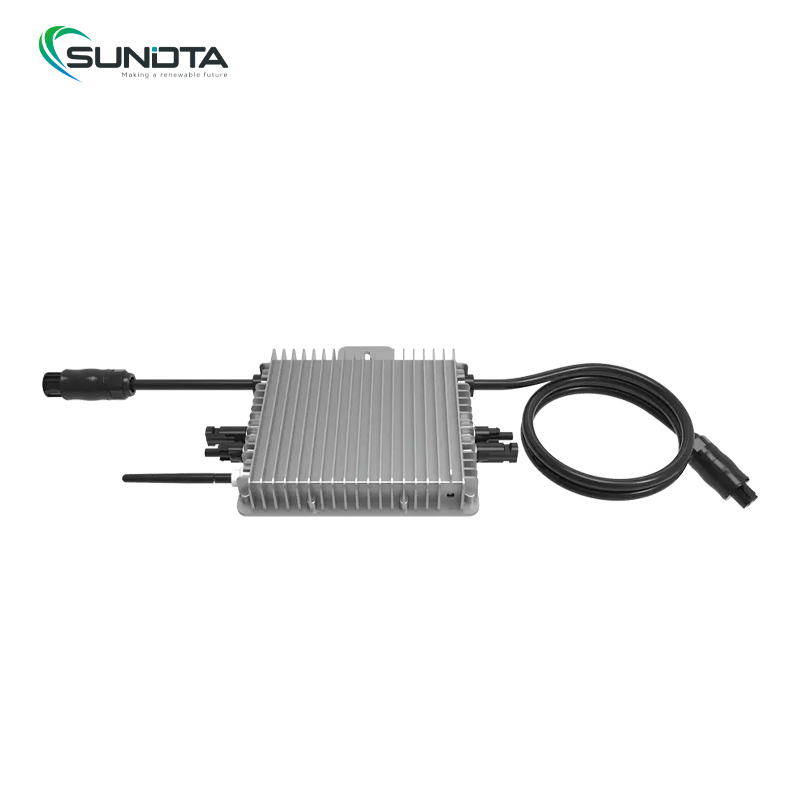

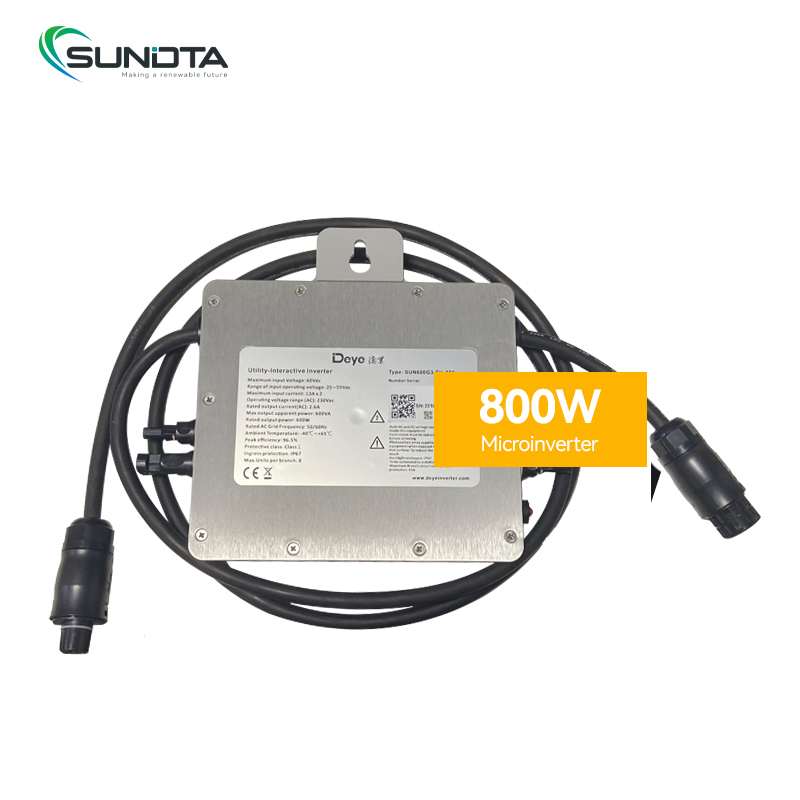

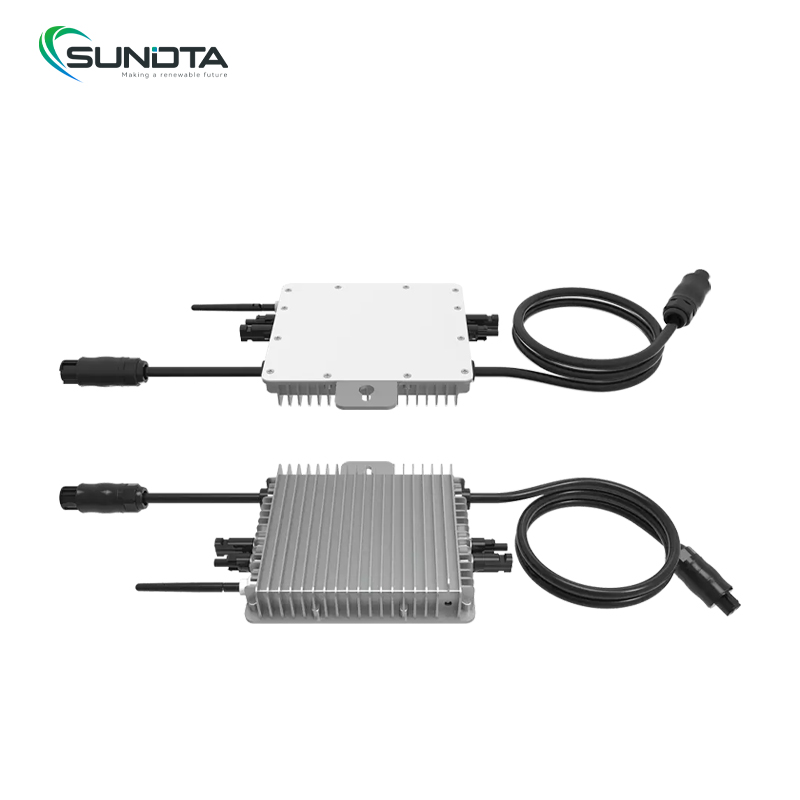

Deye 800w Single Phase Solar Micro Inverter with 10 Years Warranty

Deye 800w Single Phase Solar Micro Inverter with 10 Years Warranty

External relay advantage with low temperature, long life,easier maintenance All in one hybrid inverter

Model:
SUN800G3-US-220/EU-230
Max. PV Input Power(W):
210-420(2 Pieces)
Max. PV Input Voltage(V):
60
MPPT Efficiency:
>99%
Operating Temperature Range (℃):
-40 to +65℃, >45℃ Derating
Warranty [year]:
10 years
Grid Regulation:
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,VDE-AR-N 4105

Inquiry now

Product Details

micro inverter

Deye 800w Single Phase Solar Micro Inverter with 10 Years Warranty

- 2 MPP trackers, module level monitoring
- IP67 protection degree
- WIFI communication
- Rapid shutdown function
- Easy installation, suitable for quick-plug balcony PV system
- <100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety

Model	SUN800G3-US-220/EU-230
PV String Input Data
Max. PV Input Power(W)	210-420(2 Pieces)
Max. PV Input Voltage(V)	60
Start-up Voltage(V)	20
MPPT voltage range(V)	25-55
Rated PV Input voltage(V)	42.5
Max. Input Short-Circuit Current (A)	19.5+19.5
Max. Operating PV Input Current(A)	13+13
No. of MPP Trackers/No. of String per MPP Tracker	2/1
AC Input/Output Side
Rated AC Output Active Power(W)	800
Max.AC Output Apparent Power(VA)	800
Rated AC output current (A)	3.7/3.5
Max.AC Output Current(A)	3.7/3.5
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L/N/PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Max. unit per branch	8
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
Efficiency	96.5%
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%
Equipment Protection
DC Polarity Reverse Connection Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
DC Terminal Insulation Impedance Monitoring	YES
Power Network Monitoring	YES
Island protection monitoring	YES
Earth Fault Detection	YES
Overvoltage Load Drop Protection	YES
Interface	YES
Communication Interface	WiFi
General Data
Operating Temperature Range (°C)	-40 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 25 dB(A)
Ingress Protection(IP) Rating	IP 67
Inverter Topology	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size（WHD）[mm]	280.519040（Excluding connectors and brackets）
Weight [kg]	3
Warranty [year]	10 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
