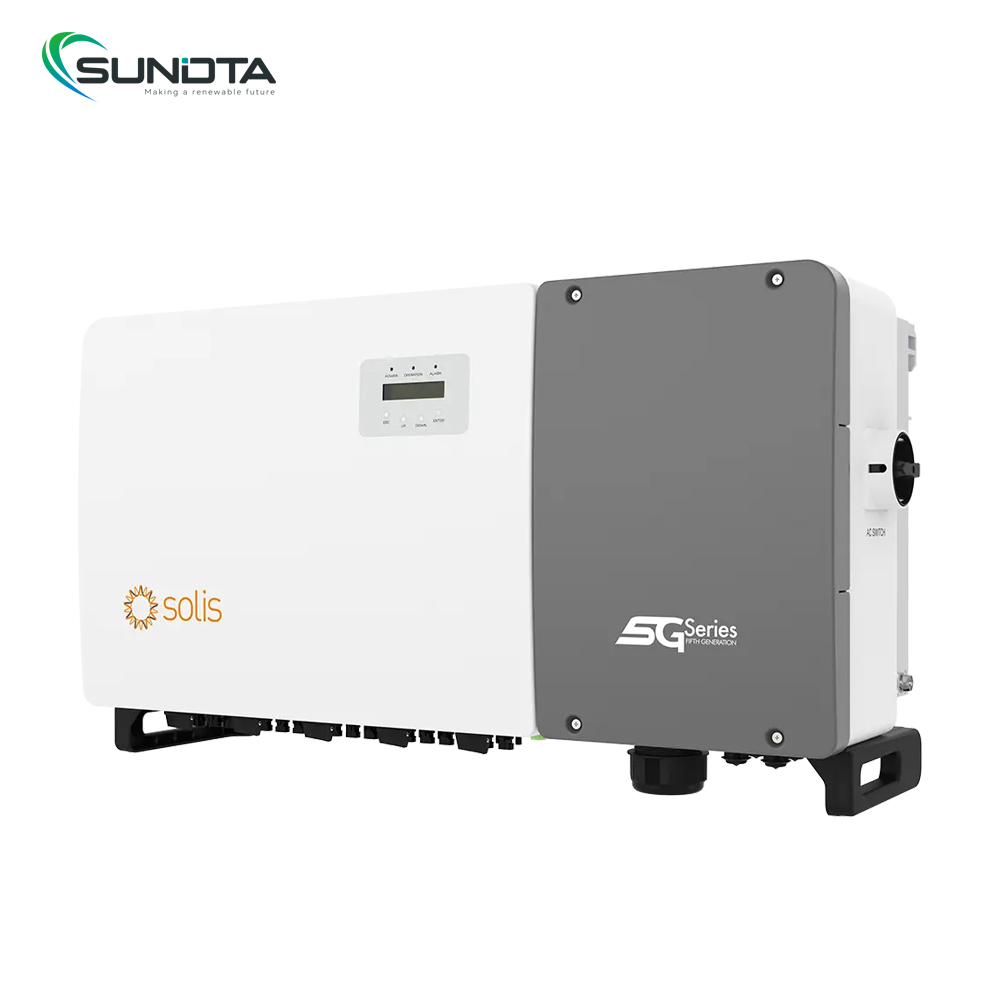

80KW Solis Three Phase Grid-Tied Inverter

80KW Solis Three Phase Grid-Tied Inverter

80kW three-phase series string inverter adopt 9 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Max. 16A per string, 150% DC overloading capacity，remote and local intelligent IV scan function.

Model:
S5-GC80
Output Voltage:
480V
Max Output power:
125Kw
PV Input Voltage:
600V/720V
Weight:
85Kg
Dimension:
41.9 x 22.3 x 13.6 in

Inquiry now

Product Details

80kw Solis Three Phase Grid-Tied Inverter

Features:

1. > 150% DC/AC ratio；
2. IP66；
3. DC side supports "Y" connector；
4. Remote firmware upgrade with simple operation；
5. Intelligent string monitoring, smart I-V curve scan；
6. Built-in PID recovery for better module performance (optional)；
7. Night SVG function；
8. 9 MPPTs, max. efficiency 98.7%；
9. Power line communication (PLC) (optional)；
10. AFCI protection, proactively reduces fire risk；
11. Globally recognised branded componentry for longer life；
12. String current up to 16A, perfectly match large current bifacial modules

DATASHEET	S5-GV80K
Models	80K
Input DC
Max.input voltage	1100V
Rated voltage	600V
Start-up voltage	195V
MPPT voltage range	180-1000V
Max.input current	9*32A
Max.short circuit current	9*40A
MPPT number/Max.input strings number	9/18
Output AC
Rated output power	80kW
Max.apparent output power	88kvA
Max.output power	88kW
Rated grid voltage	3/E/PE,220V/380V,230V/400V
Rated grid output frequency	50Hz/60Hz
Rated grid output current	121.6A/115.5A
Max.output current	137.7A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Effiency
Max.effiency	98.7%
EU effiency	98.3%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Surge protection	DC Type II / AC Type II
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Strings monitoring	Yes
I/V Curve scanning	Yes
Integrated AFCI 2.0	Optional
Integrated PID recovery	Optional
Integrated DC switch	Yes

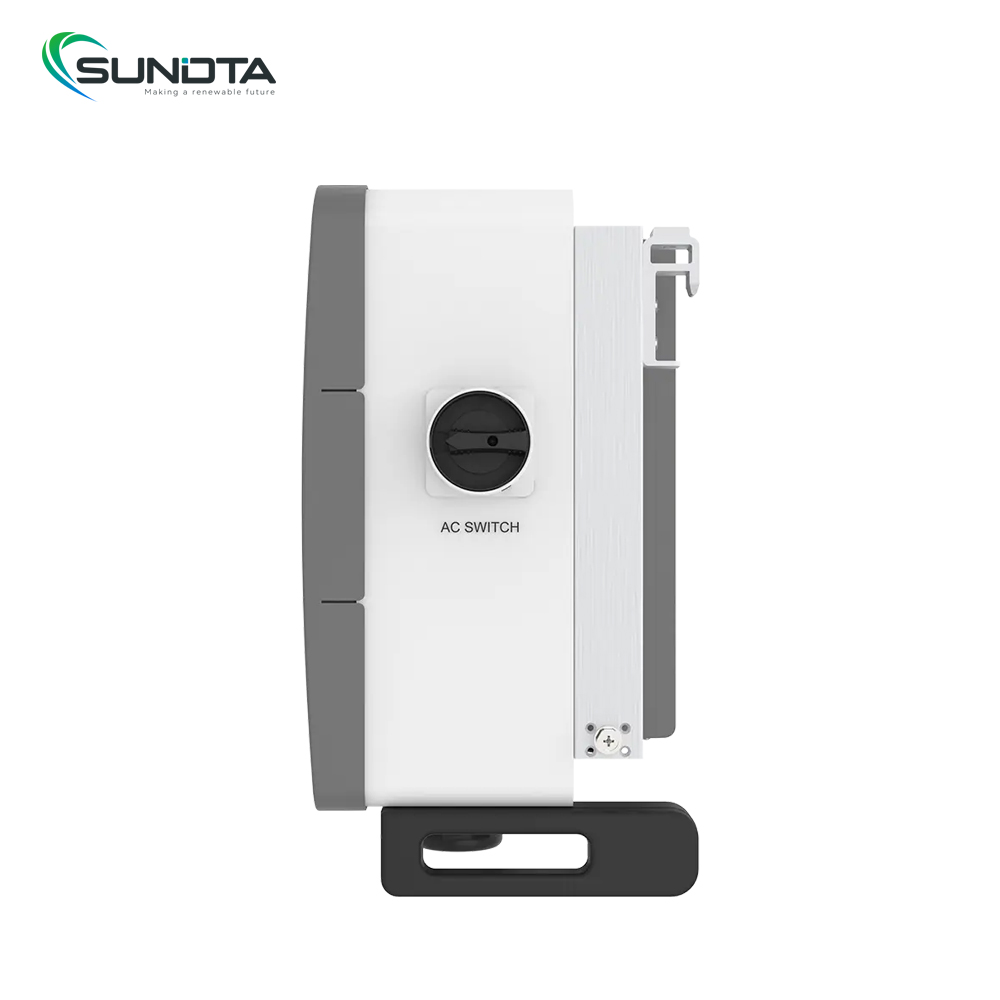

Integrated AC switch	Optional
General Data
Dimension(WHD)	1050 × 567 × 314.5 mm (with AC switch)
Weight	85 kg
Topology	Transformerless
Self-consumption (night)	< 2 W
Operating ambient temperature range	-30 ~ +60°C
Relative humidity	100%
Ingress protection	IP66

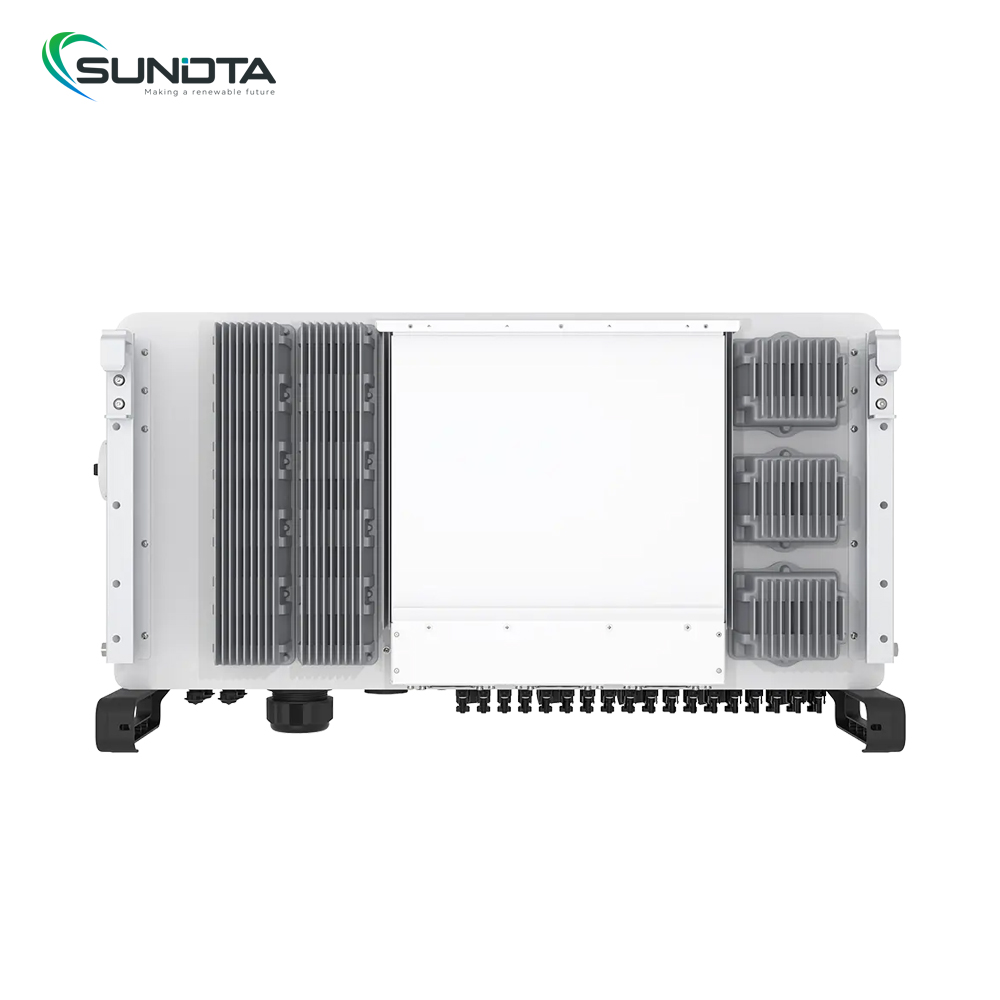

Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105/VDE-AR-N 4110/VDE V 0124, EN 50549-1,
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Features

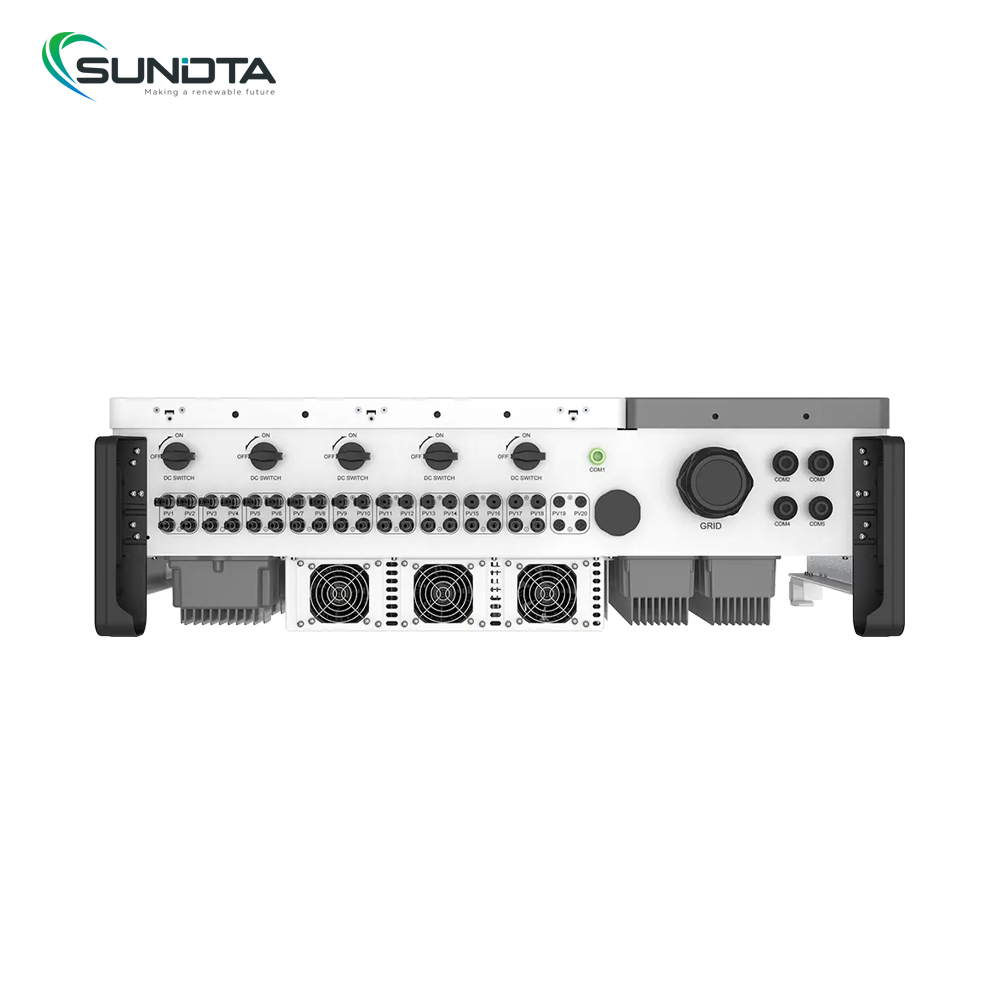

DC connection	MC4 connector
AC connection	OT terminal (max. 185 mm²)
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS, PLC
