Growatt 10kw on grid solar inverter

Growatt 10kw on grid solar inverter

Growatt, on grid inverter, max effiency 98.7%, wholesale suppliers price. All in one hybrid inverter All in one hybrid inverter

Model:
Growatt MOD 10KTL3-X
Output Voltage:
400Vac 3Phases 50Hz
Max Output power:
11000VA
PV Input Voltage:
1100V
Weight:
14kg
Dimension:
425*387*178mm(L/W/H)
Display:
OLED+LED/WIFI+APP
Certification:
CE, VDE0126, EN50549, IEC62116, IEC61727, IEC 60068, IEC 61683, G98/G99, G100, AS4777
Warranty:
5 Years

Inquiry now

Product Details

10kw off grid inverter

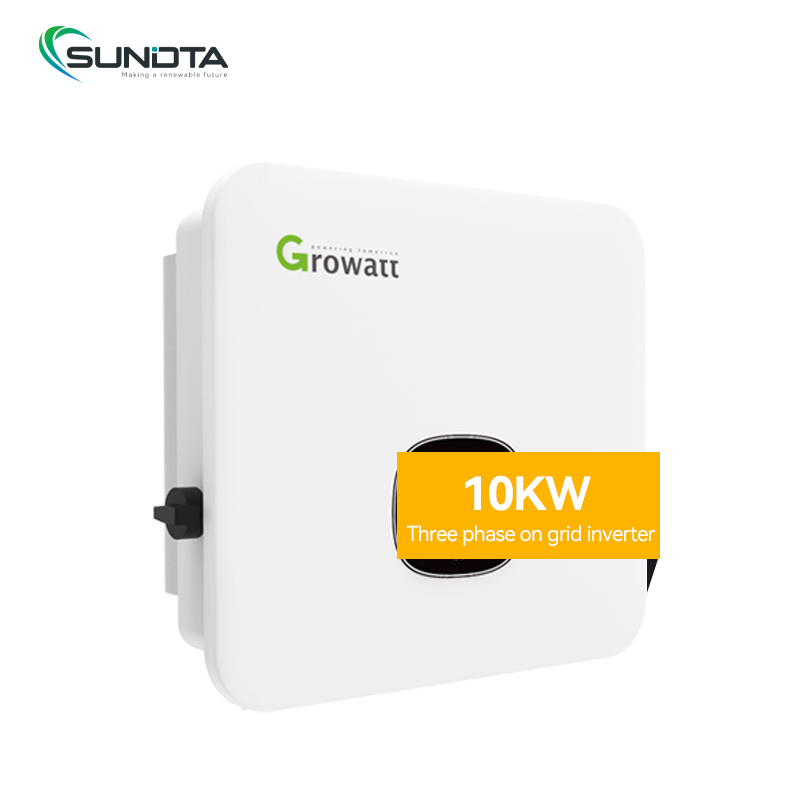

Growatt 10kw on grid solar inverter

On Grid solar inverter Key Features:

Max.efficiency 98.7% 40% compact andlighter Dual MPP trackers

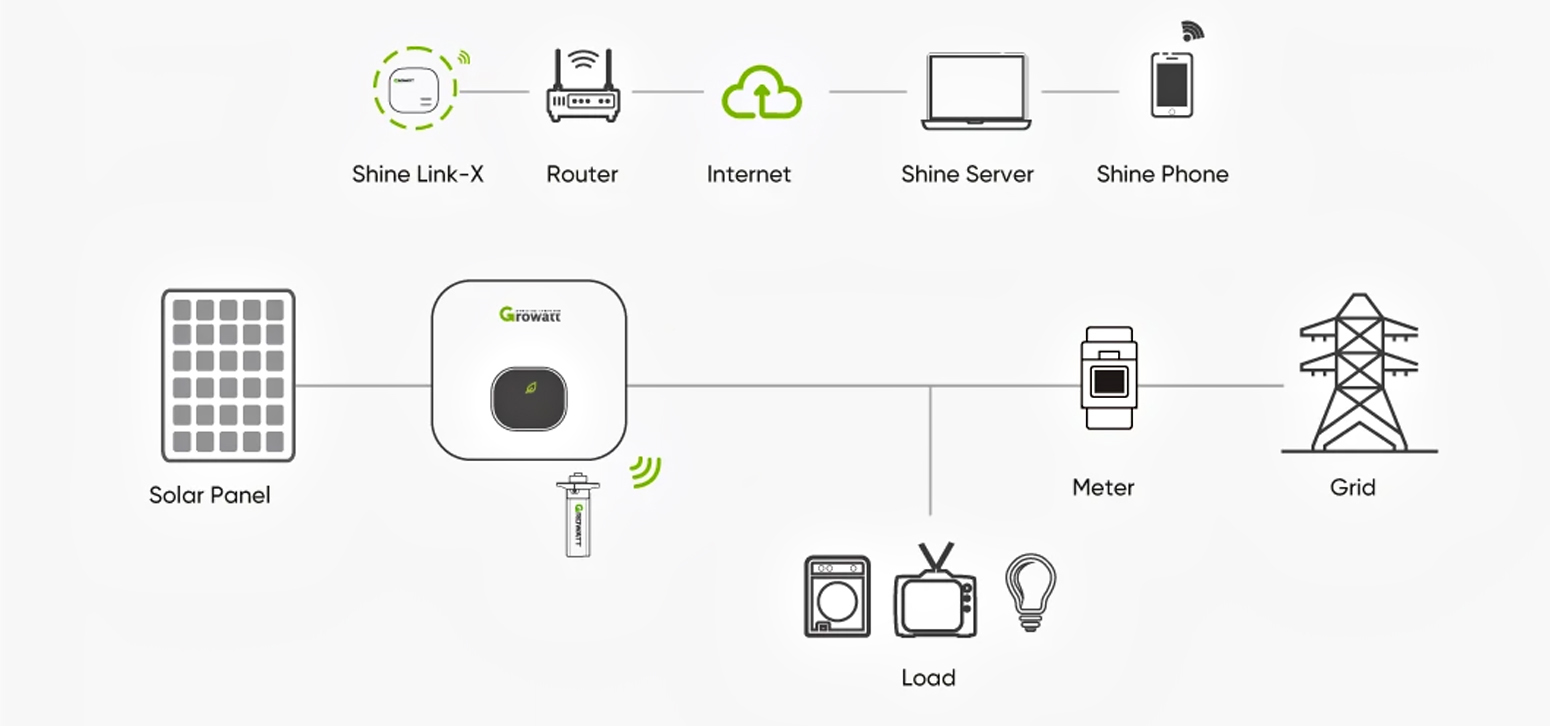

Supports export control Touch key and OLED display Type lI SPD on AC and DC side

Data storage up to 25 years DC side 2in 1 connection enabled

Datasheet	MOD 10KTL3-X	MOD 11KTL3-X	MOD 12KTL3-X	MOD 13KTL3-X	MOD 15KTL3-X
Input data ( DC )
Max. recommended PV power( for module STC )	15000W	16500W	18000W	19500W	22500W
Max DC voltage	1100V
Start Voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of Mpp trackers	2
No. of PV strings per MPP tracker	1	1	1/2	1/2	1/2
Max. input current per MPPT tracker	13A	13A	13/26A	13/26A	13/26A
Max. short circuit current per MPPT	16A	16A	16/32A	16/32A	16/32A
Output data ( AC )
Ac nominal power	10000W	11000W	12000W	13000W	15000W
Max. AC apparent power	11000VA*	12100VA*	13200VA*	14300VA*	16500VA*
Nominal AC voltage(range* )	220V/380V,230V/400V(340-440V)
AC grid frequency (range*)	50/60Hz(45-55Hz/55-65Hz
Max. output current	16.7A	18.3A	20A	21.7A	25A
Adijustable power factor	0.8leading...0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX.efficiency	98.6%
European efficiency	98.1%	98.1%	98.2%	98.2%	98.2%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	Yes
DC Switch	Yes
AC/DC surae protection	Typell/Type lI
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protectior	Yes
Residual-current monitoring unit	Yes
String fault monitoring	Yes
AFCl protection	Optional
General data
Dimensions (W/H/D)	425/387/178mm
Weigint	14kg	14kg	16kg	16kg	16kg
Operating temperature range	-25℃
Nightfime power consumplion	<1W
Topology	Transfomeless
Cooling	Natural convection
Protection dearee	IP66
Relative humidity	0~100%
Alitude	4000m
DC connecltion	H4/MC4(Opfional]
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces:USB/RS485/WIFI/GPRS/LAN/RF	yes/yes/Optiona/Optiona/Optfiona/Opfional
Warranty 5/10 years	Yes/Optional
