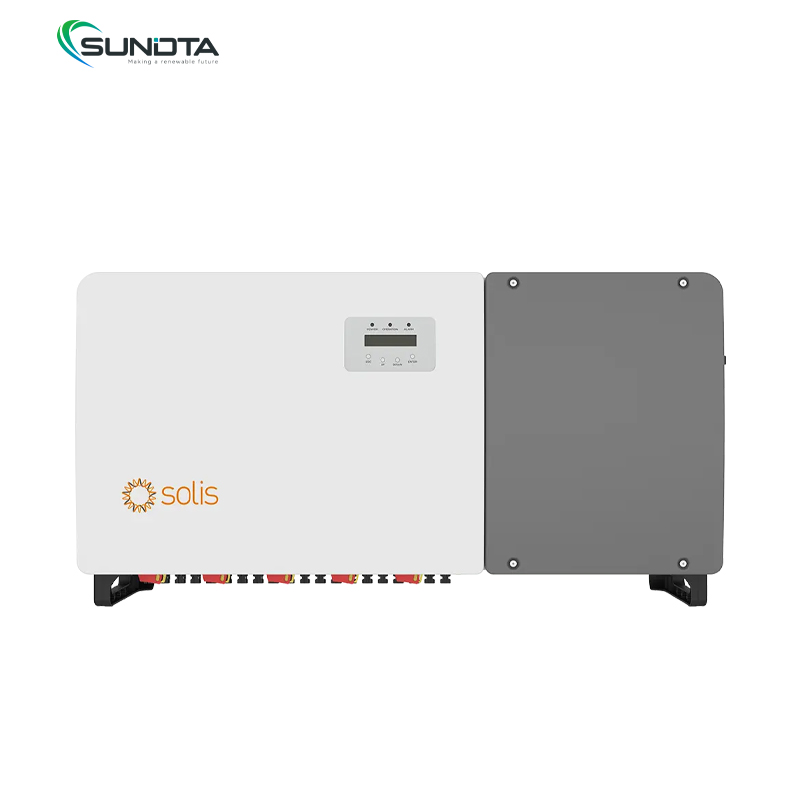

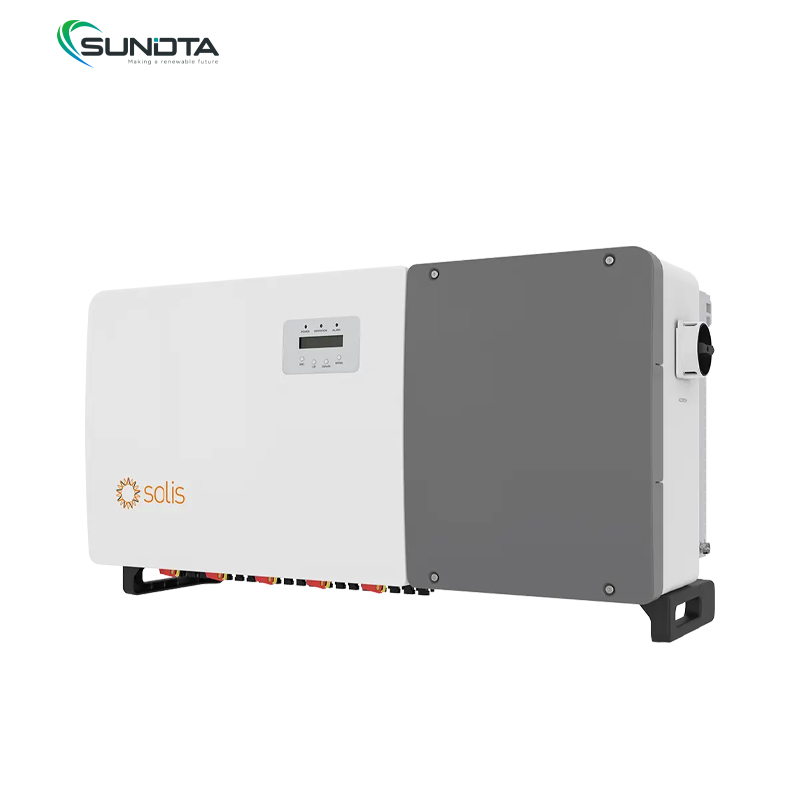

Solis Three Phase Grid-Tied Inverter

Solis S5-GC(75-125)K-US three-phase string inverters are ideal for commercial rooftop/ground-mount projects, supporting 600V/1000VDC arrays with high input current for large PV modules. Wide voltage range enhances yield, while optimized ports reduce cabling costs. Simplified installation, PVRSS/UL3741 certified, and globally top-rated for reliability.

Model:
S5-GC(75-125)K-US
Output Voltage:
480V
Max Output power:
125Kw
PV Input Voltage:
600V/720V
Weight:
85Kg
Dimension:
41.9 x 22.3 x 13.6 in

Inquiry now

Product Details

Solis Three Phase Grid-Tied Inverter

S5-GC(75-125)K-US string inverters are suitable for three-phase commercial rooftop or ground mount projects and work efficiently with 600V or 1000VDC arrays. Solis string inverters have high input currents, which enable support of larger PV modules without compatibility issues, better supporting power density and flexibility. Wider operating voltages support operation for longer periods throughout the day, resulting in better system yields. Commissioning, operations and management are simplified through state-of-the-art design and monitoring. Optimized DC and AC connect ports reduce the cost of system cables. Tested to the harshest conditions, Solis’ success in the market and global top ratings are largely in part due to the quality we strive for. This product line is also certified PVRSS and UL3741 compliant, meaning that you can realize cost and time savings by supporting simpler installs.

Features:

1. 8/9/10 MPPTs, max. efficiency 98.8% (CEC efficiency 98.3%);
2. Type 4X, C5 Anti-Corrosion Level;
3. DC side supports "Y" connector;
4. Intelligent string monitoring, smart I-V curve scan;
5. Integrated nighttime PID recovery for optimal module performance;
6. Remote firmware upgrade with simple operation(Requires the user to use Solis monitoring;
7. External signal control function;
8. String current up to 16A for higher capacity modules;
9. AFCI protection, proactively reduces fire risk;
10. High quality components from globally recognized suppliersEconomic.

Datasheet	S5-GC(75-125)K-US
Models	75K	80K	90K	100K	125K
Input
Max. input voltage	1000 V
Rated voltage	600 V				720V
Start-up voltage	195 V
MPPT voltage range	180 - 1000 V
Max. input current	8 × 32 A	9 × 32 A	10 × 32 A
Max. short circuit current	8 × 50 A	9 × 50 A	10 × 50 A
MPPT number / Max. input strings number	8 / 16	9 / 18	10 / 20
Output
Rated output power	75 kW	80 kW	90 kW	100 kW	125 kW75 kW
Max. apparent output power	75 kVA	80 kVA	90 kVA	100 kVA	125 kVA
Max. output power	75 kW	80 kW	90 kW	100 kW	125 kW
Rated grid voltage	3Ф/PE, 480 V
Rated grid frequency	60 Hz
Max. output current	90.2 A	96.2 A	108.3 A	120.3 A	150.4 A
Power Factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	98.7%		98.8%
CEC efficiency	98.3%		98.2%
Protection
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Ground fault monitoring	Yes
Anti-islanding protection	Yes
Strings monitoring	Yes
I/V Curve scanning	Yes
Rapid shutdown	Yes
Integrated AFCI	Yes
Integrated PID recovery	Yes

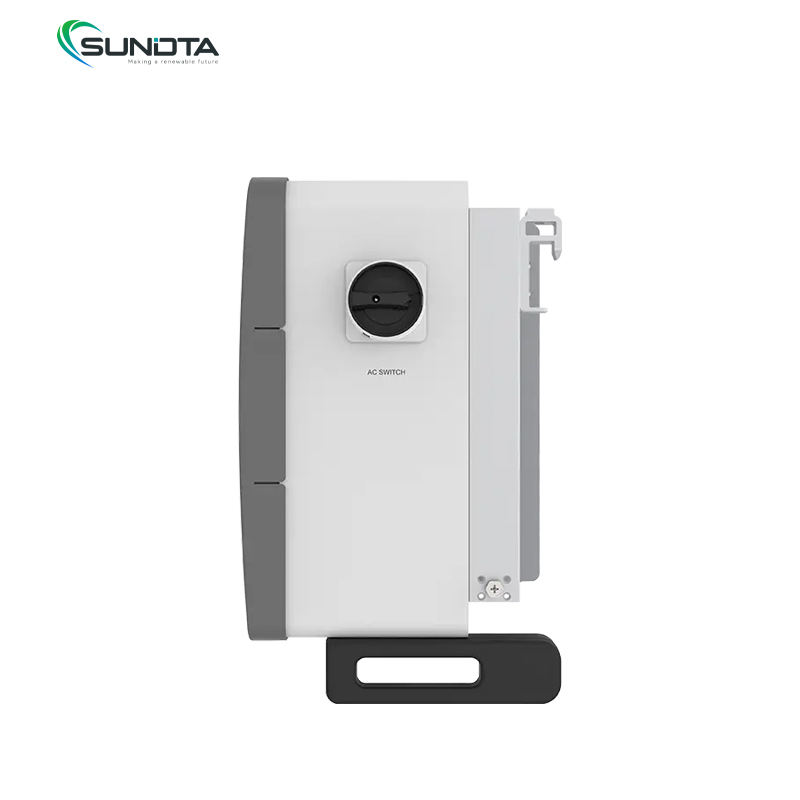

AC switch	Yes
General Data
Dimensions (W × H × D)	41.9 × 22.3 × 13.6 in (1065 × 567 × 344.5 mm)
Weight	187 lbs (85 kgs)				200 lbs (91 kgs)
Topology	Transformerless
Self-consumption (night)	< 2 W
Relative humidity	0 - 100%
Operating ambient temperature range	-22°F to 140°F (-30°C to 60°C )
Storage environment	-40°F to 176°F (-40°C to 80°C)
Ingress protection	TYPE 4X

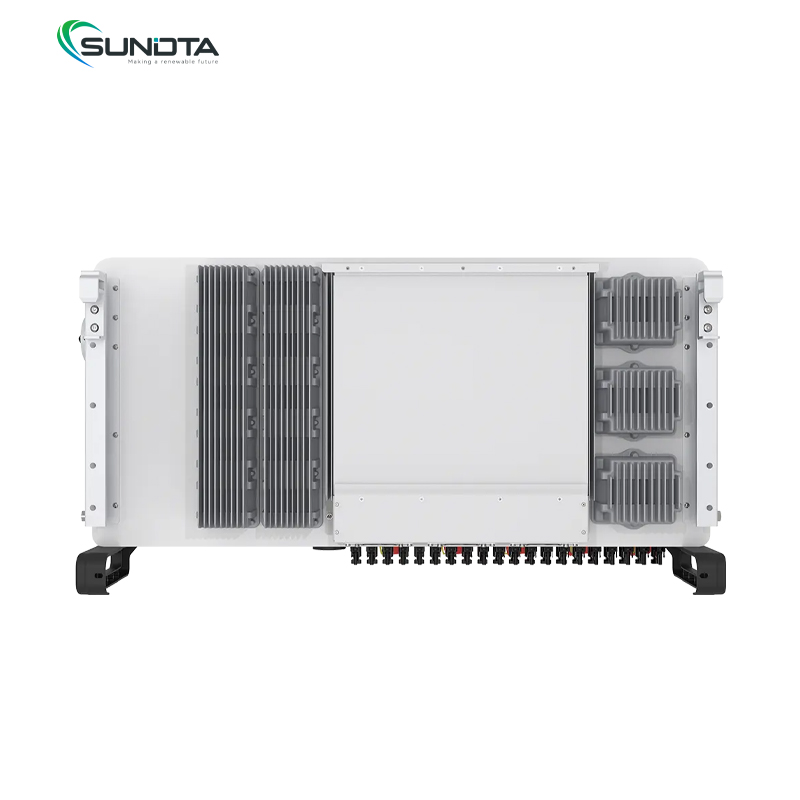

Cooling concept	Intelligent fan-cooling
Max. operation altitude	13,120 ft (4000 m)
Compliance	UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB
Features

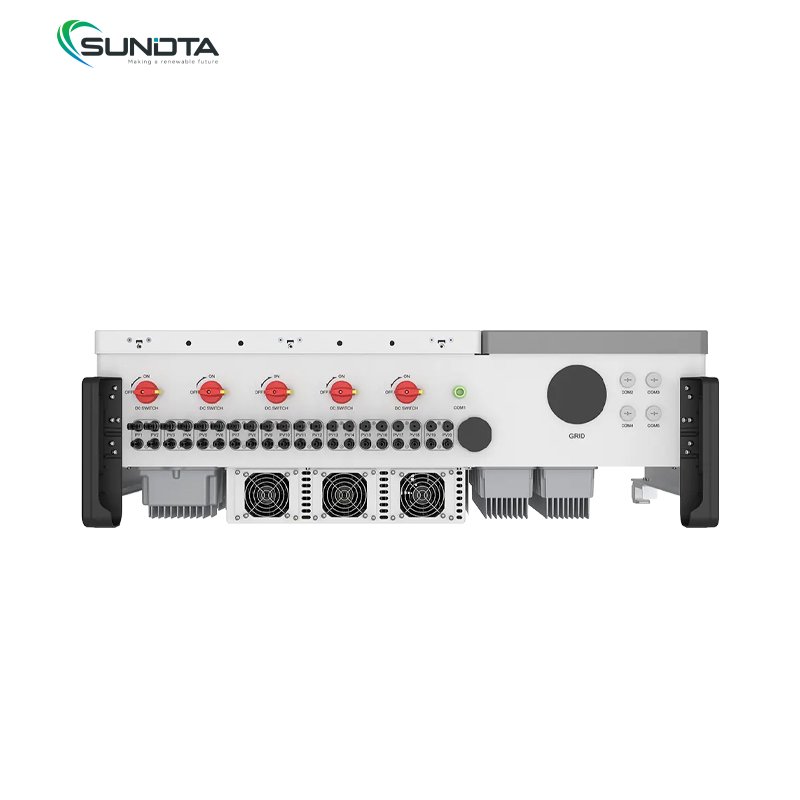

DC connection	MC4 connector
AC connection	OT Terminal (max. 350 MCM)
Display	LCD
Communication	RS485, Optional: Wi-Fi, Cellular
