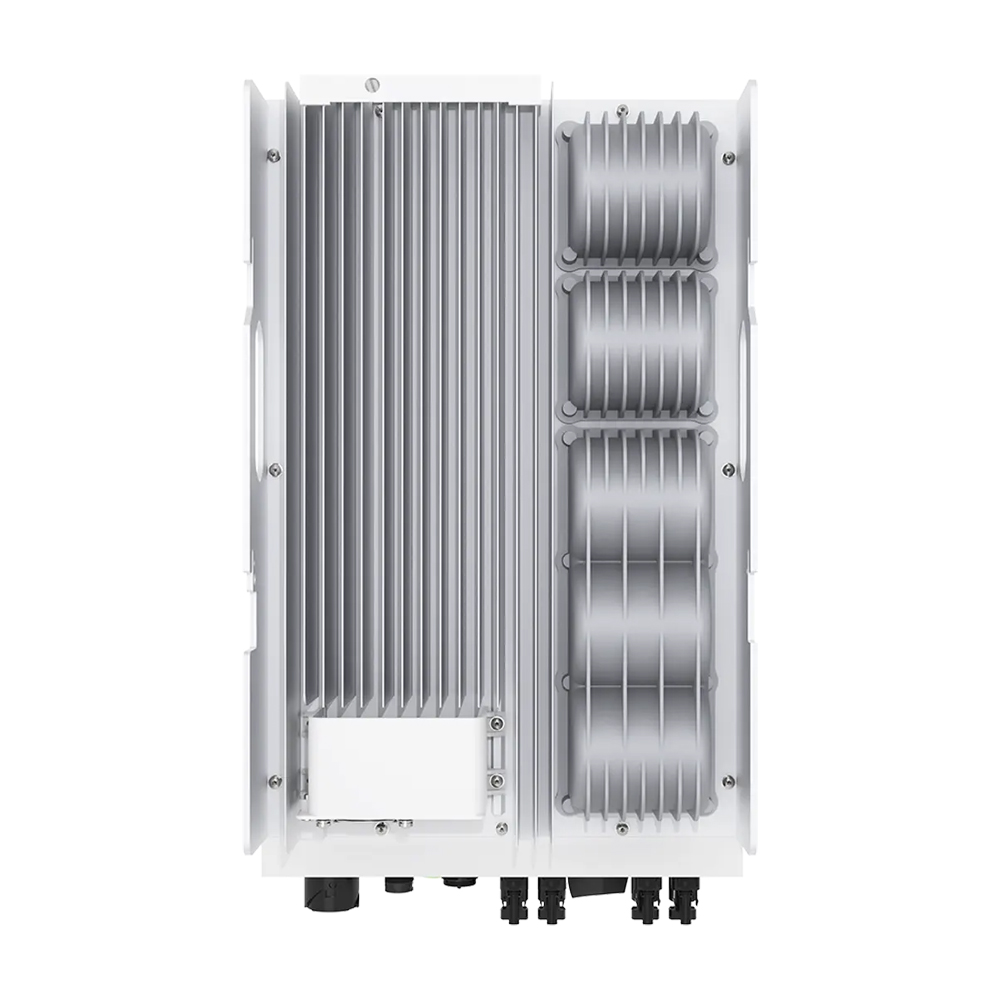

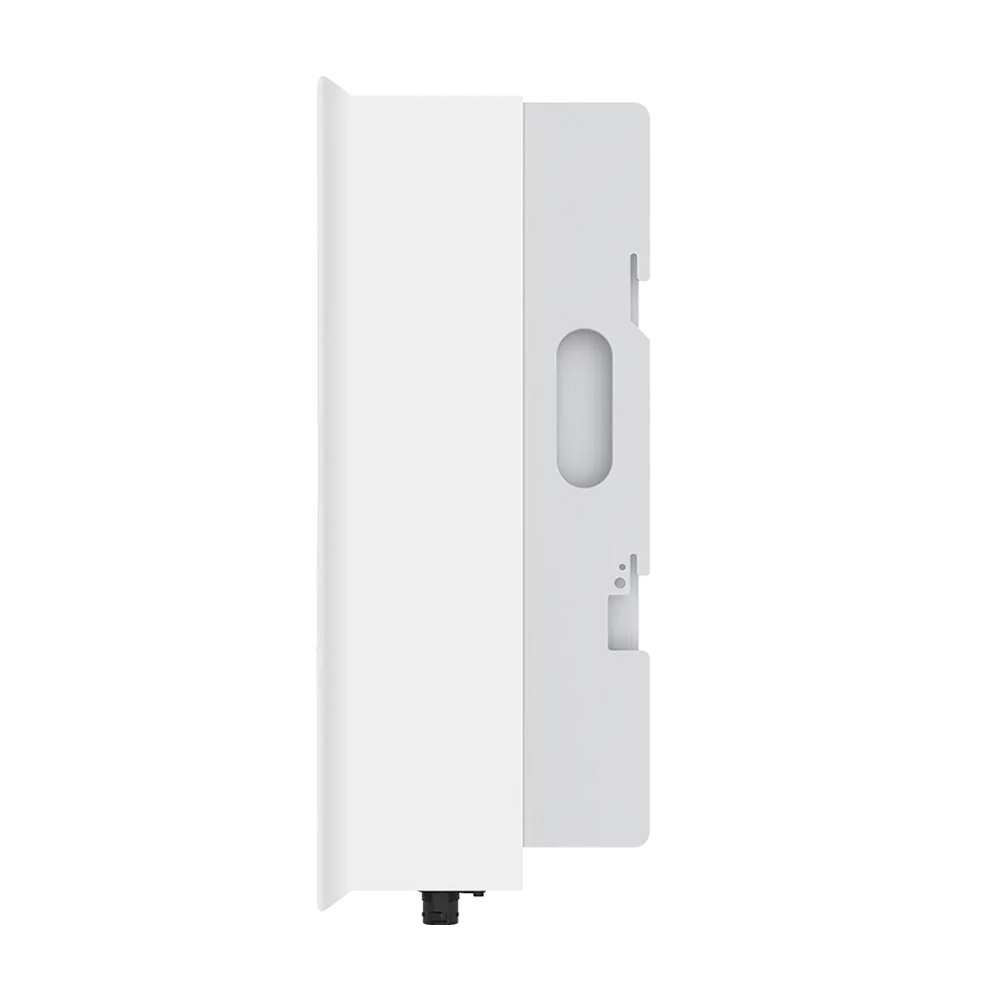

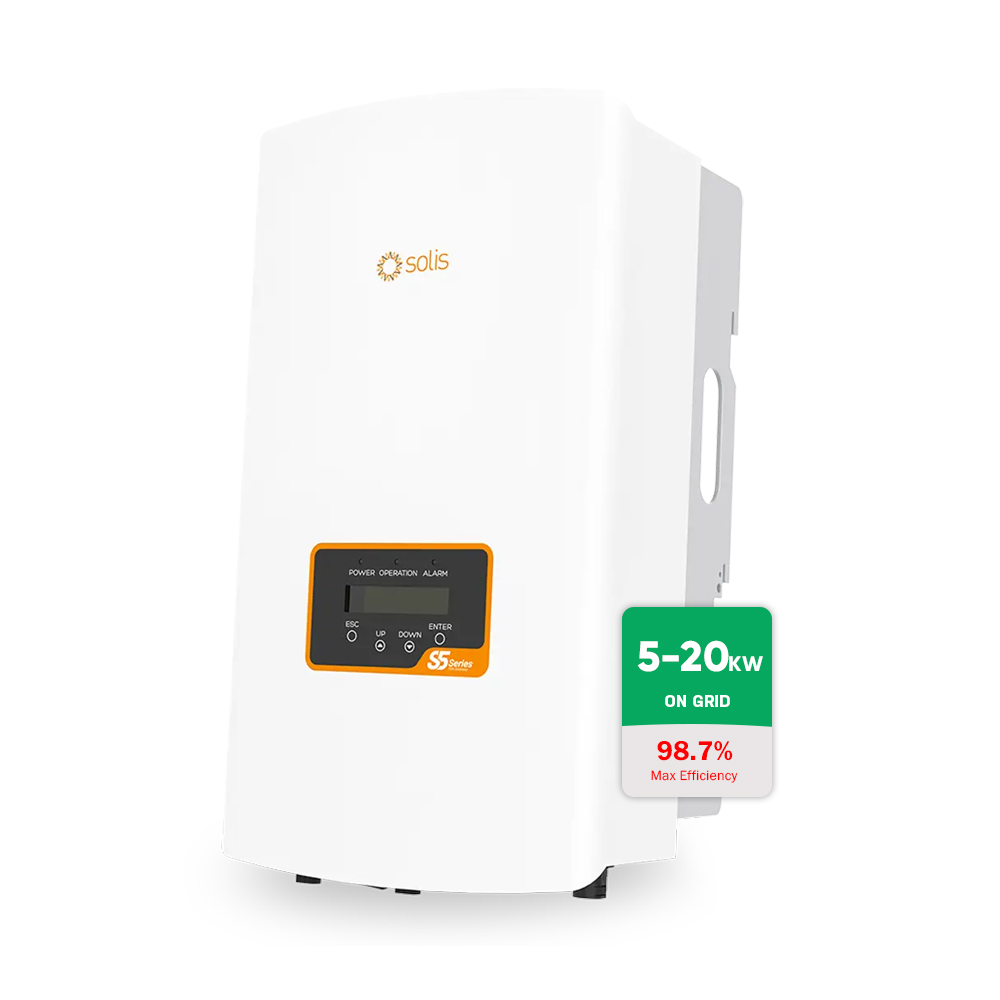

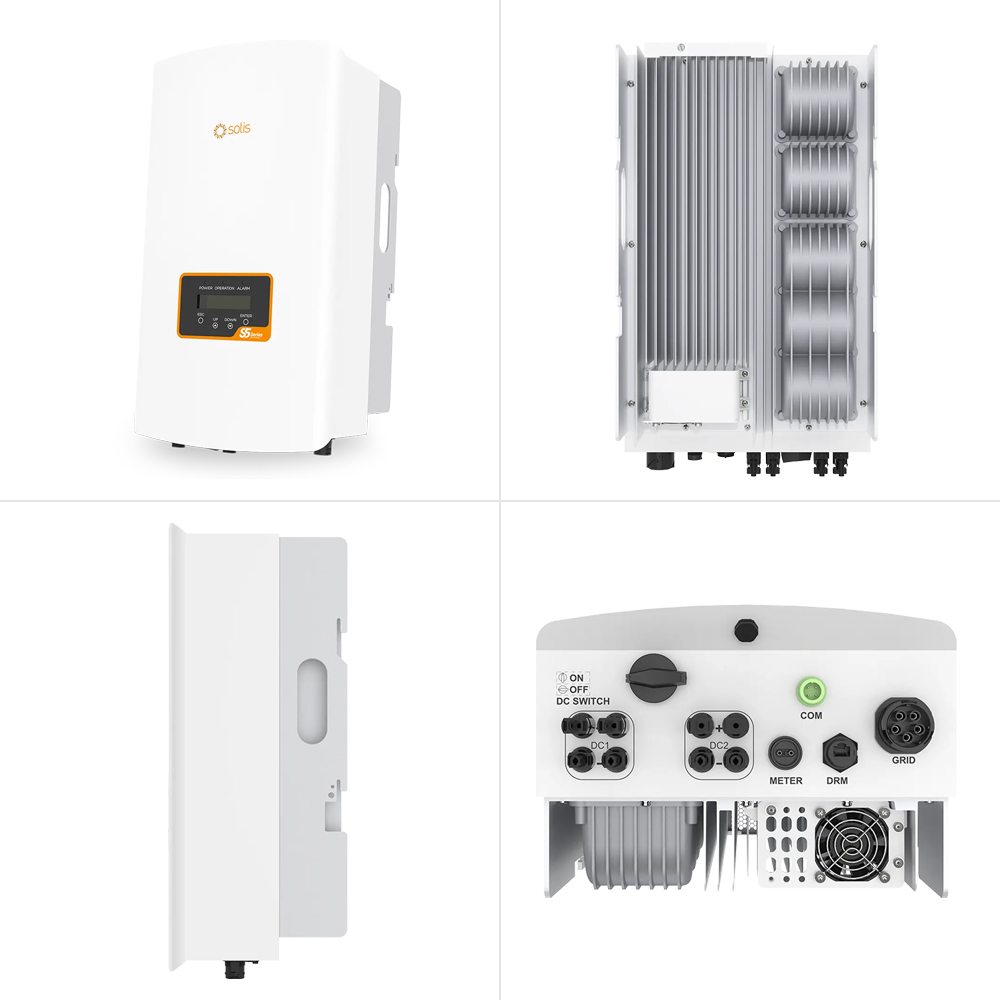

Solis 5-20KW Three Phase Grid Tied Inverter

solis three phase on grid solar inverter

Solis 5-20KW Three Phase Grid Tied Inverter

GR3P(5-25)K three-phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv stations. Smaller size, higher efficiency, a variety of power models available for selection. Adopt two MPPT access, more flexible and efficient.

Item NO.:
S5-GR3P(5-20)K
Model:
S5-GR3P(5-20)K
Output Voltage:
3/N/PE, 220 V / 380 V, 230 V / 400 V
Max Output power:
5-20kw
PV Input Voltage:
600 V
Weight:
16.9~20.8kg
Dimension:
310 × 563 × 219 mm
Display:
LCD

Inquiry now

Product Details

Solis 5-20KW Three Phase Grid Tied Inverter

Leading Features:

1. IP66

2. Max. efficiency 98.7%

3. > 150% DC/AC ratio

4. Adaptive weak grid

5. Supports export power control

6. 24-hour load consumption monitoring

7. AFCI protection, proactively reduces fire risk

DATASHEET	S5-GR3P(5-20)K
Models	5K	6K	8K	10K	12K	13K	15K	17K	20K
Input DC
Recommended max. PV power	7.5 kW	9 kW	12 kW	15 kW	18 kW	19.5 kW	22.5 kW	25.5 kW	30 kW
Max. input voltage	1100 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	160 - 1000 V
Max. input current	16 A / 16 A				32 A / 32 A
Max. short circuit current	20 A / 20 A				40 A / 40 A
MPPT number / Max. input strings number	2 / 2				2 / 4
Output AC
Rated output power	5 kW	6 kW	8 kW	10 kW	12 kW	13 kW	15 kW	17 kW	20 kW
Max. apparent output power	5.5 kVA	6.6 kVA	8.8 kVA	11 kVA	13.2 kVA	14.3 kVA	16.5 kVA	18.7 kVA	22 kVA
Max. output power	5.5 kW	6.6 kW	8.8 kW	11 kW	13.2 kW	14.3 kW	16.5 kW	18.7 kW	22 kW
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	7.6A/7.2A	9.1A/8.7A	12.2A/11.5A	15.2A/14.4A	18.2A/17.3A	19.8A/18.8A	22.8A/21.7A	25.8A/24.6A	30.4A/28.9A
Max. output current	7.9 A	9.5 A	12.7 A	15.9 A	19.1 A	20.7 A	23.8 A	27 A	31.8 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 2%
DC injection current	< 0.5% In
Efficiency
Max. efficiency	98.3%		98.3%		98.6%			98.7%
EU efficiency	97.7%		97.9%		98.0%			98.0%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Insulation resistance monitoring	Yes
Residual current detection	Yes
Surge protection	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Multi peak scan	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
General Data
Dimensions (W × H × D)	310 × 563 × 219 mm
Weight	16.9 kg		17.9 kg		19.6 kg			20.8 kg
Topology	Transformerless
Self-consumption (night)	< 1 W
Operating ambient temperature range	- 25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 30 dB(A)				< 60 dB(A)
Cooling concept	Natural cooling				Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	IEC 61683, IEC 60068, IEC 61727, IEC 62116, EN 50530, IS 16169/IS 16221(BIS)
Safety / EMC standard	IEC 62109-1/-2, IEC 61000-6-1/-2/-3/-4
Features
DC connection	MC4 connector
AC connection	Quick connection plug
Display	LCD
Communication	RS485, Optional: S3-WiFi-ST, S3-GRPS-ST
