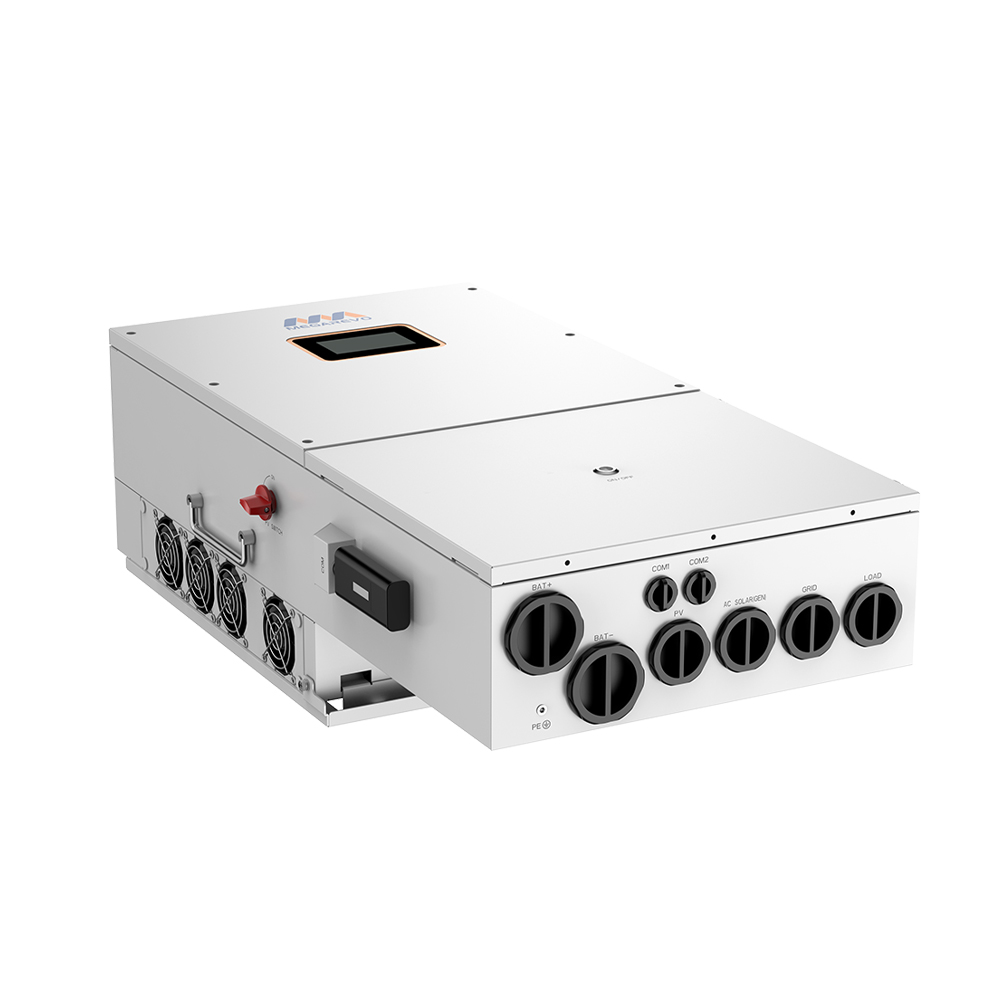

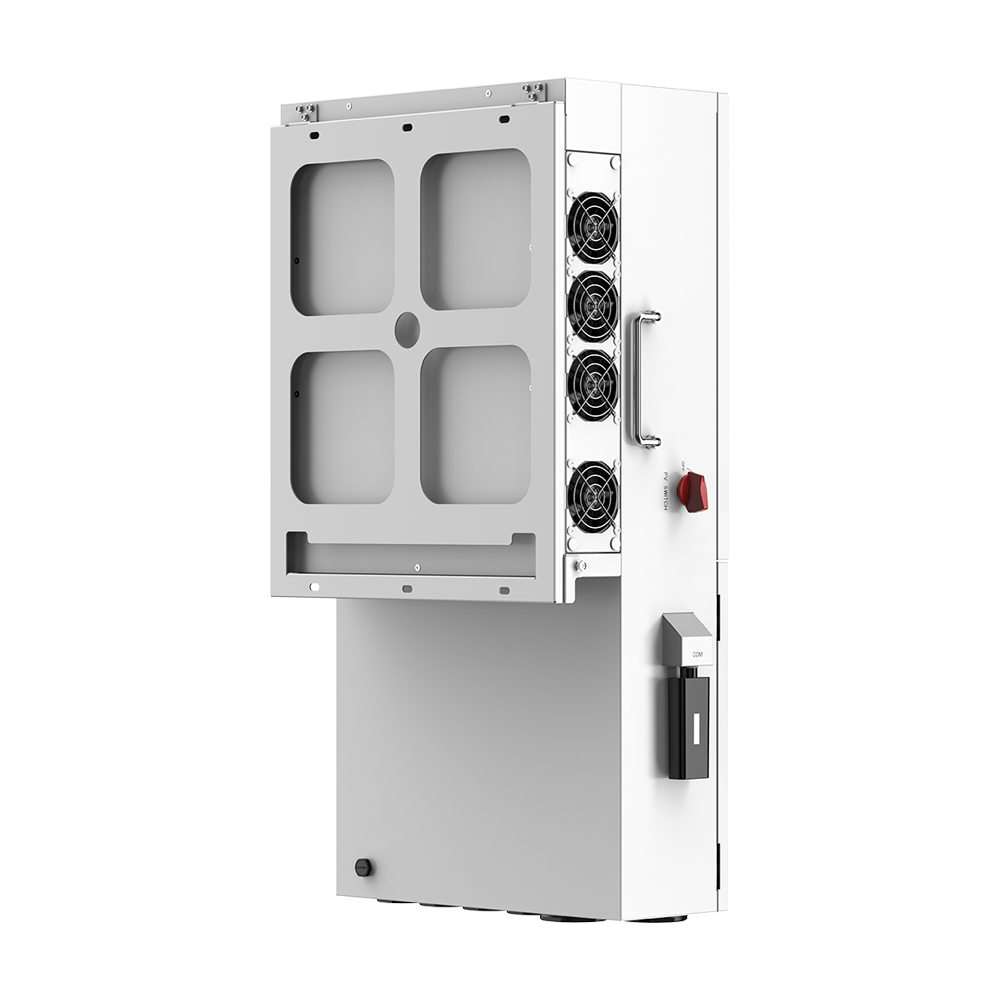

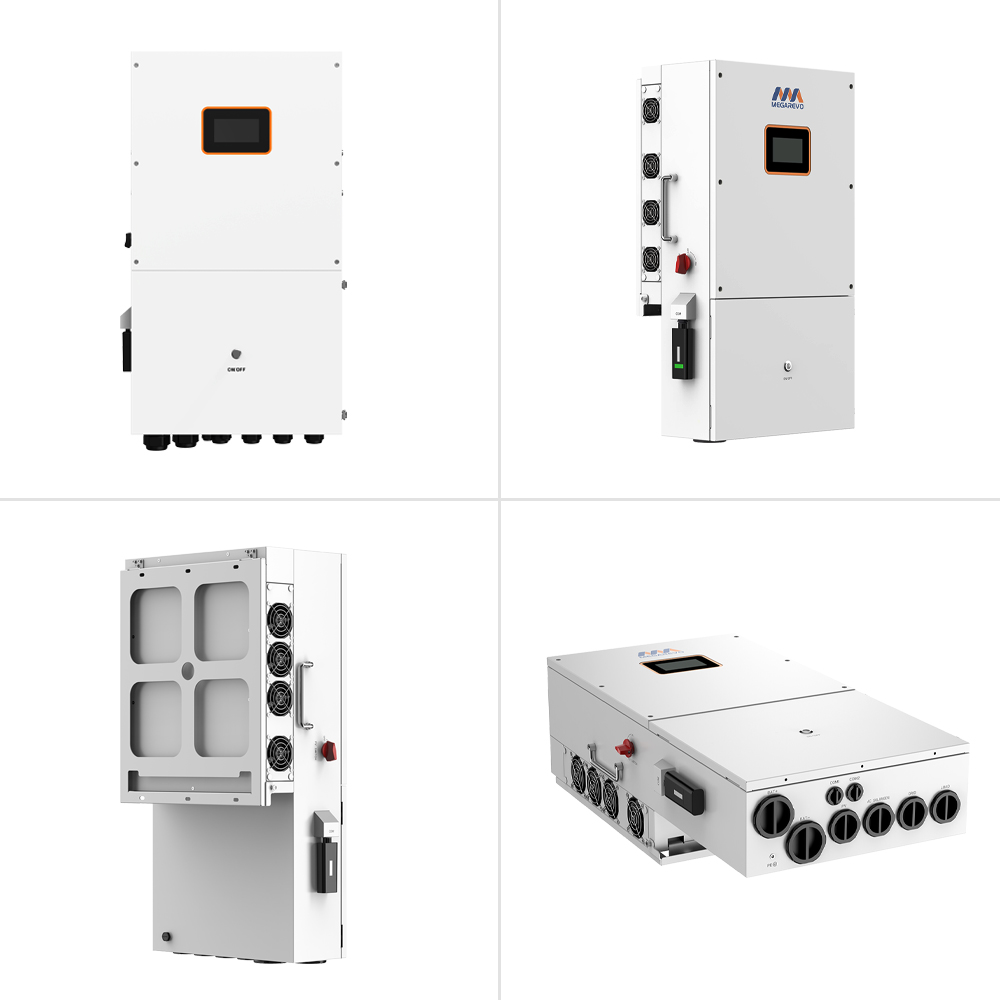

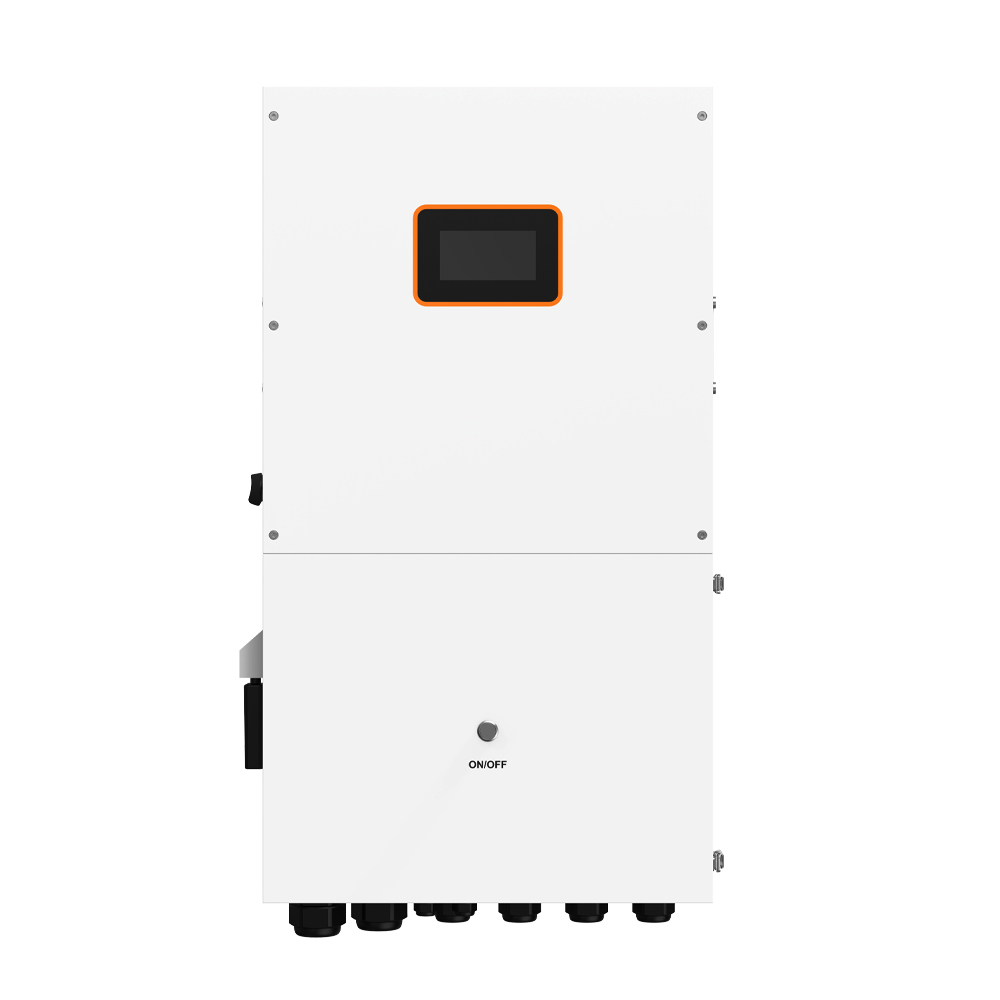

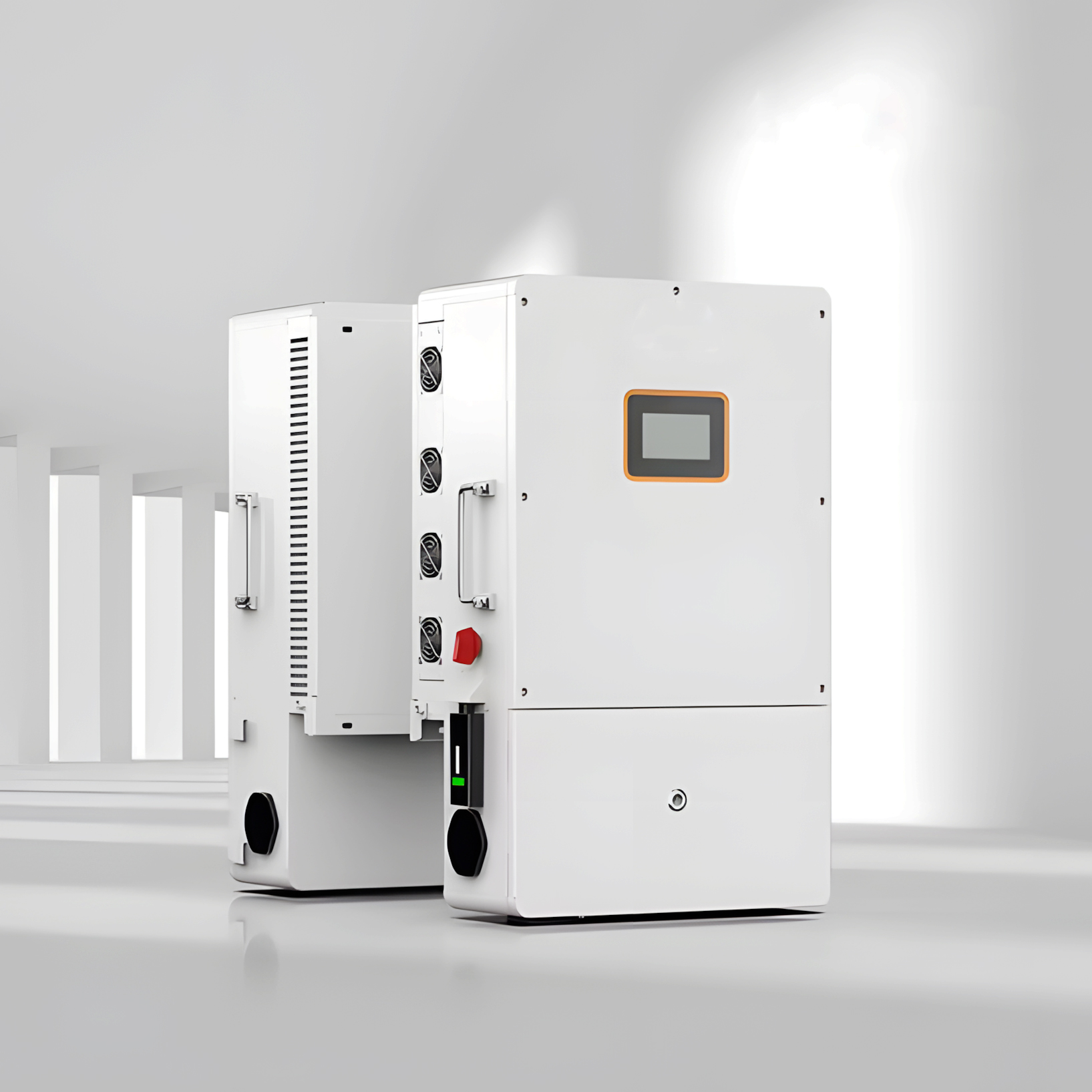

Megarevo Split Phase 18KW 24KW Energy Storage Inverter

Megarevo Split Phase 18KW 24KW Energy Storage Inverter

Megarevo 48V split-phase hybrid inverters for home energy storage deliver up to 10KW, supporting ≤6 parallel units. Integrated smart display enables easy O&M.

Model:
R12KLNA/R16KLNA
Output Voltage:
12KW
Max Output power:
13.2KW
PV Input Voltage:
120V
Battery Voltage:
48V
Weight:
55KG
Dimension:
495 x 900 x 260mm
Warranty:
10Years

Inquiry now

Product Details

Megarevo Split Phase 18KW 24KWEnergy Storage Inverter

The Low-Voltage North American hybrid inverter series is specifically designed for home energy storage, operating at 48V with a split-phase configuration. The Megarevo hybrid inverter 48V can meet power demands of up to 10KW for various home energy storage applications. With support for parallel connection of up to 6 devices, Megarevo 48V split-phase inverters, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.

Features:

1. Support the construction of three-phase systems;
2. 200A pass through;
3. Capable of supporting 100% unbalanced loads;
4. AC solar to retrofit existing solar system(on-grid & off-grid);
5. Support 4-channel MPPT;
6. Grid & generator separately connected, support storing energy from diesel generator

Model	R12KLNA	R16KLNA
PV input data
Max. PV input power (kW)	18	24
Max. PV input voltage (V)	500
Min. PV input voltage (V)	120
Start-up voltage (V)	120
MPPT voltage range (without battery)(V)	120~500
MPPT voltage range@full-load (V)	150~430
Rated PV input voltage (V)	310
No. of MPPT trackers	4
No. of strings per MPPT tracker	1/1/1/1
Max. input current per MPPT (A)	16/16/16/16	20/20/20/20
Max. short-circuit current per MPPT (A)	22/2//22/22/22	25/25/25/25

Battery input data
Battery type	Lithium-ion / Lead-acid
Max. charge / discharge power (kW)	12	13
Battery voltage range (V)	40~58
Rated battery voltage (V)	48
Max. charging / discharging current (A)	250/260	260/280
Rated charge / discharge current (A)	250/260	260/280
Battery charging strategy	Self-adaption to BMS
BMS communication	CAN

AC output data (grid side)
Rated output power (kW)	12	16
Max. apparent output power (kVA)	13.2	16
Rated grid voltage( (V)	110-127/208-240V split phase, 240V single phase
Grid voltage range (V)	240
Rated grid frequency (Hz)	60
Grid frequency range(Hz)	55-65
Rated output current (A)	50	66.7
Max. AC output current (A)	55	73.3
Power factor	0.8leading~0.8lagging
Max. grid passthrough current(A)	200
THDi	<3%
Grid type	2L+N+PE

AC output data (load side)
Rated output power (kW)	12	13
Max. apparent output power (kVA)	13.2	13.2
Rated output voltage (L-N/L1-L2) (V)	120/240
Rated output frequency (Hz)	60
Rated output current (A)	50	54
Max. AC output current (A)	55	55
Peak output power	110%,30s / 120%,10s / 150%,0.02s
Peak output power	<20
THDu	<2%

General data
Ingress protection	IP65 / NEMA 3R
Operating temperature range (℃)	-25~+60
Cooling	FAN cooling
Relative humidity	0-95%
Operating altitude (m)	0~4,000(Derating above 2,000 altitude)
Dimensions WDH (mm)	495 x 900 x 260
Weight (kg)	55
Topology (solar / battery)	Transformerless / Transformer
Noise emission (dB)	48
Display and communication
Display	Touch panel
Communication	RS485, 4G(optional), Wi-Fi
