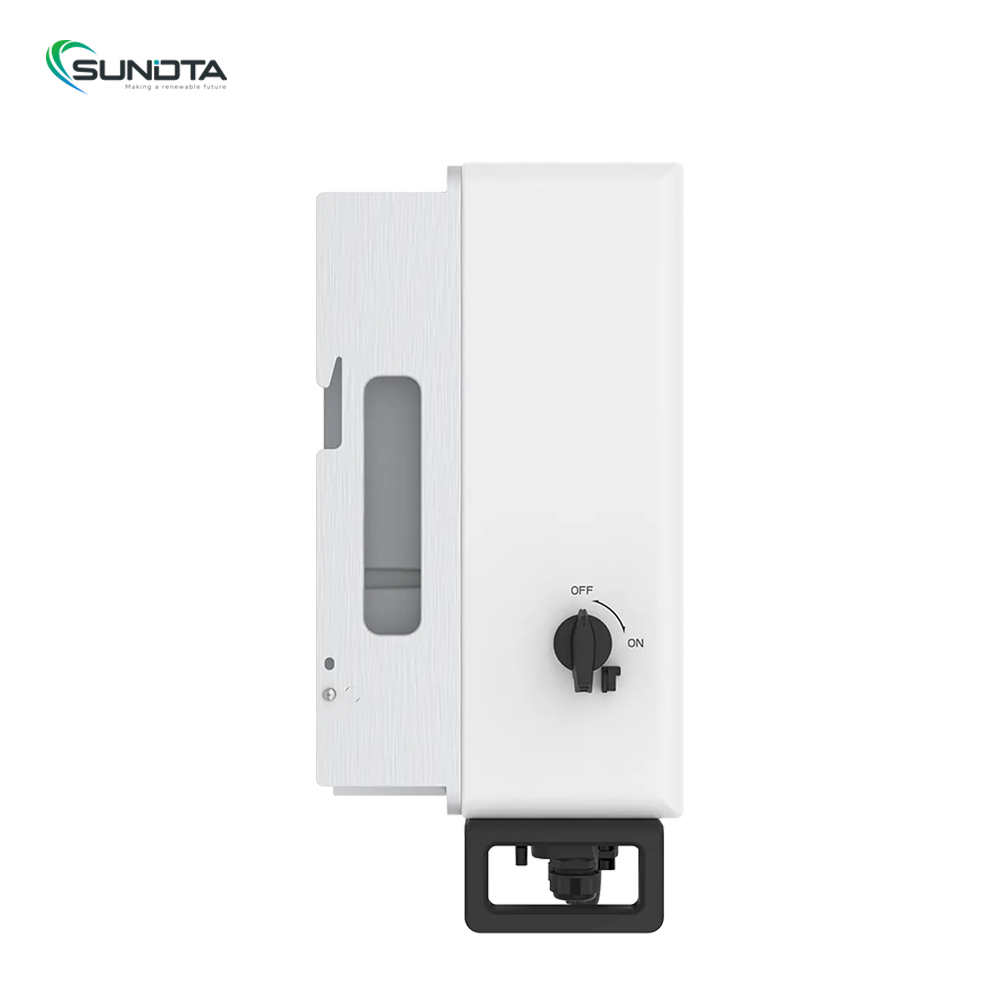

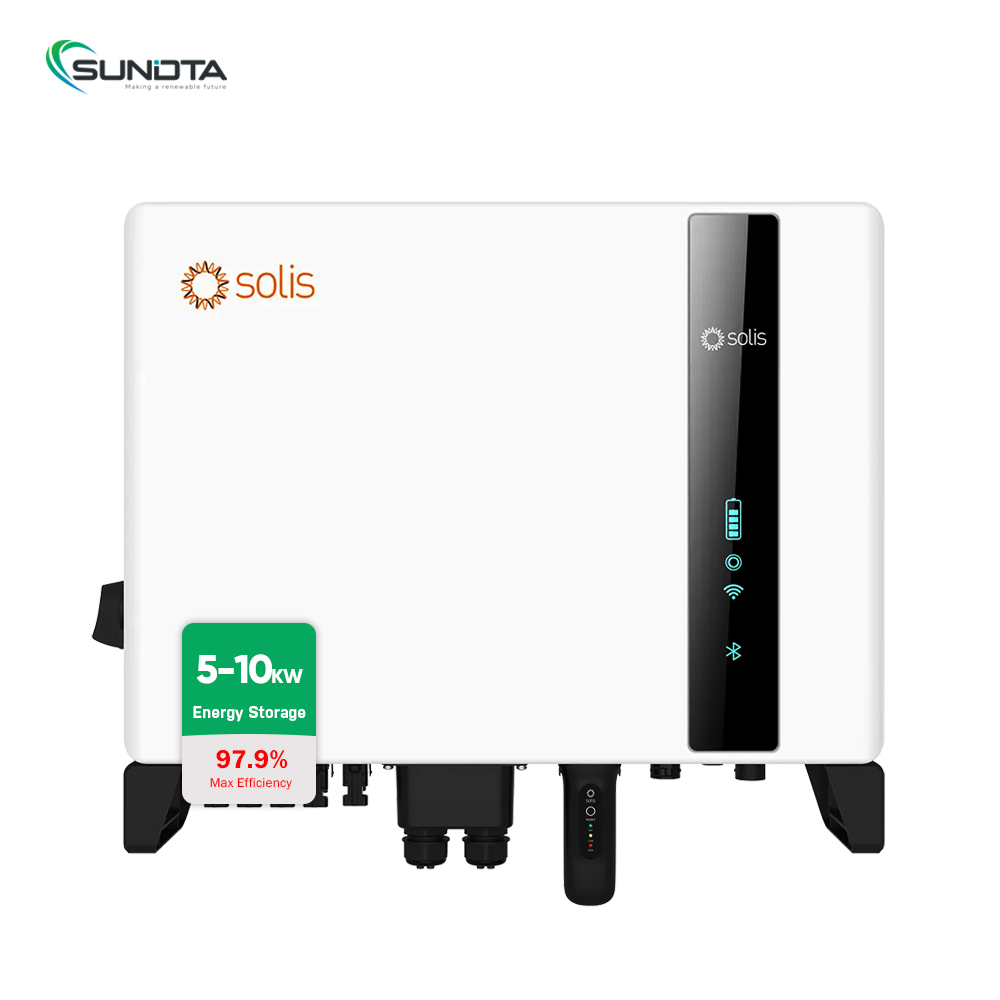

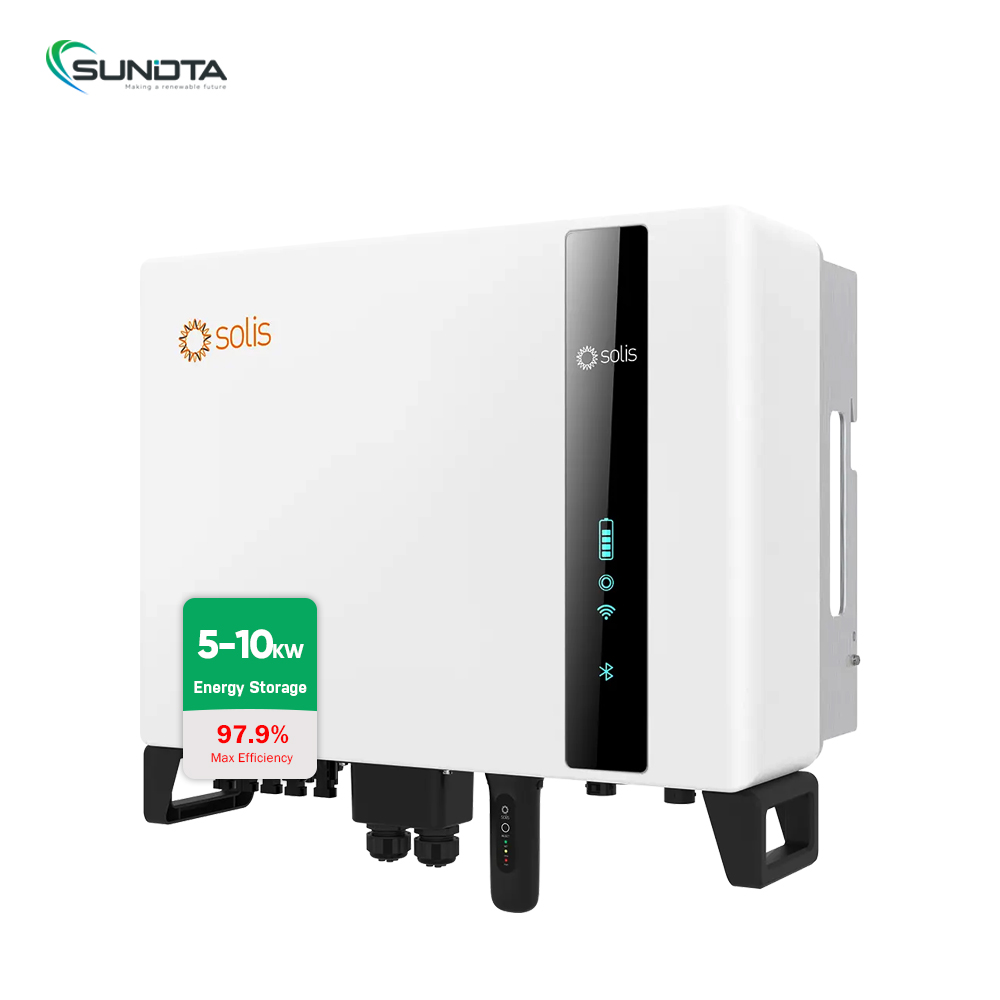

Solis Three Phase 5-10kw energy storage inverter

Solis Three Phase 5-10kw energy storage inverter

S6 Hybrid Inverter connects solar panels & high-voltage batteries, storing daytime solar energy for nighttime use. Eliminate grid dependence—zero grid costs

Item NO.:
S6-EH3P(5-10)K-H-EU
Model:
S6-EH3P(5-10)K-H-EU
Output Voltage:
3/N/PE, 380 V / 400 V
Max Output power:
10kw
PV Input Voltage:
600V
Battery Voltage:
120 - 600 V
Weight:
27.6~60.2kg
Dimension:
600 × 500 × 210 mm
Display:
LED indicator

Inquiry now

Product Details

Solis Three Phase 5-10kw energy storage inverter

S6 Solar inverter that can connect solar panels and a high voltage battery. This inverter will capture the solar during the day and provide power to your home loads and charge the battery. At night it will use the battery to satisfy your home loads. This will prevent you from using any power from the grid and save you from ever paying them a cent! Fight back with the new S6 solar hybrid inverter from Solis.

Leading Features:

Smart Energy Management

1. AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs

2. Seamless integration with VPP and EMS platforms for enhanced energy optimization

High Performance

1. Switching time < 10ms

2. 160% PV input capacity to maximize solar energy utilization

3. Supports three-phase unbalanced output, allowing up to 50% of rated inverter power per phase (1)

Flexible & Scalable

1. Compatible with mainstream lithium batteries

2. Easily expand system capacity using parallel connections and AC coupling

Simple & Fast Configuration

1. Bluetooth app support for quick and easy setup

DATASHEET	S6-EH3P(5-10)K-H-EU
Models	5K	6K	8K	10K
Input DC (PV side)
Recommended max. PV array size	10 kW	12 kW	16 kW	12 kW
Max. usable PV input power	8 kW	9.6 kW	12.8 kW	16 kW
Max. input voltage	1000 V
Rated voltage	600 V
MPPT voltage range	200 - 850 V
Start-up voltage	160 V
Max. input current	16 A / 16 A / 16 A		4 × 16 A
Max. short circuit current	24 A / 24 A / 24 A		4 × 24 A
MPPT number / Max. input strings number	3 / 3		4 / 4
Battery
Battery type	Li-ion
Battery voltage range	120 - 600 V
Max. charge / discharge power	5 kW	6 kW	8 kW	10 kW
Max. charge / discharge current	25 A		50 A
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	5 kVA	6 kVA	8 kVA	10 kVA
Rated grid voltage	3/N/PE, 380 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
Rated grid output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Input voltage range	304 - 437 V / 320 - 460 V
Max. input current	11.4 A	13.8 A	18.2 A	22.8 A
Rated grid frequency	50 Hz / 60 Hz
Frequency range	45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power	5 kW	6 kW	8 kW	10 kW
Max. apparent output power	8 kVA, 60 s	9.6 kVA, 60 s	12.8 kVA, 60 s	16 kVA, 60 s
Back-up switch time	< 10 ms
Rated output voltage	3/N/PE, 380 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	7.6 A / 7.2 A	9.1 A / 8.7 A	12.2 A / 11.5 A	15.2 A / 14.4 A
THDv (@linear load)	< 2%
Efficiency
Max. efficiency	96.50%	97.00%	97.50%	97.90%
EU efficiency	96.77%	97.10%	97.41%	97.51%
BAT charged by PV max. efficiency	98.37%	98.45%	98.22%	98.31%
BAT charged / discharged to AC max. efficiency	97.32%	97.34%	97.50%	97.50%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
PV over voltage protection	Yes
Battery reverse protection	Yes
General Data
Max. allowable phase imbalance (grid & back-up)	100%
Max. power per phase (grid & back-up)	50% rated power
Dimensions (W × H × D)	600 × 500 × 210 mm		600 × 500 × 230 mm
Weight	27.6 kg		30.2 kg
Topology	Transformerless
Self-consumption (night)	< 25 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Ingress protection	IP66
Noise emission (typical)	< 46.9 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Features

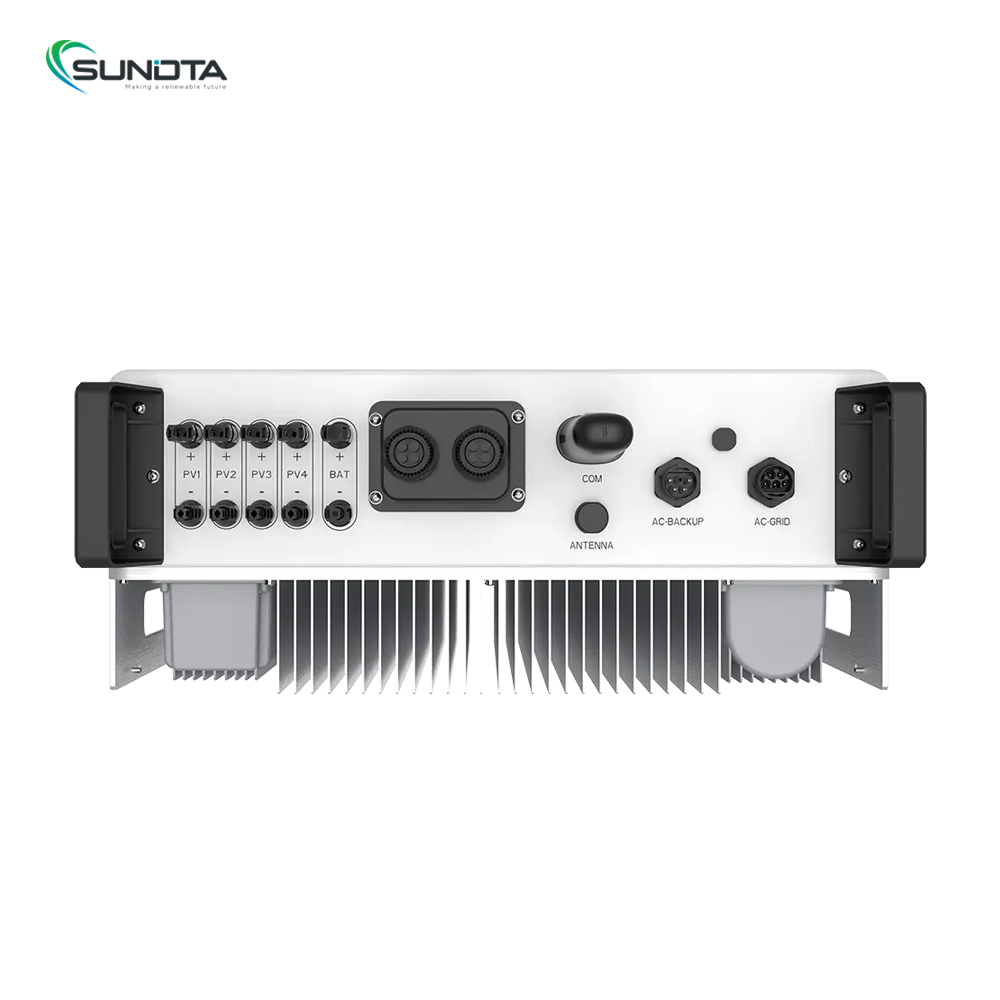

PV connection	MC4 connector
Battery connection	Quick connection plug
AC connection	Quick connection plug
Display	LED indicator & Bluetooth + APP
Communication	CAN, RS485, Optional: Wi-Fi, Cellular, LAN
