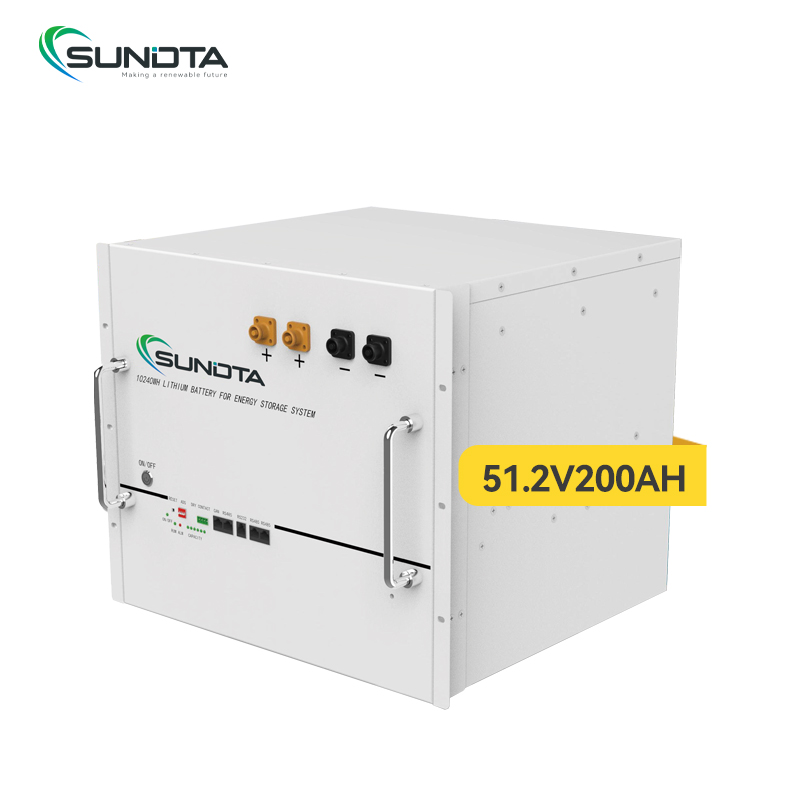

High voltage 51.2v 200ah solar litium batteries
200ah solar litium batteries

High voltage 51.2v 200ah solar litium batteries

200ah solar litium batteries :The whole module is non-toxic, non-polluting and environmentally friendly.
  • Model:

    STD51.2V 200AH-R
  • Battery Energy Capacity:

    5.12/10.24Kwh
  • Rated Voltage:

    51.2V
  • Rated Cell Capacity:

    100Ah/200Ah
  • Application:

    High Voltage
  • Weight:

    50Kg/100kg
  • Cycle Times:

    6000 Times
  • Certification:

    CE MSDS UN38.3

rack-mounted solar battery



High voltage 51.2v 200ah solar litium batteries



Energy storage product's positive electrode materials are lithium iron phosphate,

battery cells are managed effectively by BMS with better performance, the system's features as below:

●Intelligent design configures integrated inspection module.

●Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power.

●Flexible configurations allow parallel of multi battery for longer standby time.

●Self-ventilation with lower system noise.

●Less battery self-discharge, then recharging period can be up to 10 months during the storage.

●No memory effect so that battery can be charged and discharged shallowly.



Basic Parameters Numerical
Nominal Voltage (V)   51.2
Nominal Capacity(WH) 10240
Usable Capacity(WH) 9216
Discharge Voltage (V) 40
Charge Voltage(V) 58.4
Recommend Charge/Discharge Current (A) 50
Max.Charge/Discharge Current(A) 100
Communicaiton RS485/RS232/CAN
Working Temperature 0C~50C Charge
-10°C ~50C Disharge
Shelf Temperature -20C~60C
Certification  CE/IEC/UL/UN38.3/MSDS
Design Life 10 years+
Cycle Life >6000









-->
