51.2V 280Ah LifePO4 Energy Storage Battery

51.2V 280Ah LifePO4 Energy Storage Battery

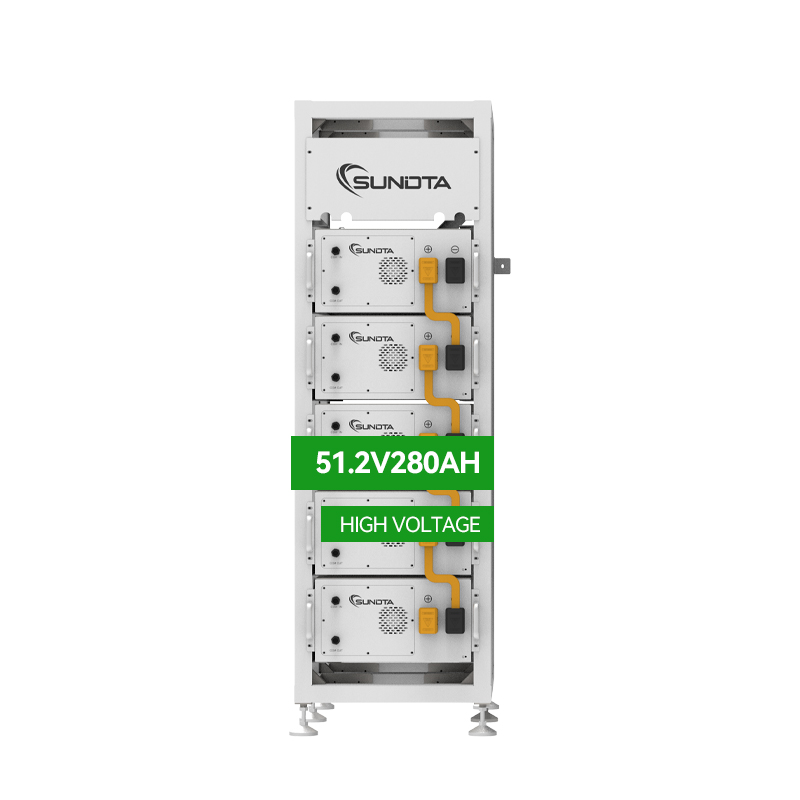

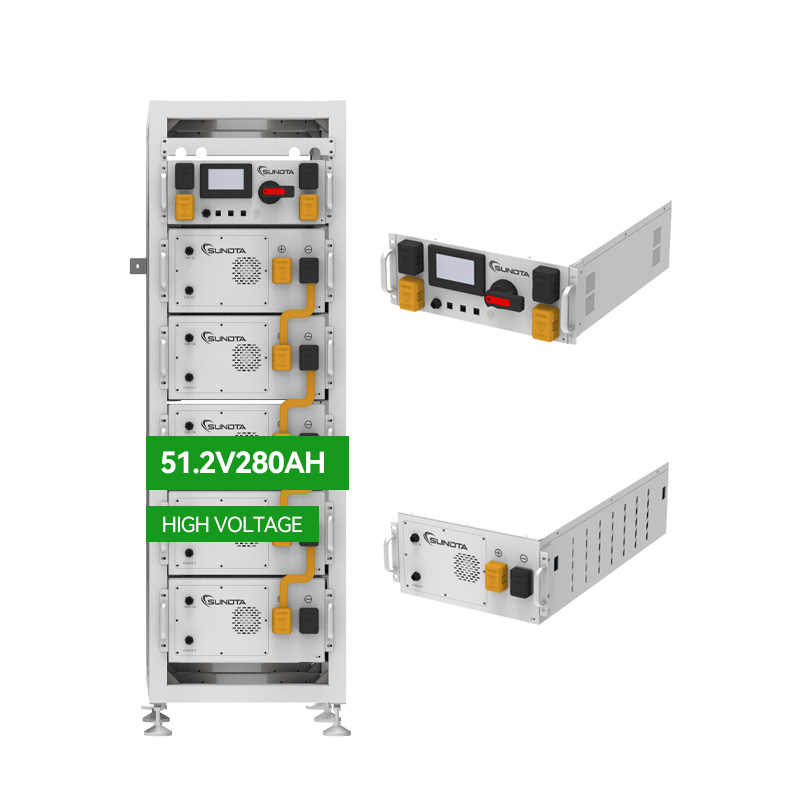

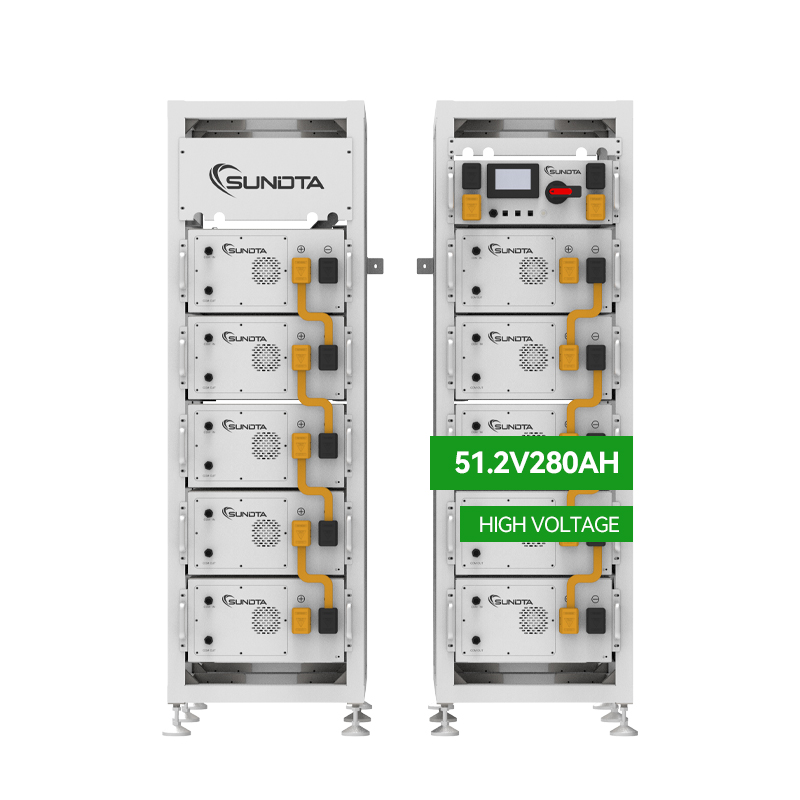

   SDT-280 is a high-voltage lithium-ion battery system. it provides a reliable backup power supply for supermarkets, banks, schools, farms and small factories to smooth the load curve and achieve peak load transfer, lt can also improve the stability of renewable systems and promote the application of renewable energy.It is characterized by high integration, good reliability, long service life, wide working temperature range, etc. The battery energy storage system is modular. Each battery module has a capacity of 14.33kWh. lt can support up to 15 battery modules in series. its total energy can be expanded from 43kWh to 215kwh.

Features:

1. High safety LifePO4 Battery;

2. 10 Years Warranty;

3. Multi-level of pretection;

4. high energy density;

5. support RS485 and CAN communication;

6. intelligent built-in BMS

	Battery Module Cell Chemistry: LiFePO4 Single Module Capacity: 14.33kWh Module Nominal Voltage: 51.2 V Module Capacity: 280 Ah		High Voltage Control Box System operation Voltage: 0~1000V Operation Current: 250A Protection Grade: IP20 Communication: MODBUS RTU/CAN

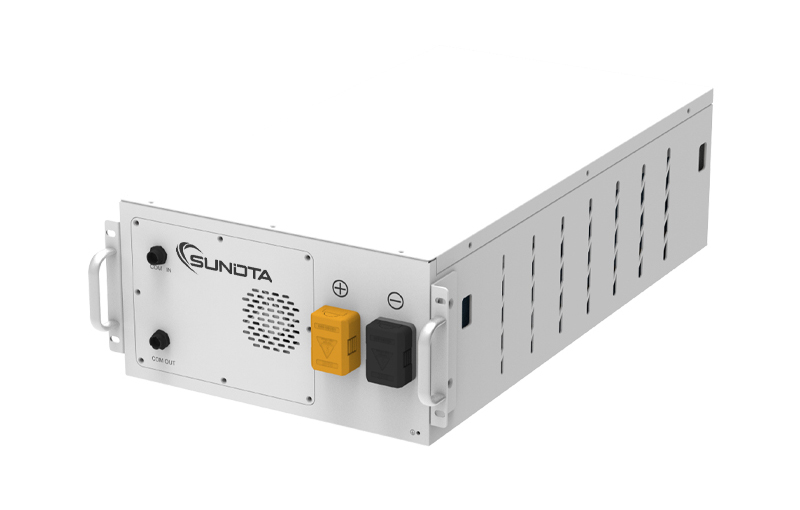

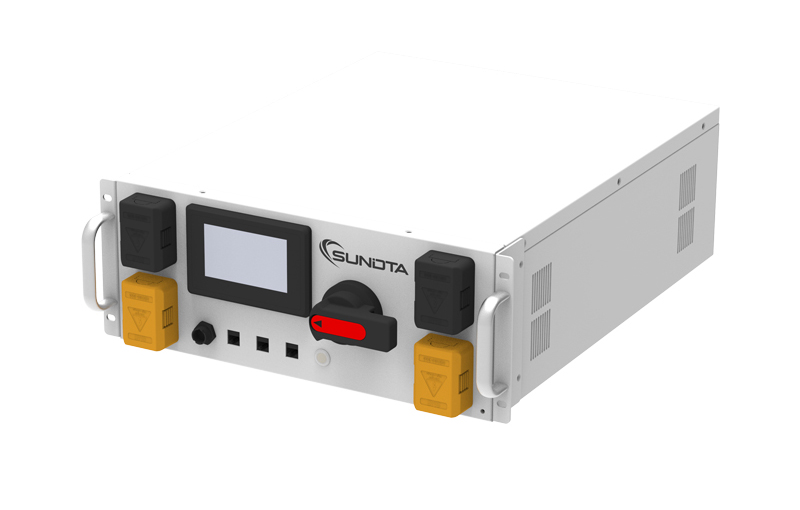

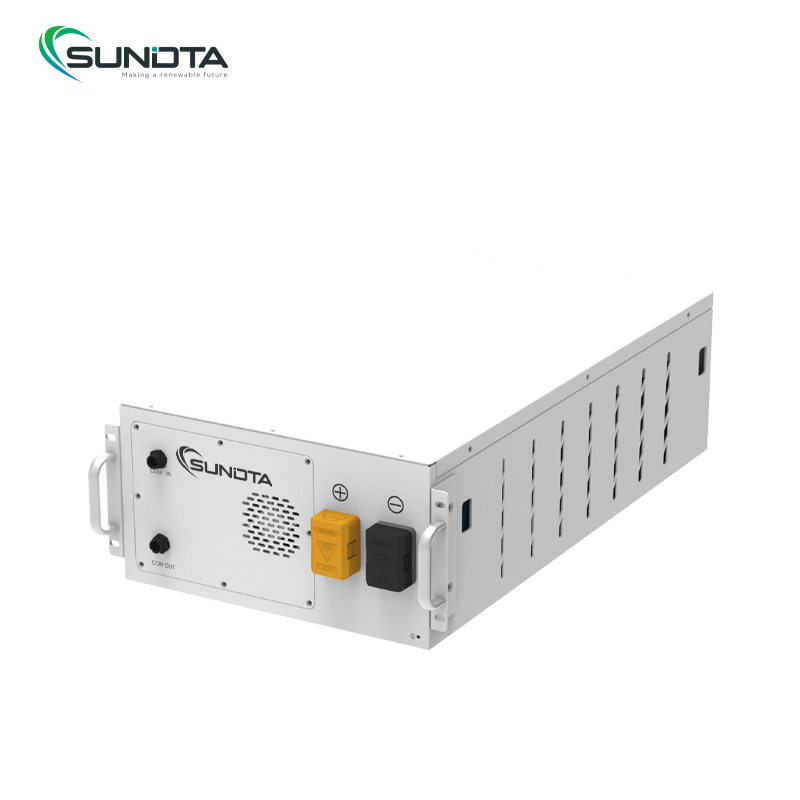

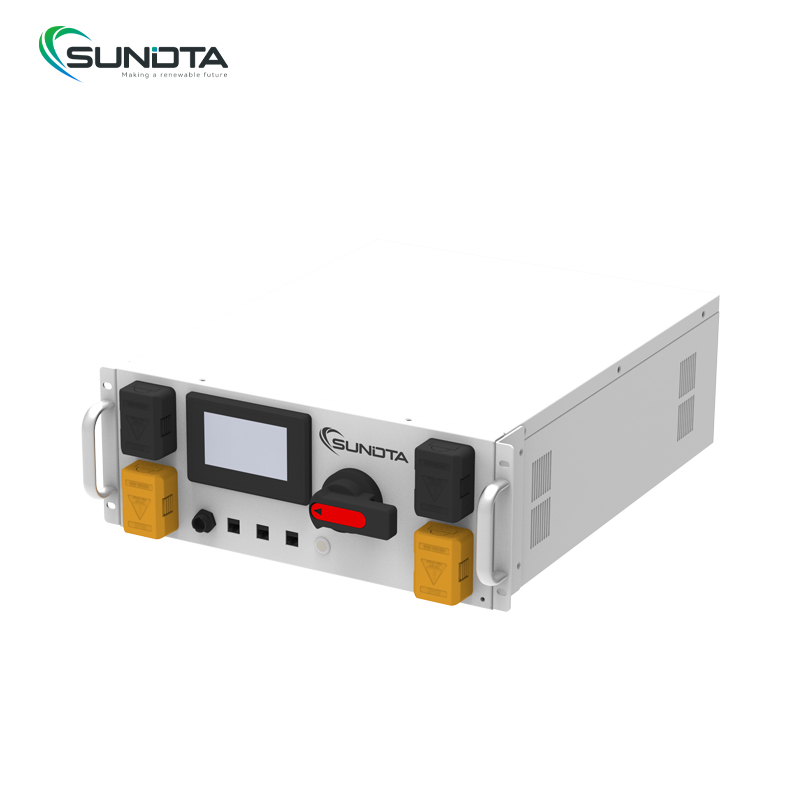

Battery Module： SUNDTA LiFePO4 battery module is a testament to our commitment to providing high-quality, reliable, and sustainable energy storage solutions. With its intelligent design, flexible configuration options, and wide operating temperature range, this module is suitable for a variety of applications. Trust to power your energy storage needs with our cutting-edge technology and unwavering dedication to excellence.		High Voltage Control Box： The high voltage control box is a high voltage power loop management unit specially designed for the energy storage system. It is an intermediate unit connecting the battery cluster and the energy storage converter. The high voltage control box has battery cluster voltage, battery cluster current collection, and battery cluster loop Contactor control and protection functions. Circuit breakers, contactors, fuses, circulation control circuits, current sensors, battery cluster control management modules (BCM),switching power supplies, etc.

Product Paramenters
