Growatt Three Phase Hybird Inverter

Growatt Three Phase Hybird Inverter

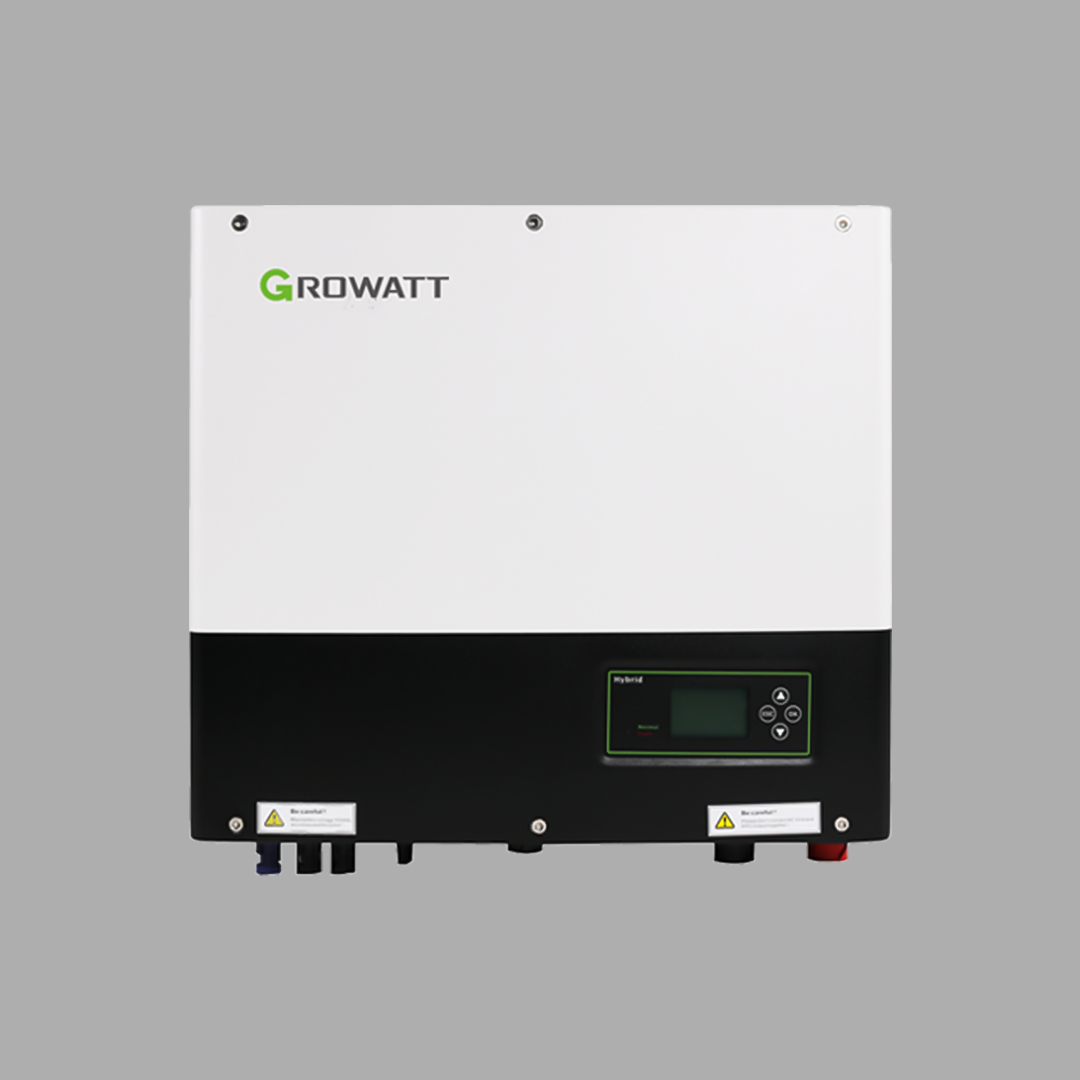

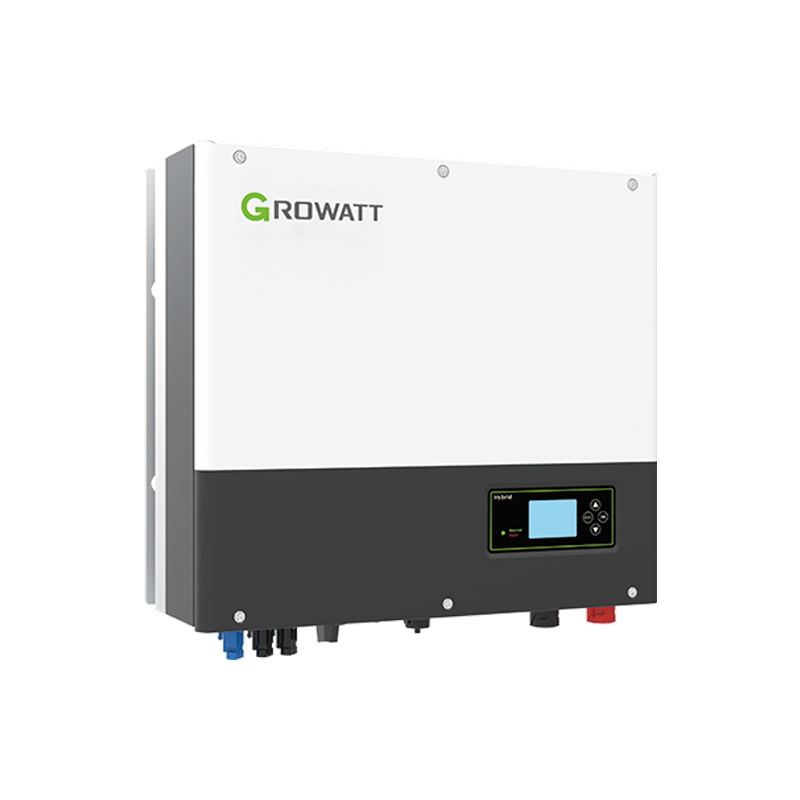

The Growatt SPH 10000TL3-BH-UP inverter is a three-phase hybrid inverter designed for residential and small industrial applications. It is known for its affordable price and high quality. The inverter is certified for the global market and is commonly used in pro-consumer installations. It comes in various capacities ranging from 4kW to 10kW

One of the key features of the SPH inverter is its backup output for EPS (Emergency Power Supply) circuits

This output can operate in two modes:

Bypass mode, where power is constantly supplied to the EPS output,

UPS (Uninterruptible Power Supply) mode, where power is available after a power outage, enabling off-grid operation.

To further enhance its functionality, Growatt offers the option to pair the SPH inverter with ARK energy storage systems. These energy storage solutions have capacities ranging from 7.68 kWh to 25.6 kWh. By combining the Growatt SPH inverter with ARK energy storage, users can maximize self-consumption of the energy generated. Instead of sending excess energy to the grid, it is stored in the batteries, reducing reliance on energy prices set by the distribution company. This setup promotes greater energy independence.

The Growatt SPH inverters are compatible with LiFePo4 batteries and backup power systems, providing flexibility for various energy storage configurations. Additionally, when combined with an energy meter, the SPH inverters can activate the export limit function, allowing users to regulate the amount of energy they export to the grid. This feature enables the generation of energy balances for the entire building, promoting efficient energy management.

Overall, the Growatt SPH 10000TL3-BH-UP inverter offers a cost-effective and high-quality solution for residential and small industrial applications. Its hybrid capabilities, EPS backup output, compatibility with ARK energy storage, and ability to activate export limits make it a versatile choice for those seeking efficient energy management and greater energy independence.

Leading Features:

1. UPS function, 10 ms switching

2. Compact design for easier installation

3. 3-phase output 100% phase unbalanced

4. Asymmetrical phase power flow management

5. LCD display with four buttons

6. Natural cooling without fans

7. Adjustable charging and discharging times

8. Online smart service

9. Battery management system for safe operation

10. Battery charge status monitoring

11. IP65 protection rating

12. Growatt comprehensive warranty plan

13. 10 year warranty
