Item NO.:
SDT 3500-5500HGoods Stock:
50000Payment:
TT/LC/PaypalProduct Origin:
ChinaColor:
WhiteShipping Port:
Shanghai/NingboLead Time：
3 days (1-10000w); 5 days (10001w-100000

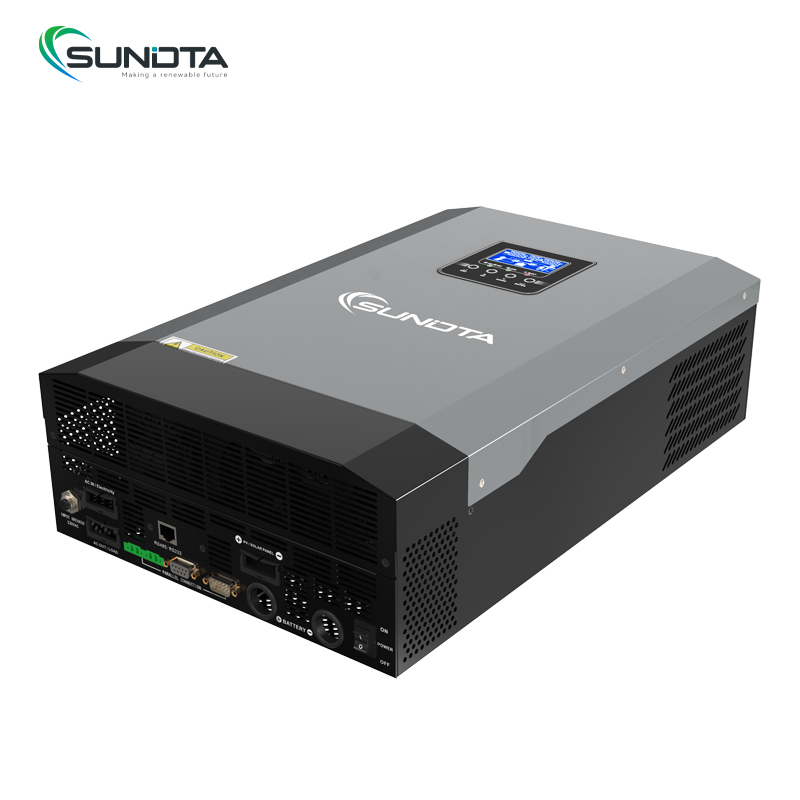

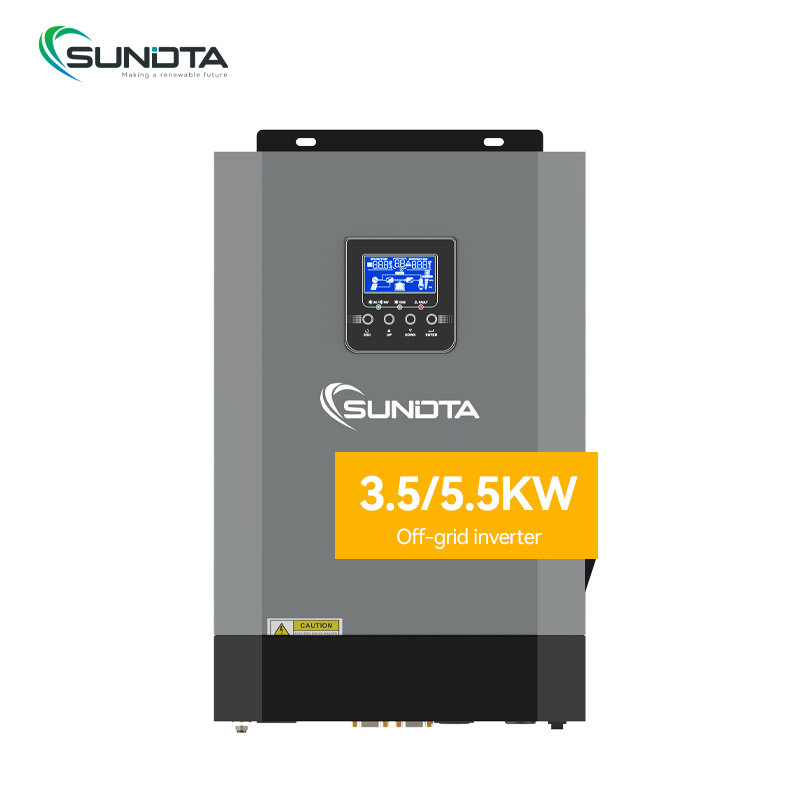

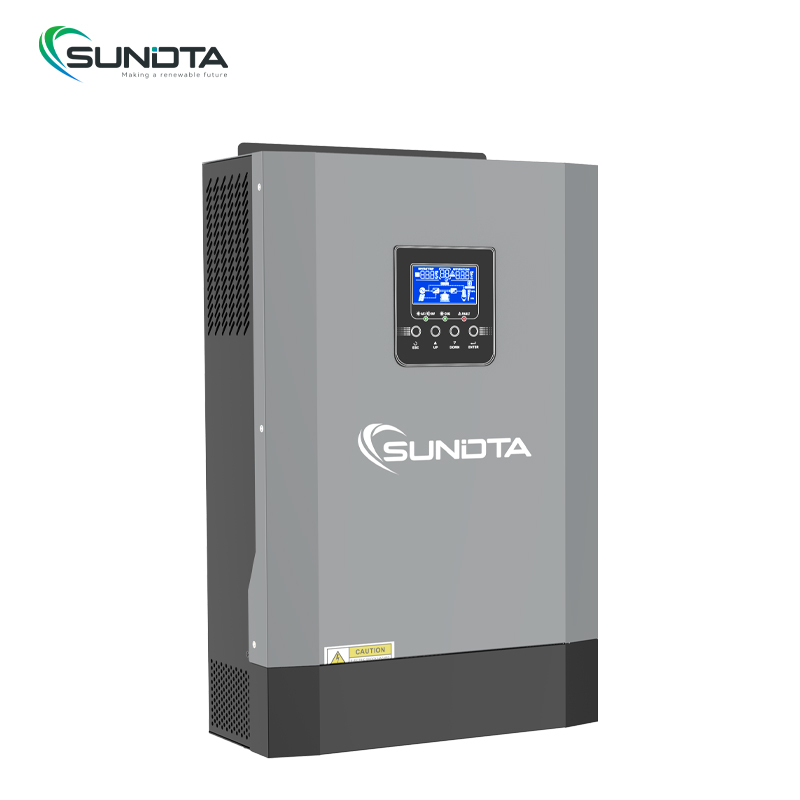

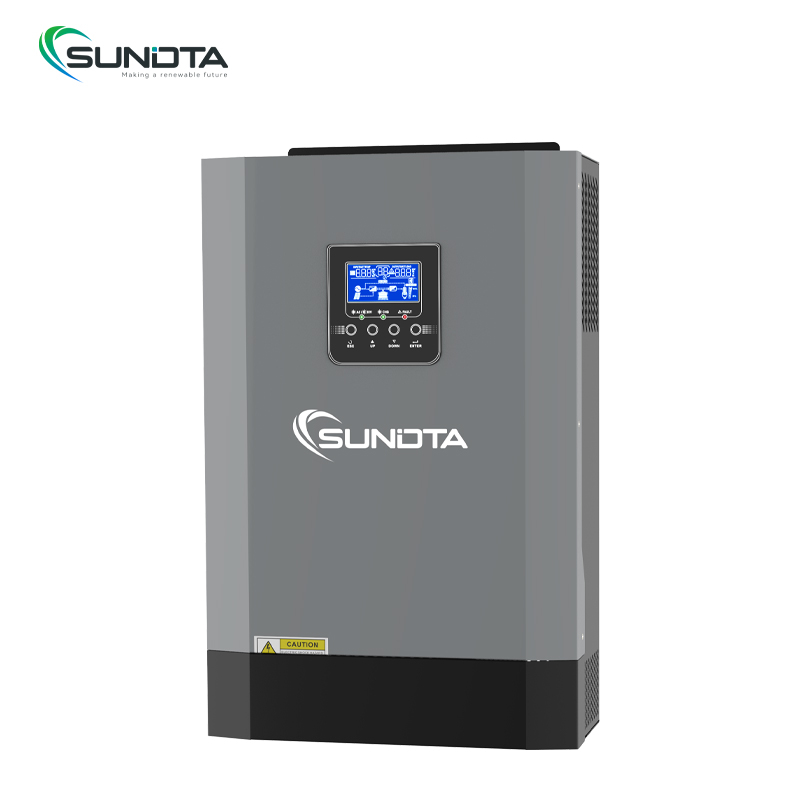

SUNDTA 3500-5500H Single Phase Off-grid Solar Inverter
3500-5500H Single Phase off grid solar inverter features
Max efficiency : 98.00%
5.5kw can operate up to 6 units in parallel
| MODEL | MPS-3500H | MPS-5500H |
| Rated Power | 3500VA/3500W | 5000VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range |
170-280VAC ( for personal computers ) 90-280VAC ( for home appliances ) |
|
| Frequency Range | 50Hz / 60Hz (Auto sensing ) | |
| OUTPUT | ||
| Ac Voltage Regulation ( Batt Mode ) | 230VAC ± 5% | |
| Suger Power | 7000VA | 11000VA |
| Efficiency ( Peak ) PV to INV | 97% | |
| Efficiency ( Peak ) BAT to INV | 94% | |
| Transfer Time | 10ms ( for personal computers ) 20ms ( for home appliances ) |
|
| Wave Form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX PV Array Power | 5000w | 6000w |
| MPPT Range@ Operating Voltage | 120-450VDC | |
| Maximum Charging Current | 110A | |
| Maxmum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension D*W*H ( mm ) | 472 * 297 * 129 | |
| Net Weitht ( kgs ) | 13kg | 14kg |
| Communcation Interface |
RS485 / RS232 ( Standard ) WIFI ( Optional ) |
|
| OPERATING ENVIROMENT | ||
| Humidity | 5% to 95% Relative Humidity ( Non - condensing ) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | －15℃ to 60 ℃ |
