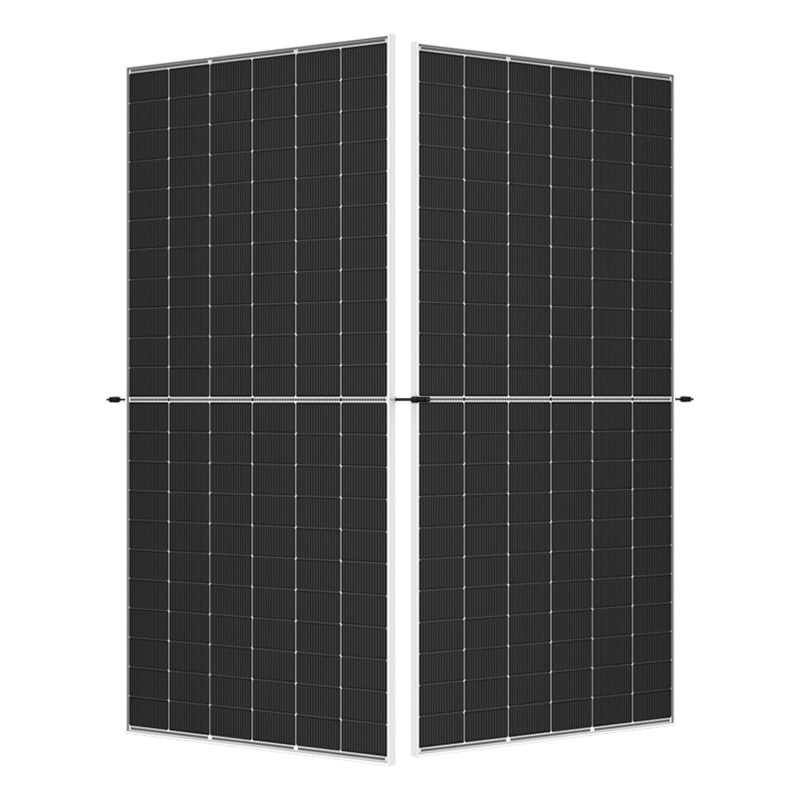

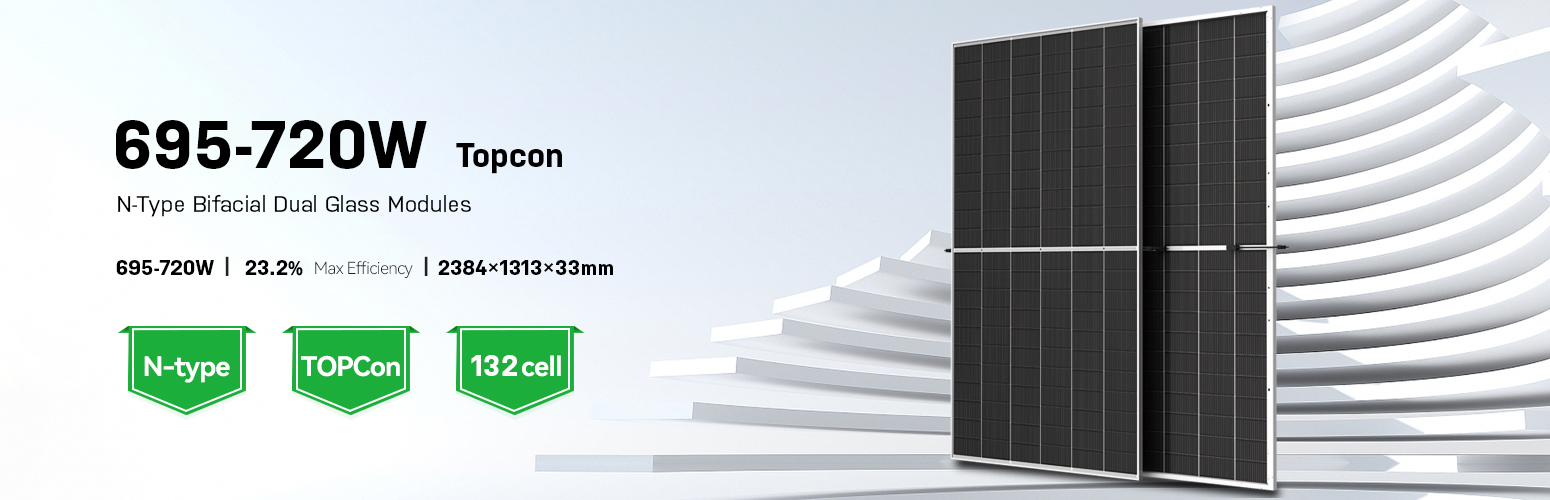

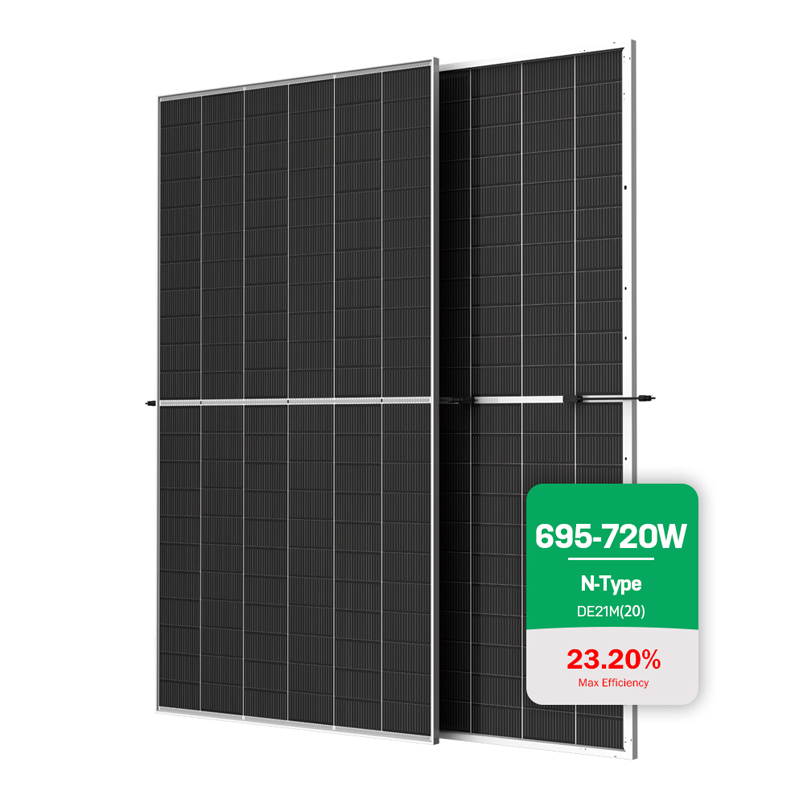

695-720W N-Type Topcon Bifacial Solar Panels

720W maximum power output N type Bifacial dual glass Monocrystalline modules

Inquiry now

695-720W N-Type Topcon Bifacial Solar Panels

695-720W N-Type Topcon Bifacial Solar Panels

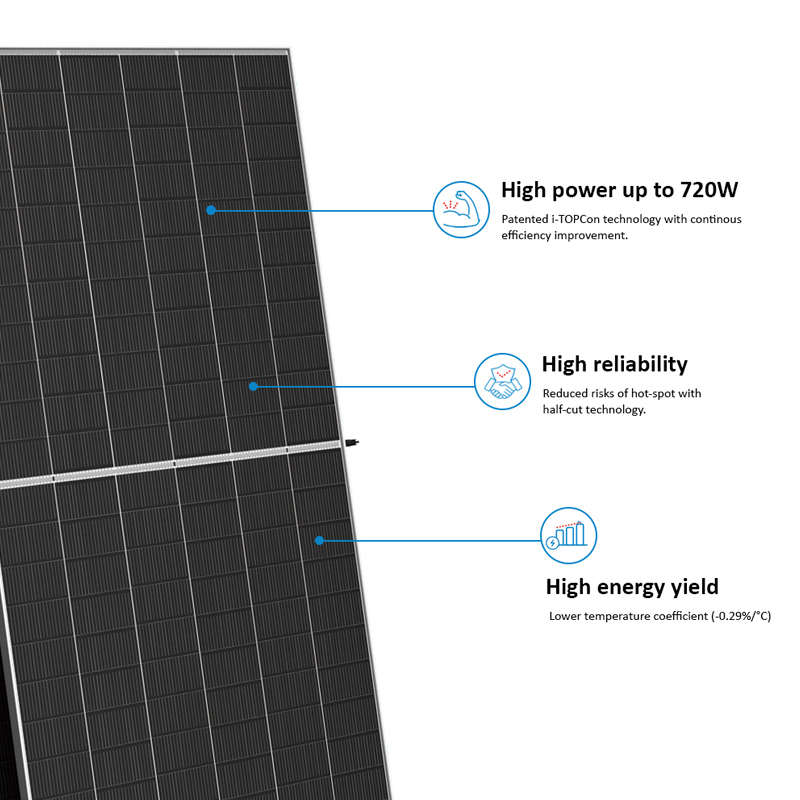

Key Features

1. N type Technology
N-type modules with tunnel oxide passivating contacts(TOPCon) technology offer lower LlD/LeTlD degradation andbetter low light performance.
2. Hot 2.0 Technology
N-type modules with SUNROVER's HOT 2.0 technologyoffer better reliability and efficiency.
3. Durability Against Extreme Environment
High salt mist and ammonia resistance.
4. Mechanical Load Enhanced
Certified to withstand:5400Pa front side max static test load 2400Pa rear side max static test load;
5. SMBB Technology
Better light trapping and current collection to improvemodule power output and reliability;

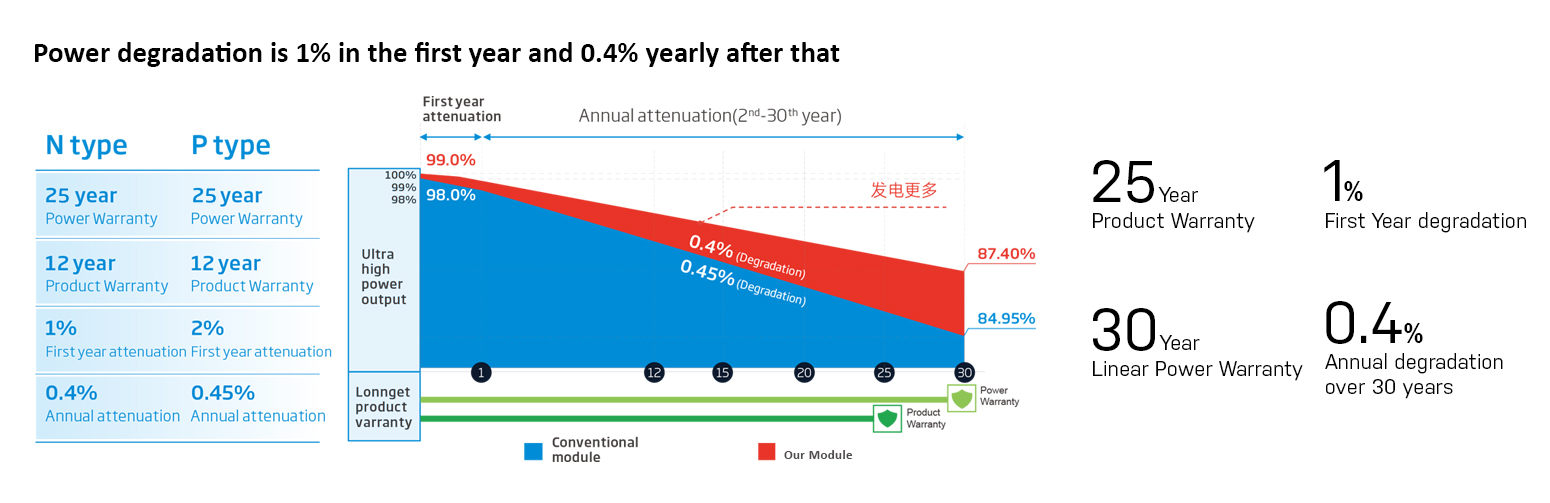

6. Anti-PID Guarantee
Minimizes the chance of degradation caused by PlDphenomena through optimization of cell productiontechnology and material control.

Mechanical Characteristics
Cell Type	N-Type Mono crystalline
No.of Cells	132cells
Dimensions	2384130333mm
Weight	38.3Kg

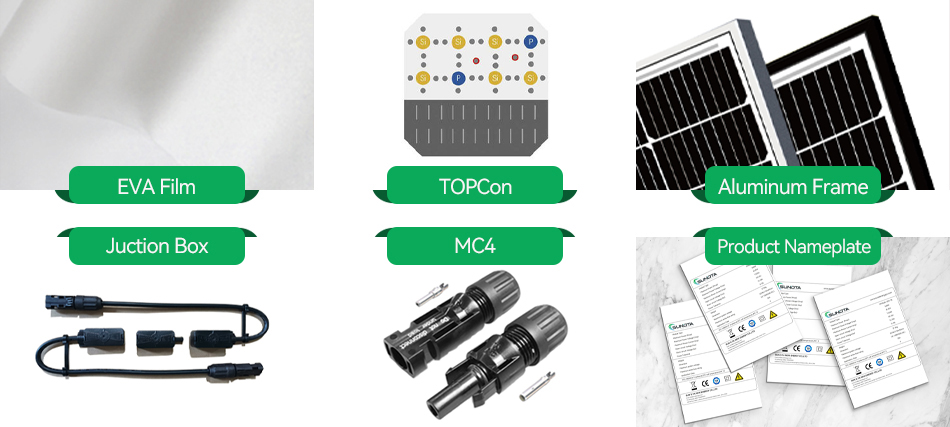

Glass	2.0mm,High Transmission,AR Coated Heat Strengthened Glass; 2.0mm,Heat Strengthened Glass.
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Reatd,3 diodes
Output Cable	4.0mm²，Portrait:350/280mm,Length can be customized
Operating Temperature	-40℃~+85℃
Maximum system voltage	1500V DC (IEC/UL)
Maxumum series Fuse Rating	35A
Power Tolerance	0-5W
Temperature Coefficients of Pmax	-0.29%/℃
Temperature Coefficients of Voc	-0.24%/℃
Temperature Coefficients of Isc	0.040%/℃
