Topcon N Type Full Back Bifacial 440w Solar Panel

Topcon N Type Full Back Bifacial 440w Solar Panel

N type topcon cells make extremely low power losses andprevent phenomena LID&LETID

Model:
STM440-54M-T8N
Dimension:
1722*1134*30mm
Weight:
22kg
Cell Type:
N type Topcon
Efficiency:
22.79%
Certification:
CE/TUV
Warranty:
15 Years

Inquiry now

Product Details

N type solar panel

Topcon N Type Full Back Bifacial 440w Solar Panel

Cell Orientation	108 (6x18)

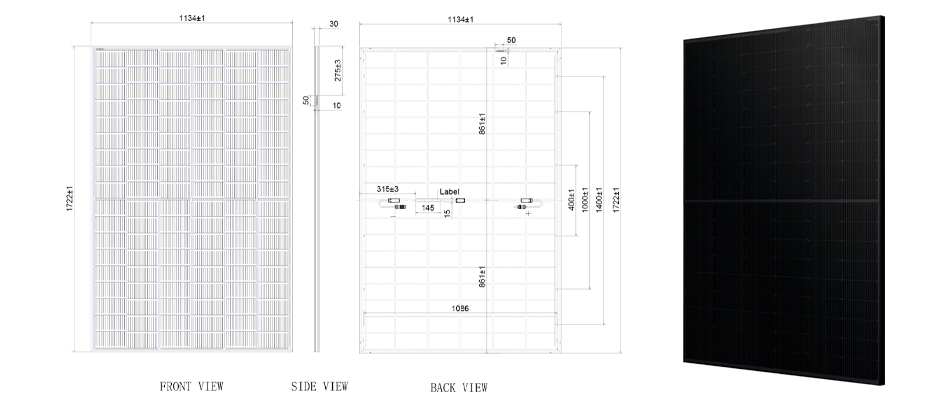

Dimension	1722x1134x30mm
Weight	22kg

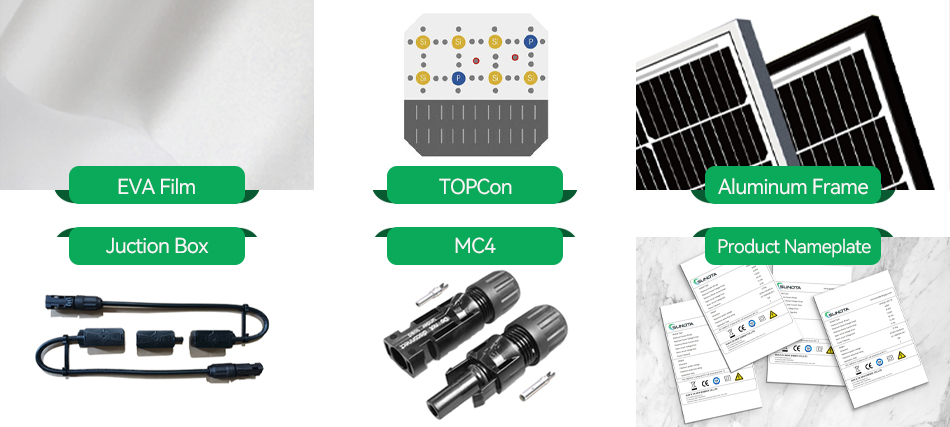

Glass	Front Glass:2.0mm high transmittance,AR coated tempered GlassRear Glass:2.0mm high transmittance，coated temperature Glsaa
Frame	Anodized aluminum alloy frame
Junction Box	IP68,3 diodes
Output Cable	+400mm,-200mm or土1200mm,length can be customized
Packaging	36pcs/pallet,936pcs/40'HQ

Maximum Power(Pmax)	425w	430W	435W	440W	445w
Maximum Power Voltage(Vmp)	31.69V	31.87V	32.06V	32.25V	32.44V
Maximum Power Current(Imp)	13.42A	13.50A	13.58A	13.66A	31.74A
Open-circuit Voltage(Voc)	38.29A	38.48A	38.67A	38.86A	39.05V
Short-circuit Current(lsc)	14.16V	14.24V	14.32V	14.40V	14.48A
Module Efficiency(%)	21.76%	22.02%	22.28%	22.53%	22.79%

Temperature Cofficient of lsc	+0.046%C
Temperature Cofficient of Voc	-0.250%C
Temperature Cofficient of Pmax	-0.30%C
NOCT (Nominal operating cell temperature)	45+2C℃

450w solar panel

The Topcon N Type Full Back Bifacial 440w Solar Panel is a high-efficiency solar panel designed for generating

electricity from Sundta.Here are some key features and details about this particular solar panel:

1. Power Output: The Topcon N Type Full Back Bifacial 440w Solar Panel has a power output of 440 watts.

This means that under ideal conditions, it can generate up to 440 watts of DC (direct current) electricity.

2. Bifacial Technology: This solar panel features bifacial technology, which allows it to generate electricity from both the front and back sides of the panel.

3. N-Type Silicon Cells: The Topcon N Type Full Back Bifacial panel utilizes N-type monocrystalline silicon cells. N-type cells are known for their higher efficiency and better resistance to light-induced degradation compared to P-type cells.

4. Full Backsheet: This solar panel has a full backsheet design that protects the rear side of the solar cells, adding durability and increasing the panel's lifespan.

440 watt solar panel
