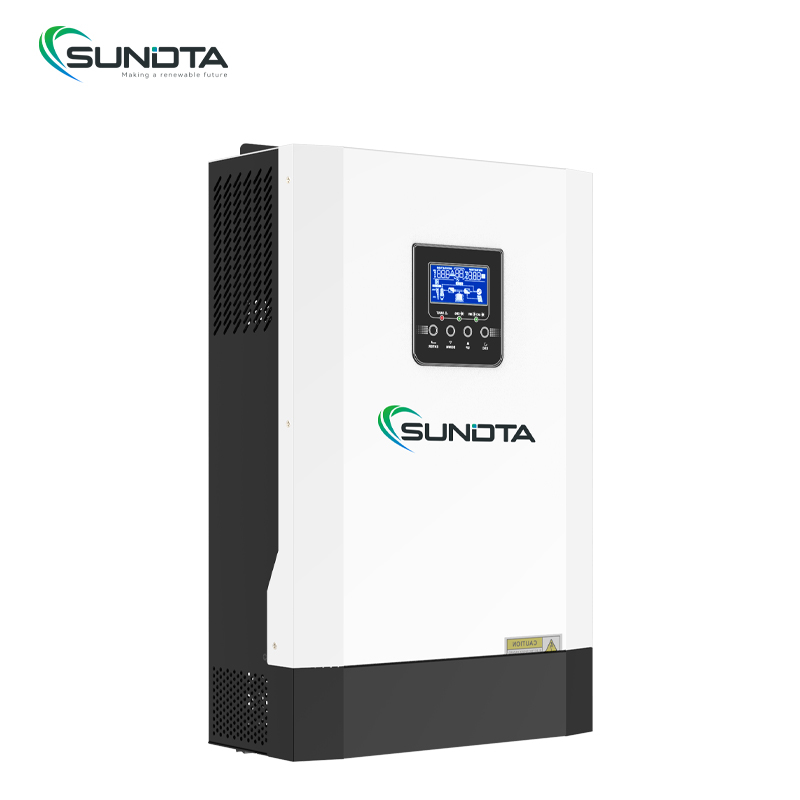

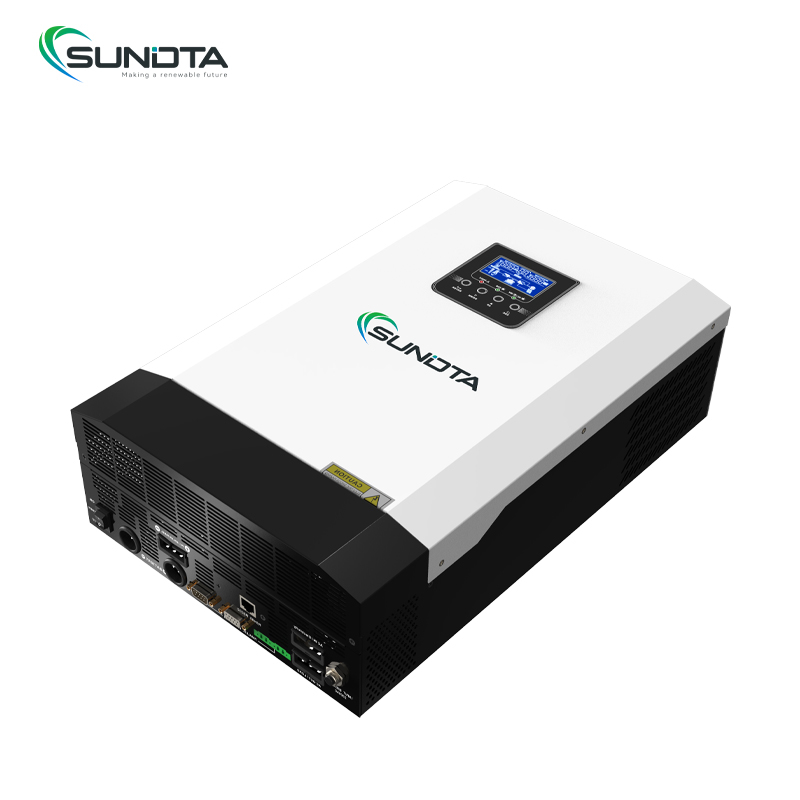

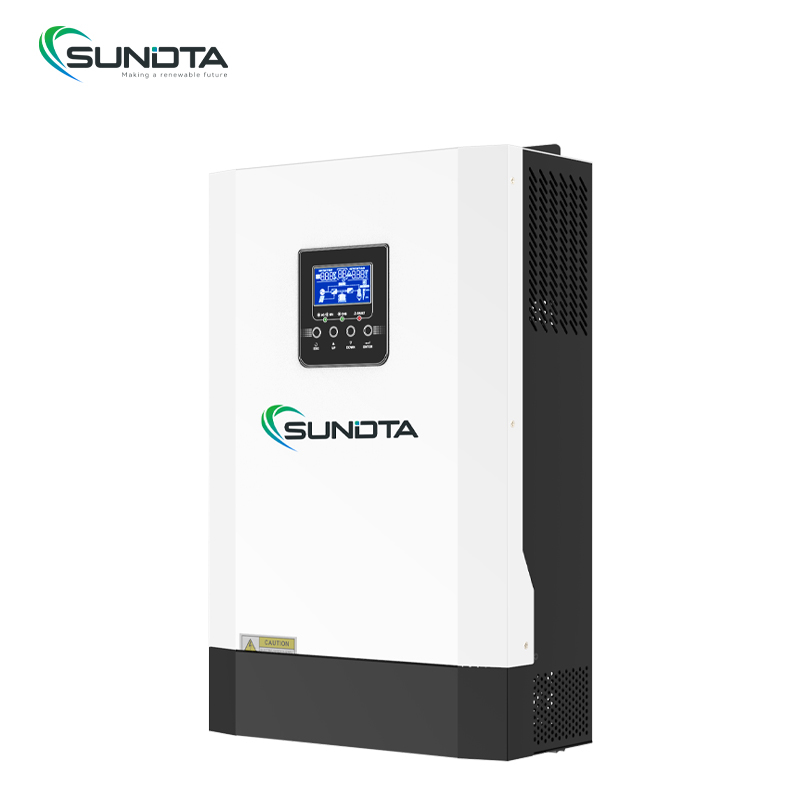

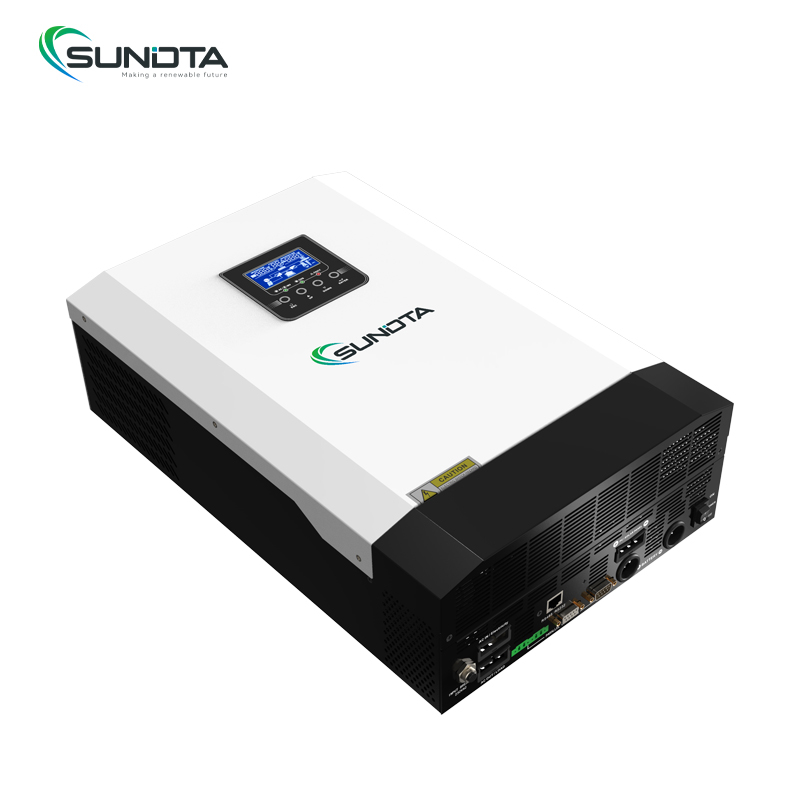

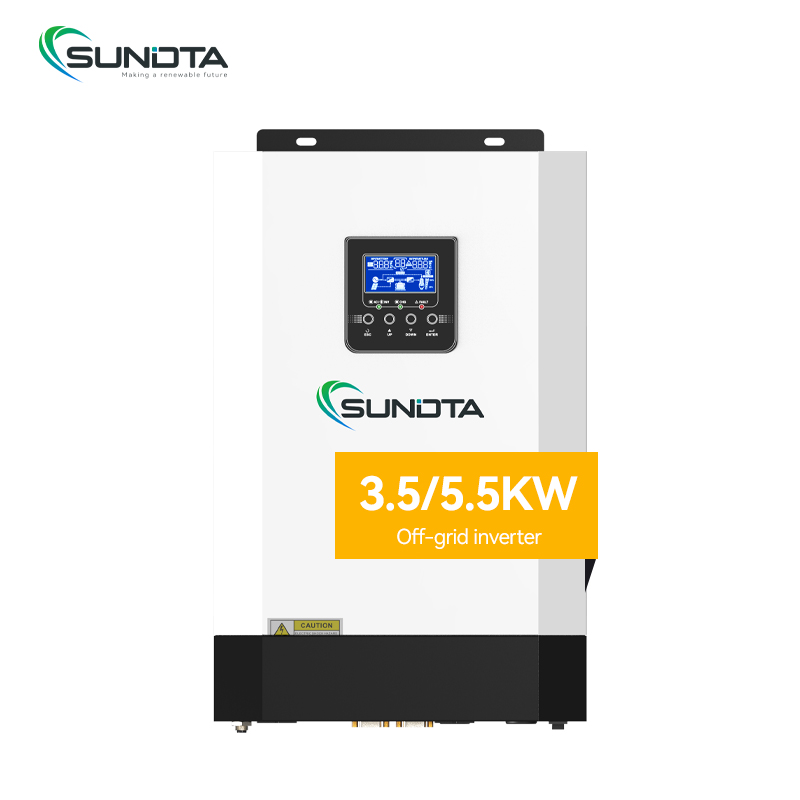

SUNDTA Single Phase 3.5/5.5KW Off Grid Inverter

SDT 3500-5500HP, Single Phase, 3.5/5.5KW, Off grid inverter with 5 Years Warranty. All in one hybrid inverter All in one hybrid inverter

solar inverter 3.5kw

SUNDTA Single Phase 3.5/5.5KW Off Grid Inverter

off grid solar inverter features

1. Easy to operate, convenient and fully functional.

2. Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.

3. Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.

4. solar energy system product supply chain has received favors and praises from various overseas home use

customers, small business customers, government projects.

MODEL	MPS-3500HP	MPS-5500HP
Rated Power	3500VA/3500W	5000VA/5500W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC ( for personal computers ) 90-280VAC ( for home appliances )
Frequency Range	50Hz / 60Hz (Auto sensing )
OUTPUT
Ac Voltage Regulation ( Batt Mode )	230VAC ± 5%
Suger Power	7000VA	11000VA
Efficiency ( Peak ) PV to INV	97%
Efficiency ( Peak ) BAT to INV	94%
Transfer Time	10ms ( for personal computers ) 20ms ( for home appliances )
Wave Form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum charge current	80A	80A
SOLAR CHARGER
MAX PV Array Power	5000w	6000w
MPPT Range@ Operating Voltage	120-450VDC
Maximum Charging Current	110A
Maxmum Efficiency	98%
PHYSICAL
Dimension DWH ( mm )	472 * 297 * 129
Net Weitht ( kgs )	13kg	14kg
Communcation Interface	RS485 / RS232 ( Standard ) WIFI ( Optional )
OPERATING ENVIROMENT
Humidity	5% to 95% Relative Humidity ( Non - condensing )
Operating Temperature	0℃ to 55℃
Storage Temperature	－15℃ to 60 ℃
