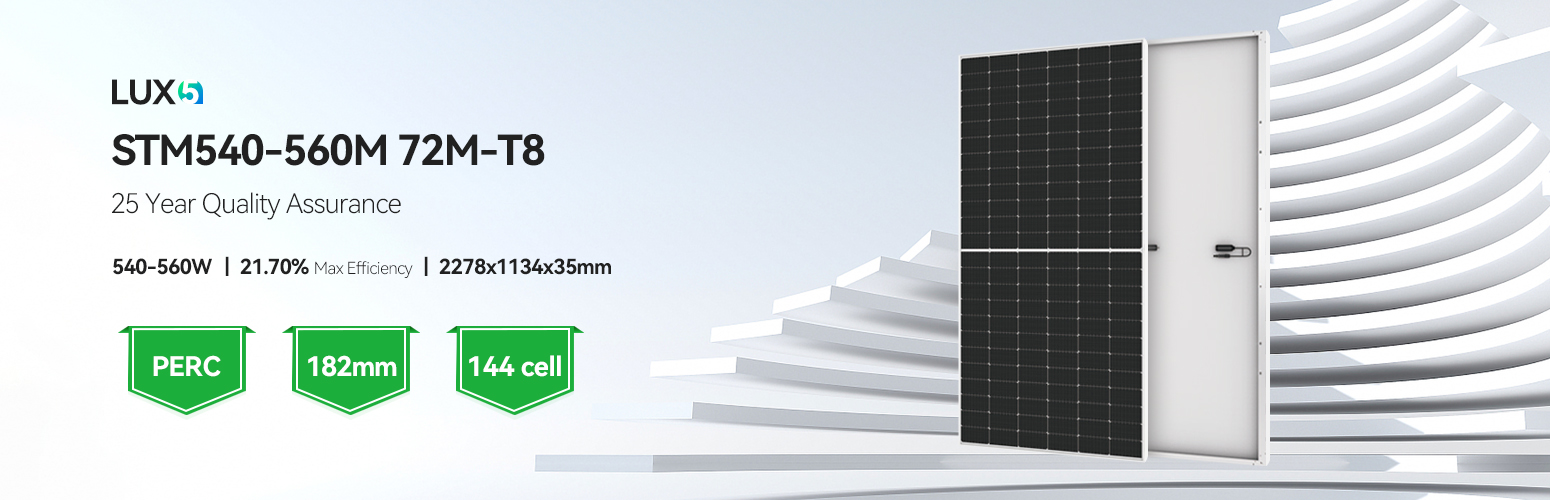

Model:
STM560-72M-T8Rated Power:
560WDimension:
2278x1134x35mmWeight:
27.5kgNo. Of Cells:
144Cell Type:
210mm PercModule Color:
sliverEfficiency:
21.7%Certification:
CE/TUVWarranty:
25 Years

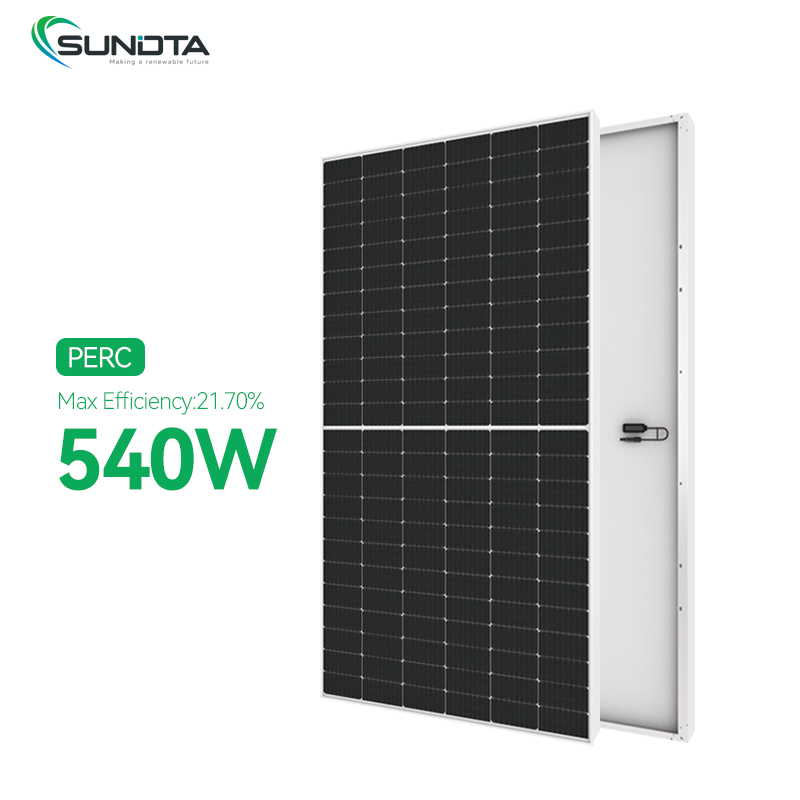

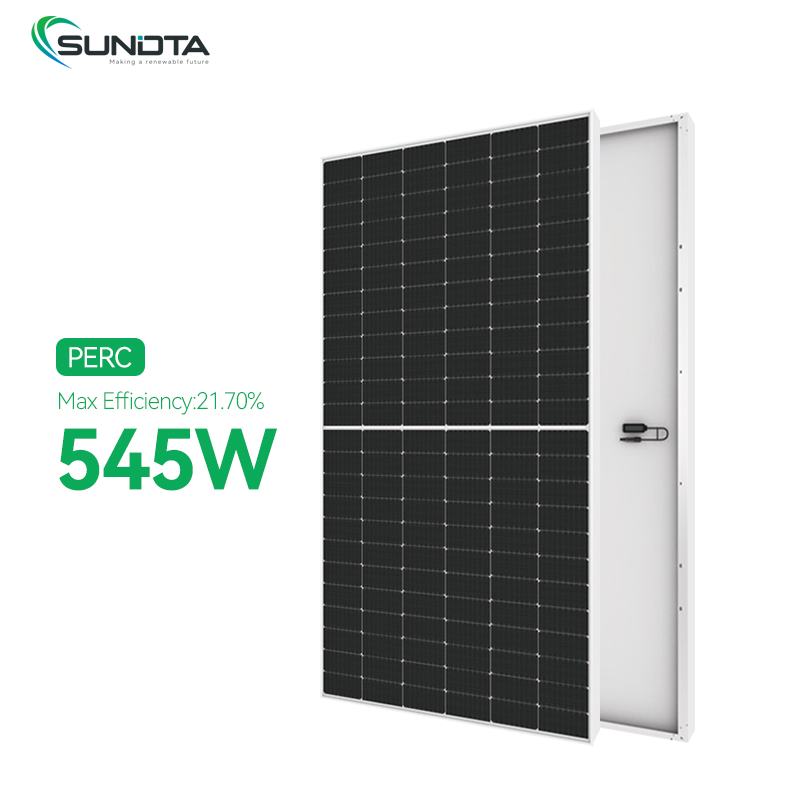

China shingle pv panels 540 watt 550 watt 560 watt
| Cell Orientation | 144(6x24) |
| Dimension | 2278x1134x30mm |
| Weight | 27.5kg |

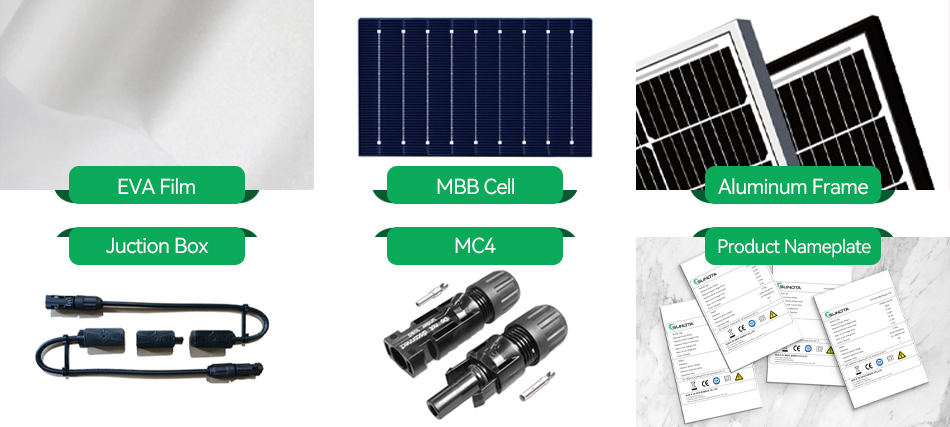

| Glass | Single glass,3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable |
4mm2,+400,-200mm/±1400mmLength can be customized |
| Packaging | 31pcs/pallet,620pcs/40'HQ |
| Maximum Power(Pmax) | 540w | 545w | 550w | 555w | 560w |
| Maximum Power Voltage(Vmp) | 41.65V | 41.80V | 41.95V | 41.10V | 42.25V |
| Maximum Power Current(Imp) | 12.97A | 13.04A | 13.12A | 13.19A | 13.26A |
| Open-circuit Voltage(Voc) | 49.50V | 49.65V | 49.80V | 49.95V | 50.10V |
| Short-circuit Current(lsc) | 13.85A | 13.92A | 13.98A | 14.04A | 14.10A |
| Module Efficiency(%) | 20.90% | 21.10% | 21.30% | 21.50% | 21.70% |
| Maximum Power(Pmax) | 403.6W | 407.4W | 411.1W | 414.8W | 418.6W |
| Maximum Power Voltage(Vmp) | 41.65V | 38.83V | 38.97V | 39.11V | 39.25V |
| Maximum Power Current(Imp) | 12.97A | 10.49A | 10.56A | 10.61A | 10.67A |
| Open-circuit Voltage(Voc) | 49.50V | 46.68V | 46.82V | 46.97V | 47.11V |
| Short-circuit Current(lsc) | 13.85A | 11.25A | 11.31A | 11.35A | 11.40A |
| Module Efficiency(%) | 20.90% | 21.10% | 21.30% | 21.50% | 21.70% |
| 540 watt efficiency solar panel with15 Years Warranty for Materials and Processing |
| 550 watt efficiency solar panel with 25 Years Warranty for Extra Linear Power Output |
| Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions. |
| Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead. |
| Minimized micro-cracks with innovative non-destructive cutting Technology. |
| Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance. |
| Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments. |
| Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load. |
