Model:
STM670-66M-T12Rated Power:
670WDimension:
2385*1303*35mmWeight:
32KgNo. Of Cells:
132Cell Type:
210mm PercModule Color:
silverEfficiency:
21.5%Certification:
CE/TUVWarranty:
25Years

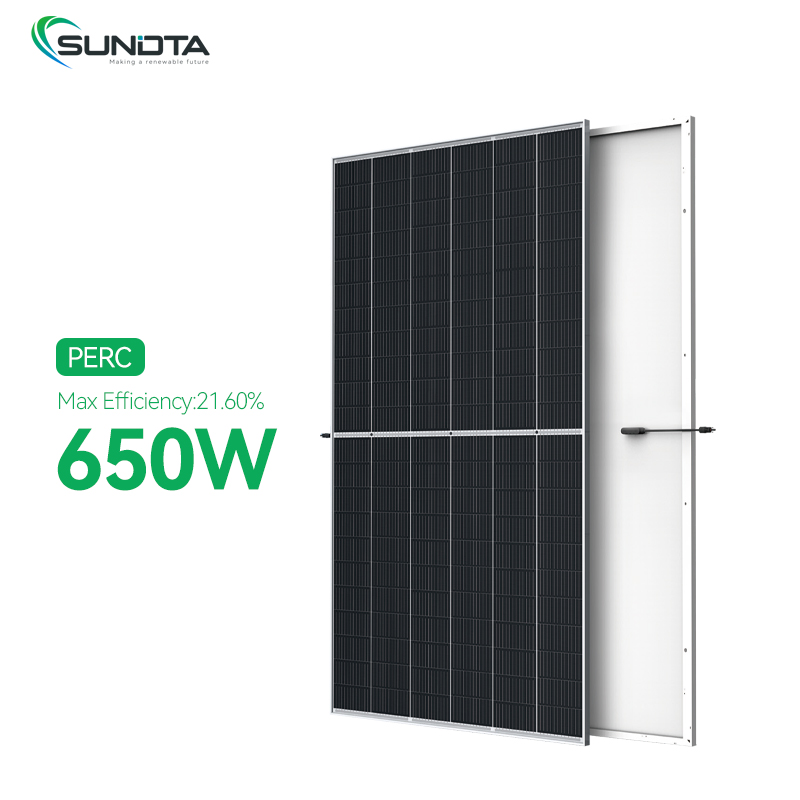

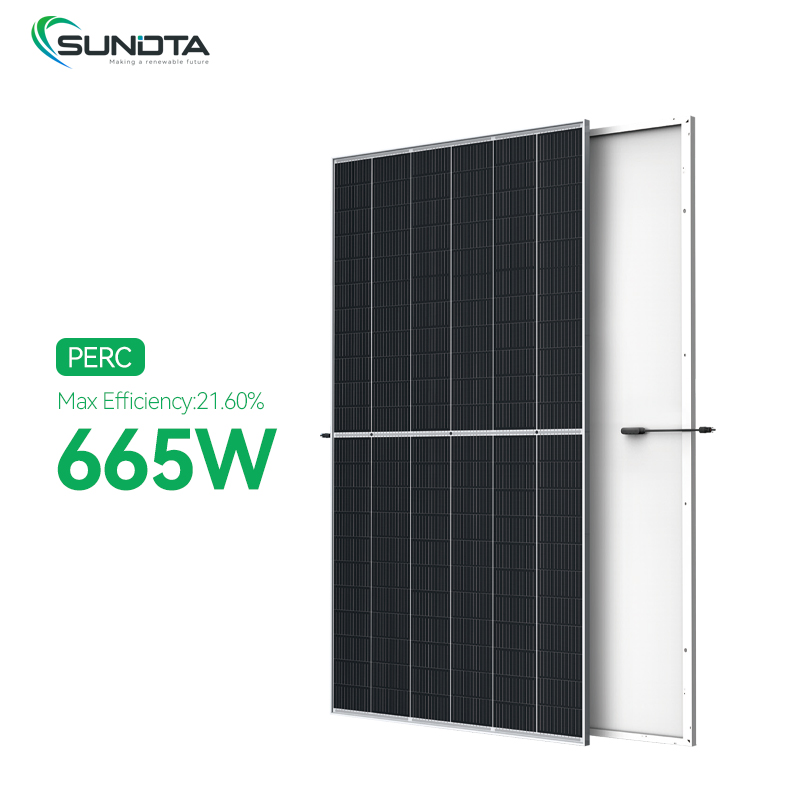

Chinese Factory 650w 660w 670w Solar Panel
| Cell Orientation | 132 cells |

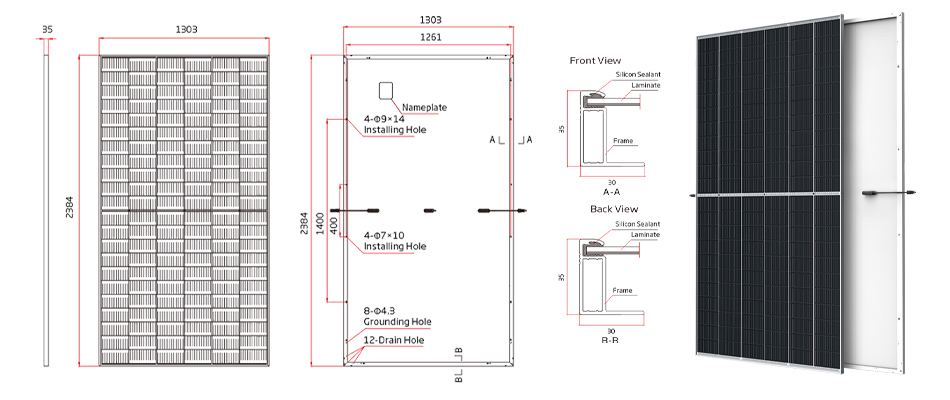

| Dimension | 2384x1303x35mm |
| Weight | 33.6kg |
| Glass |
3.2mm High Transmission,AR Coated Heat Strengthened Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable |
4mm2,280/280mm Length can be customized |
| Packaging | 31pcs/pallet, 558pcs/40'HQ |
| Maximum Power(Pmax) | 650w | 655w | 660w | 665w | 670w |
| Maximum Power Voltage(Vmp) | 37.4v | 37.6v | 37.8v | 38.00v | 38.20v |
| Maximum Power Current(Imp) | 17.39A | 17.43A | 17.47A | 17.51A | 17.55A |
| Open-circuit Voltage(Voc) | 45.30V | 45.50V | 45.70V | 45.90V | 46.10V |
| Short-circuit Current(lsc) | 18.44A | 18.48A | 18.53A | 18.57A | 18.62A |
| Module Efficiency(%) | 20.9% | 21.1% | 21.2% | 21.4% | 21.6% |
| Maximum Power (pmax) | 492W | 496W | 500W | 504W | 508W |
| Maximum Power Voltage(Vmp) | 34.90V | 35.10V | 35.30V | 35.40V | 35.60V |
| Maximum Power Current(lImp) | 14.09A | 14.13A | 14.17A | 14.22A | 14.26A |
| Open-circuit Voltage(Voc) | 42.70V | 42.900V | 43.00V | 43.20V | 43.40V |
| Short-circuit Current(lsc) | 14.86A | 14.89A | 14.93A | 14.96A | 15.01A |
| Module Efficiency(%) | 20.9% | 21.10% | 21.2% | 21.4% | 21.60% |
| 650w solar panel price with15 Years Warranty for Materials and Processing |
| 660w solar panels with 25 Years Warranty for Extra Linear Power Output |
| Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions. |
| Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead. |
| Minimized micro-cracks with innovative non-destructive cutting Technology. |
| Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance. |
| Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments. |
| Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load. |
