SOLIS Three Phase High Voltage Energy Storage Inverter

29.9-50KW Solis commercial energy storage inverter

SOLIS Three Phase High Voltage Energy Storage Inverter

The S6-EH3P(29.9-50)K-H series is a high-voltage, three-phase energy storage inverter for commercial use, featuring dual 70A ports, 4x MPPTs (20A max), parallel operation (up to 6 units), 1.6x overload backup, wide battery compatibility, and peak shaving in self-use/generator modes.

Item NO.:
S6-EH3P(29.9-50)K-H
Model:
S6-EH3P(29.9-50)K-H
Output Voltage:
3/N/PE, 220 V / 380 V, 230 V / 400 V
Max Output power:
30kw/40kw/50kw
PV Input Voltage:
Max.1000 V
Battery Voltage:
150 - 800 V
Weight:
73 kg
Dimension:
530 × 880 × 290 mm
Display:
7.0

Inquiry now

Product Details

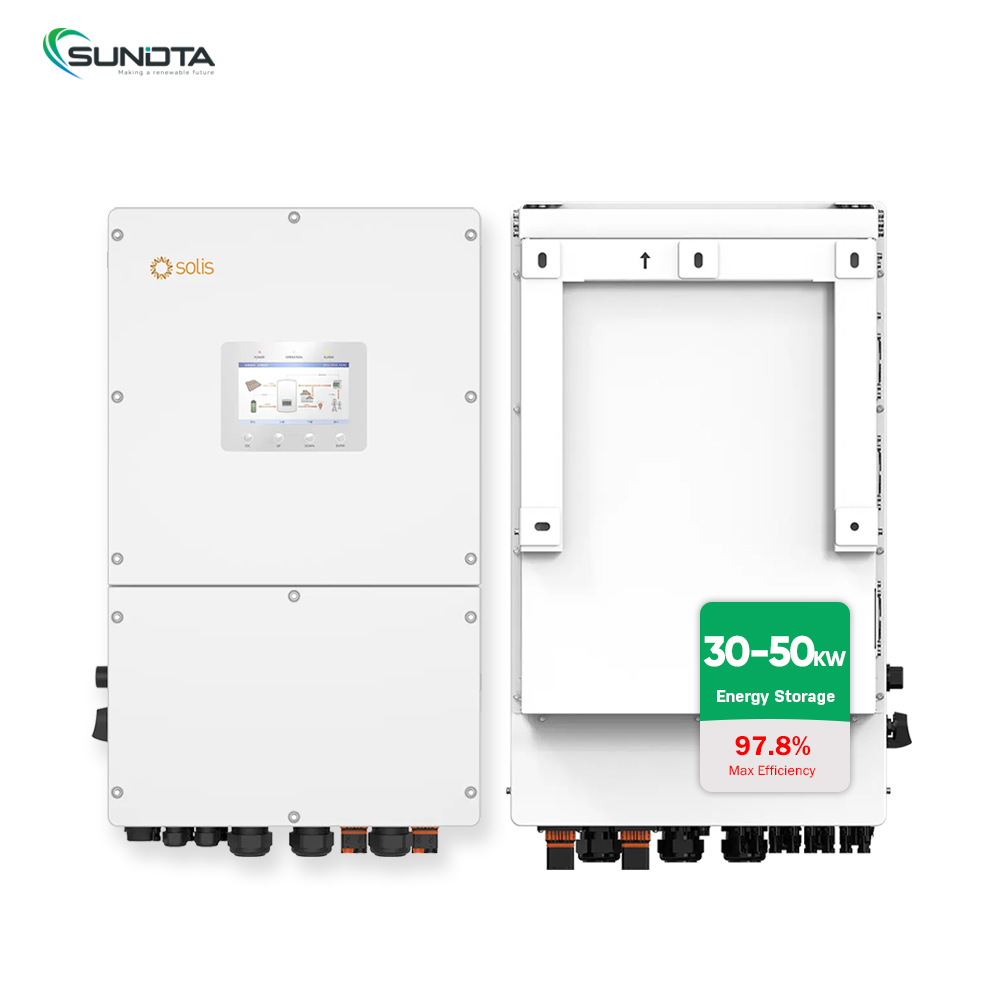

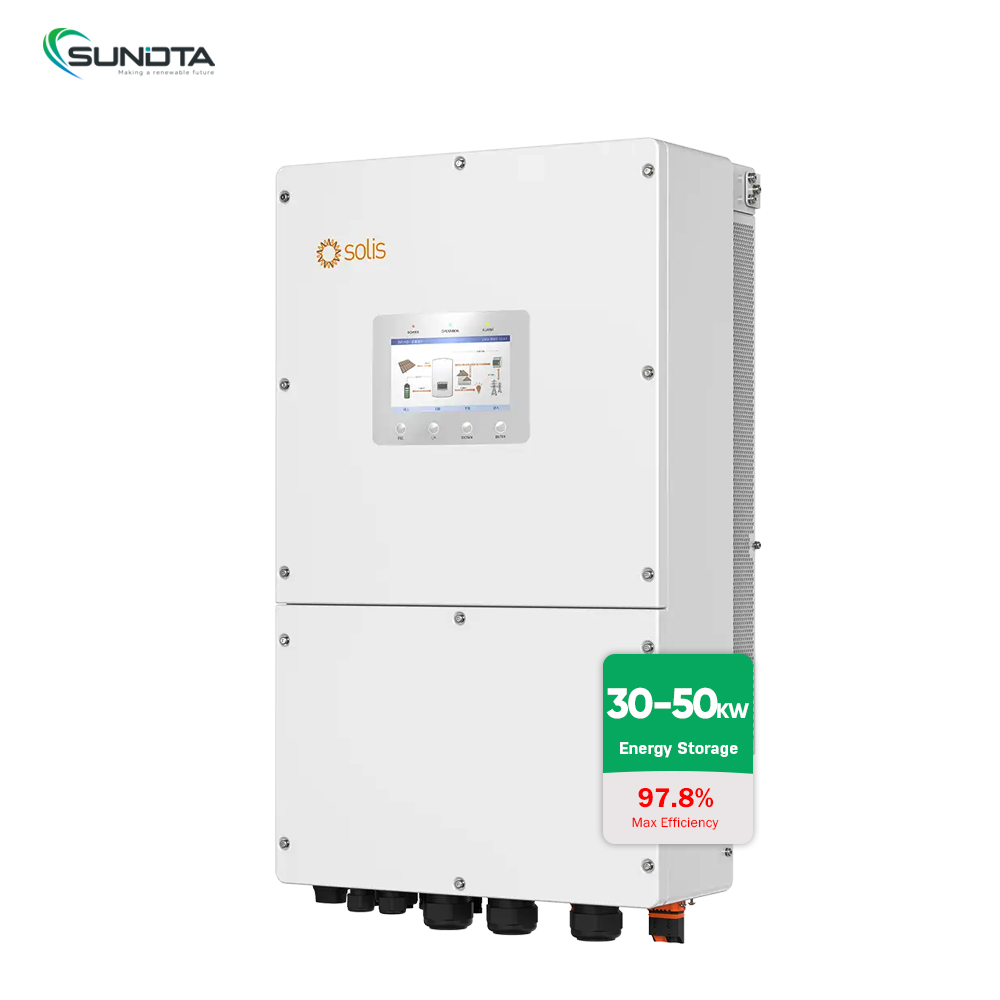

Three Phase High Voltage Energy Storage Inverter

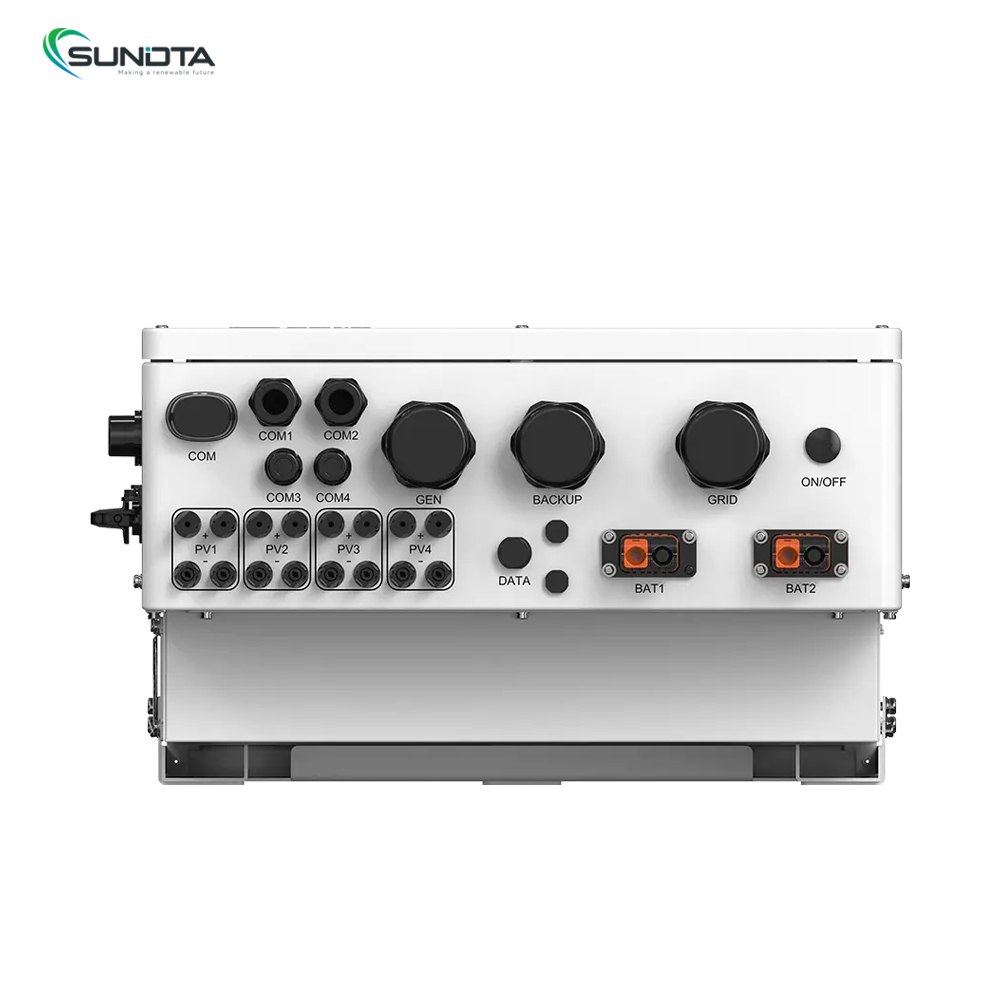

Introducing the S6-EH3P(29.9-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(29.9-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Leading Features

Smart Energy Management

1. AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs;

2. Adapt to third party VPP platform, frequency service provider

High Performance

1. Supports 100% three-phase unbalanced output;

2. 200% PV input capacity to maximize solar energy utilization;

3. Max. 160% overload capability in off-grid mode;

4. Charging and discharging currents up to 140A;

5. Switching time < 10ms;

Flexible & Scalable

1. Compatible with mainstream lithium batteries;

2. Support Solis C&I battery solution;

3. Easily expand system capacity using parallel connections and AC coupling;

Simple & Fast Configuration

1. 7-inch LCD screen for an intuitive user experience

2. Bluetooth app support for quick and easy setup

DATASHEET	S6-EH3P(30-50)K-H
Models	30K	40K	50K
Input DC (PV side)
Recommended max. PV array size	60 kW	80 kW	100 kW
Max. usable PV input power	60 kW	80 kW	100 kW
Max. input voltage	1000 V
Rated voltage	600V
Start-up voltage	180V
MPPT voltage range	150 - 850 V
Max. input current	40 A / 40 A / 40 A	4 × 40 A
Max. short circuit current	60 A / 60 A / 60 A	4 × 60 A
MPPT number / Max. input strings number	3 / 6	4 / 8
Battery
Battery type	Li-ion
Battery voltage range	150 - 800 V
Max. charge / discharge power	33 kW	44 kW	55 kW
Max. charge / discharge current	70 A × 2 (1)
No. of battery inputs	2
Max. charge / discharge power of each input	33 kW	35 kW	35 kW
Communication	CAN / RS485
Output AC (Grid side)
Rated output power	30 kW	40 kW	50 kW
Max. apparent output power	30 kVA	40 kVA	50 kVA
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid frequency	45.6 A / 43.3 A	60.8 A / 57.7 A	76 A / 72.2 A
Max. output current	45.6 A / 43.3 A	60.8 A / 57.7 A	76 A / 72.2 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Max. AC passthrough current	91.2 A / 86.6 A	121.6 A / 115.4 A	152 A / 144.4 A
Rated input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Input Generator
Max. input power	30 kW	40 kW	50 kW
Rated input current	45.6 A / 43.3 A	60.8 A / 57.7 A	76 A / 72.2 A
Rated input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Output AC (Back-up)
Rated output power	30 kW	40 kW	40 kW
Max. apparent output power	1.6 times of rated power, 2 s
Back-up switch time	< 10 ms
Rated output voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency	50 Hz / 60 Hz
Rated output current	45.6 A / 43.3 A	60.8 A / 57.7 A	76 A / 72.2 A
Rated output current	< 2%
Efficiency
Max. efficiency	97.8%
EU efficiency	97.4%
BAT charged by PV max. efficiency	98.5%
BAT charged by PV max. efficiency	97.5%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Integrated AFCI 2.0	Optional
General Data
Dimensions (W × H × D)	530 × 880 × 290 mm
Weight	73 kg
Topology	Transformerless
Self-consumption (night)	< 35 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Ingress protection	IP66
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
