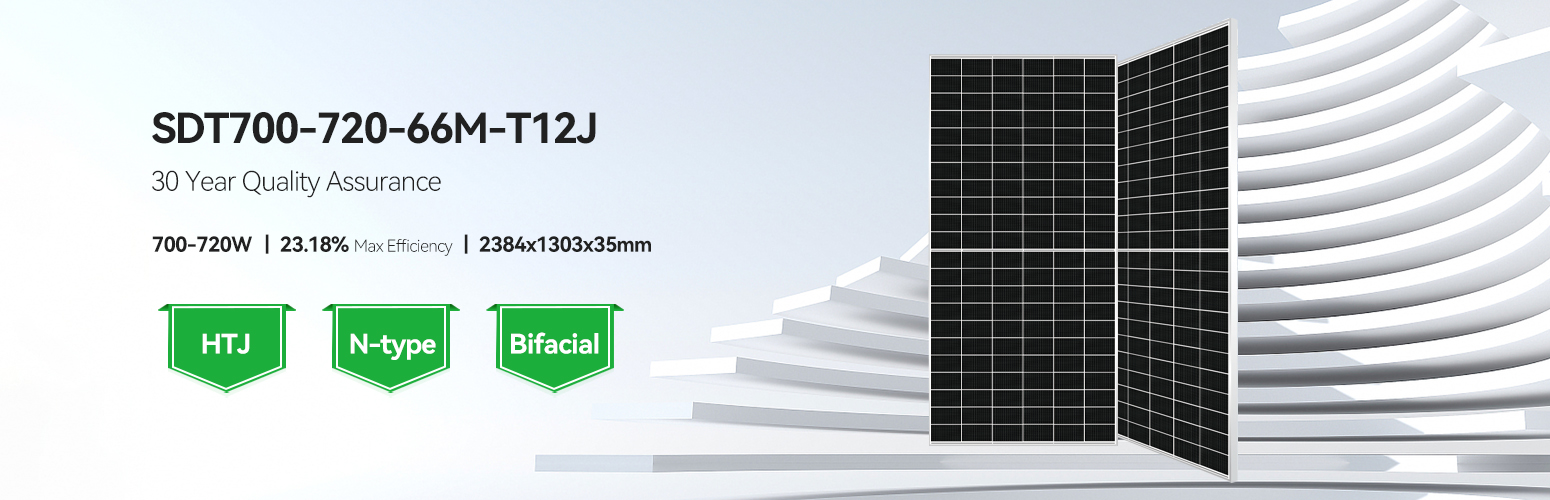

Model:
SDT700-72066M-T12JDimension:
2384x1303x35mmWeight:
38.7KgNo. Of Cells:
132 cells(6x22)Efficiency:
23.18%Certification:
CE/TUVWarranty:
15 Years

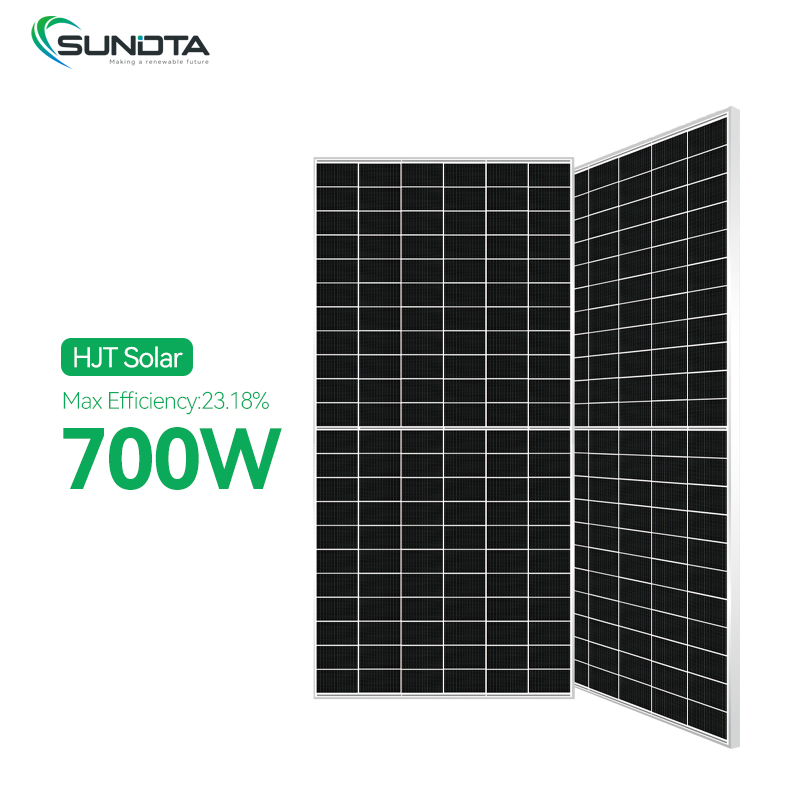

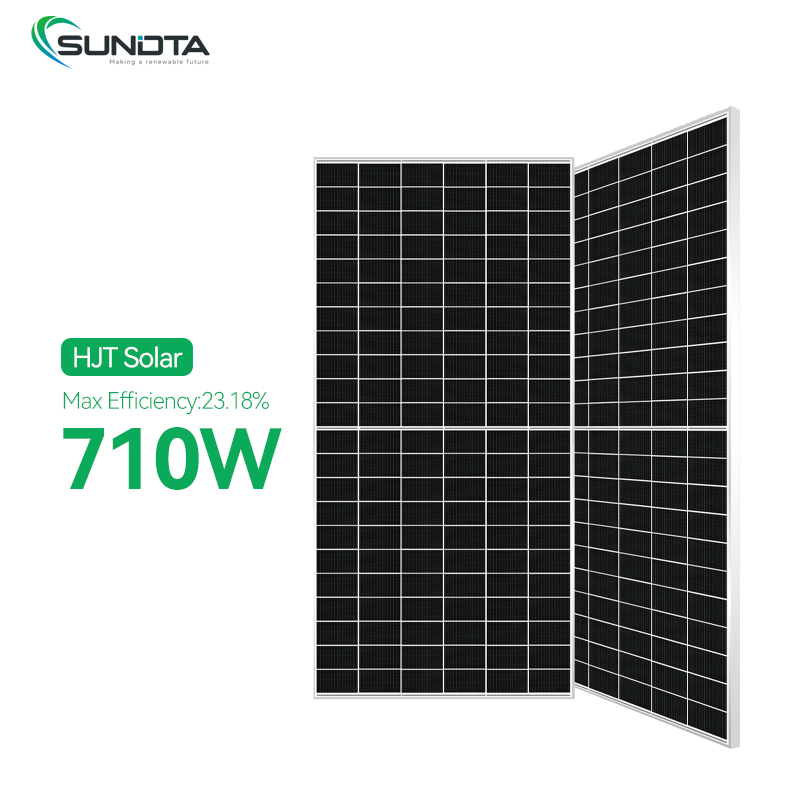

Factory Direct Sales 700w 710w 720w Solar Module with HJT 2.0 Technology
| Number of Cells | 132 Cells (6x22) |

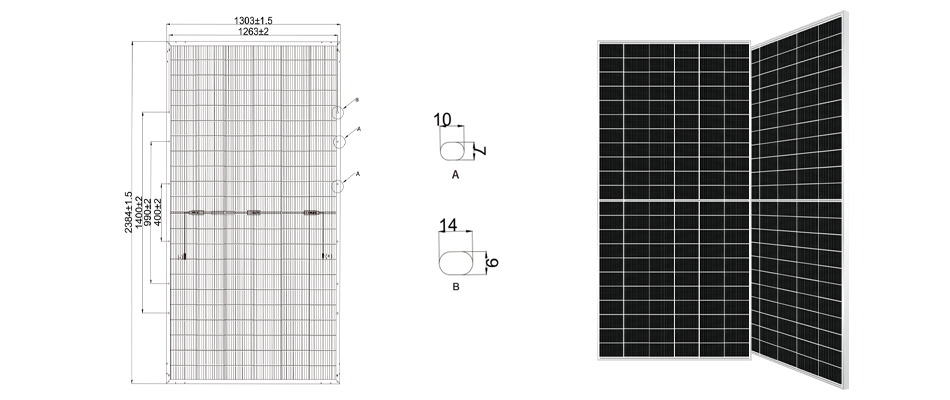

| Dimension | 2384x1303x35mm |
| Weight | 38.7kg |

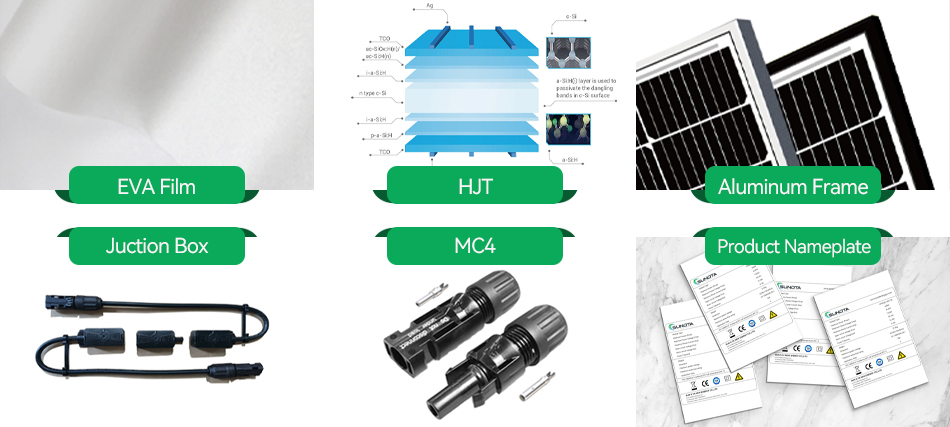

| Glass |
Front Glass.2.0mm High transparency solar glass Back Glass.2.0mm High transparency solar glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Cable |
300mm² in length length can be customized/uV resistant |
| Packaging | 31pcs/pallet,558pcs/40'HQ |
| Maximum Power(Pmax) | 700w | 705w | 710w | 715w | 720w |
| Maximum Power Voltage(Vmp) | 42.10V | 42.25V | 42.39V | 42.54V | 42.68V |
| Maximum Power Current(Imp) | 16.63A | 16.69A | 16.75A | 16.81A | 16.87A |
| Open-circuit Voltage(Voc) | 50.13V | 50.29V | 50.44V | 50.59V | 50.74V |
| Short-circuit Current(lsc) | 17.43A | 17.49A | 17.55A | 17.61A | 17.67A |
| Module Efficiency(%) | 22.53% | 22.7% | 22.86% | 23.02% | 23.18% |
| HJT 2.0 Technology |
| Combining gettering process and single-side uc-Si technology to ensure higher cell efficiency and higher module power. |
| -0.26%/ C Pmax temperature coefficient |
| More stable power generation performance and even better in hot climate. |
| SMBB design with Half-Cut Technology |
| Shorter current transmission distance, less resistive loss andhigher cell efficiency. |
| Up to 90% Bifaciality |
| Natrual symmetrical bifacial structure bringing more energy yield from the backside. |
| Sealing with PIB based sealant |
| Stronger water resistance, greater air impermeability to extentmodule lifespan. |
| Higher reliability |
| industrial leading product and performance warranty, ensuring modules' consistent outstanding performance. |
| Suitable for Utility project |
| Lower BOS cost, lower LCOE. |
