4mm2 Twin Core DC Cable Solar PV Cable 100 Meter Roll

PV1-F photovoltaic cable is a kind of special cable used for solar photovoltaic modules in the system.

Item NO.:
H1Z2Z2-K/PV1-F 1x4.0
Model:
Output Voltage:
Max Output power:
PV Input Voltage:
Battery Voltage:
Weight:
Dimension:
Display:
Certification:
Warranty:

Inquiry now

Product Details

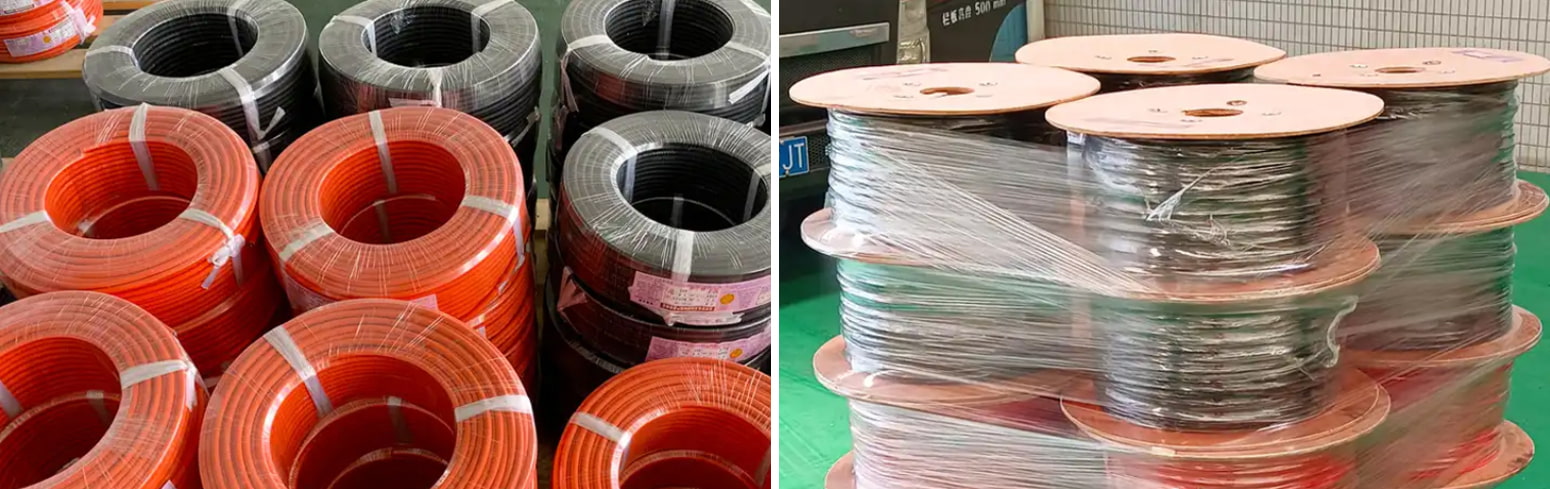

PV Cable 100 Meter Roll

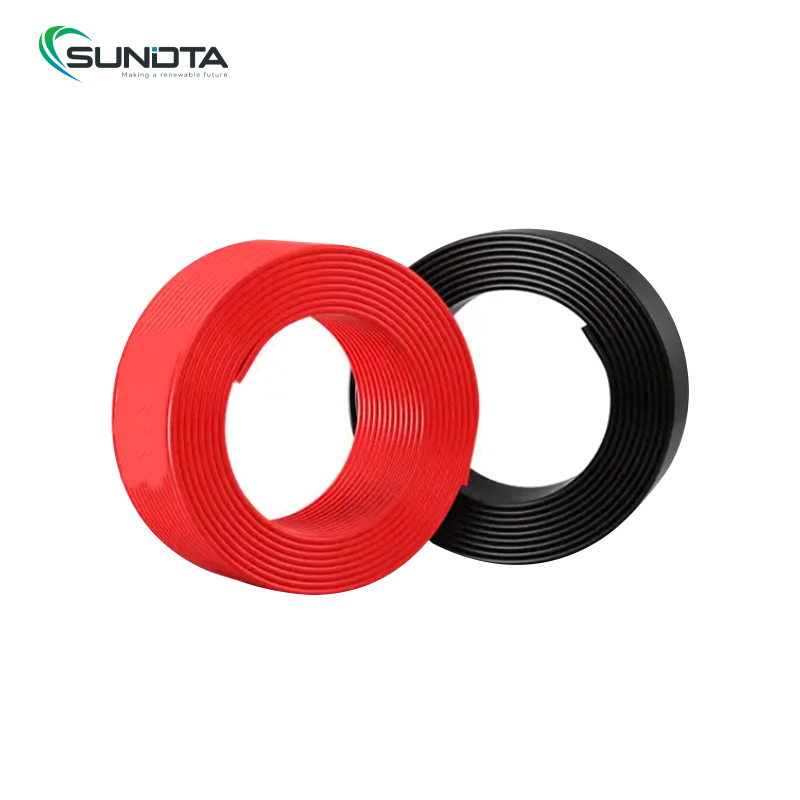

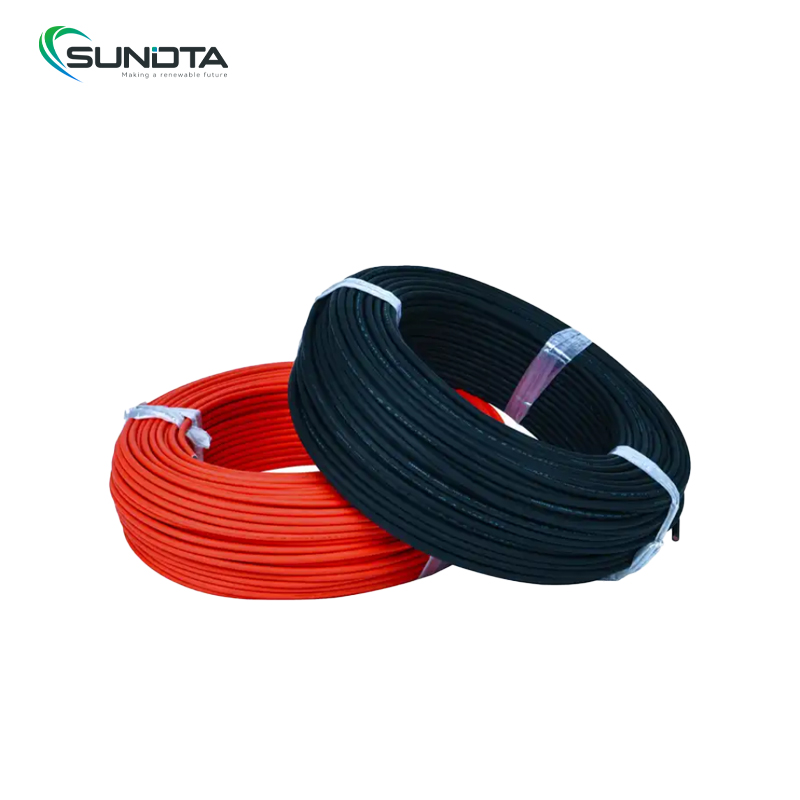

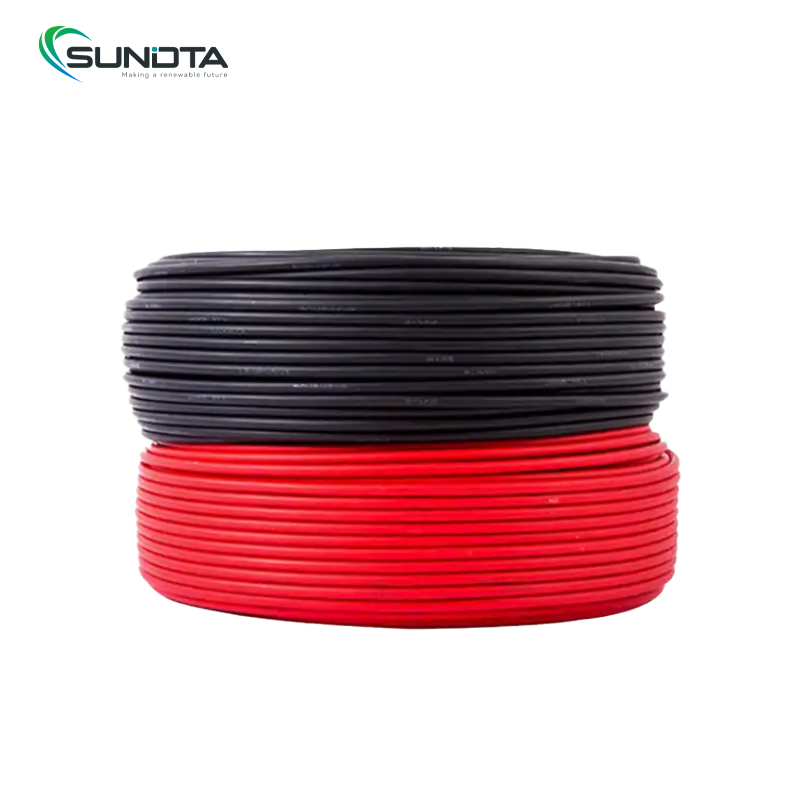

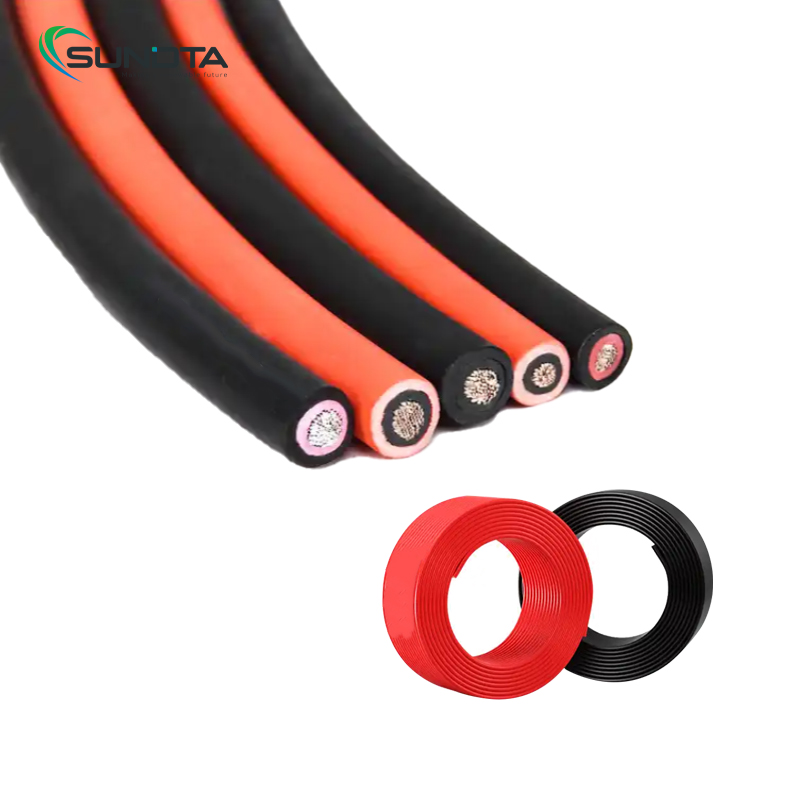

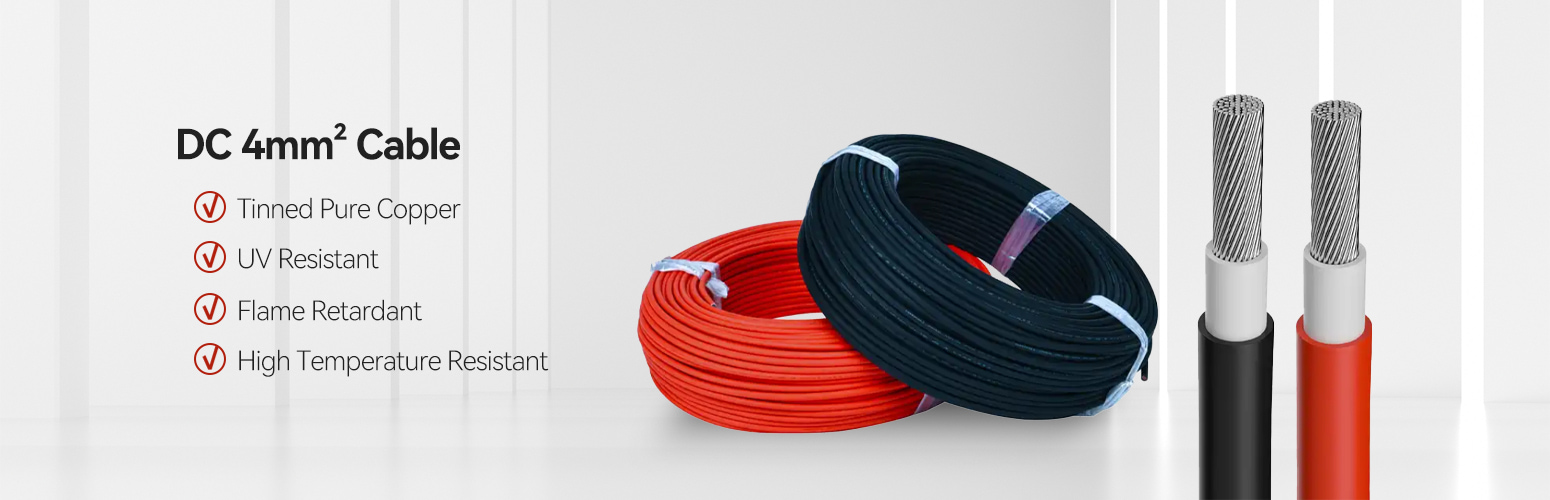

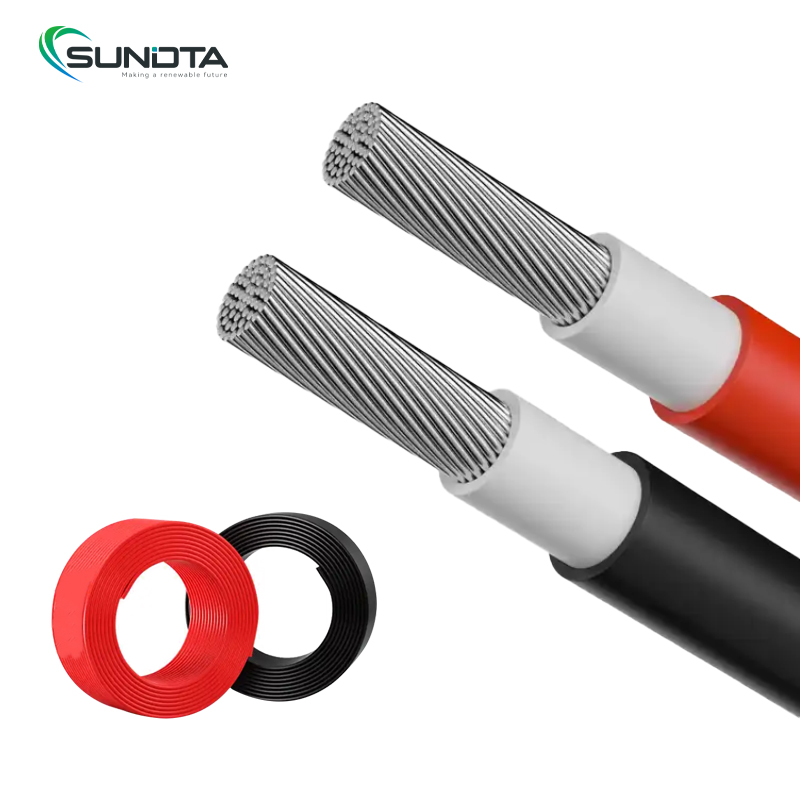

4mm2 Twin Core DC Cable Solar PV Cable 100 Meter Roll

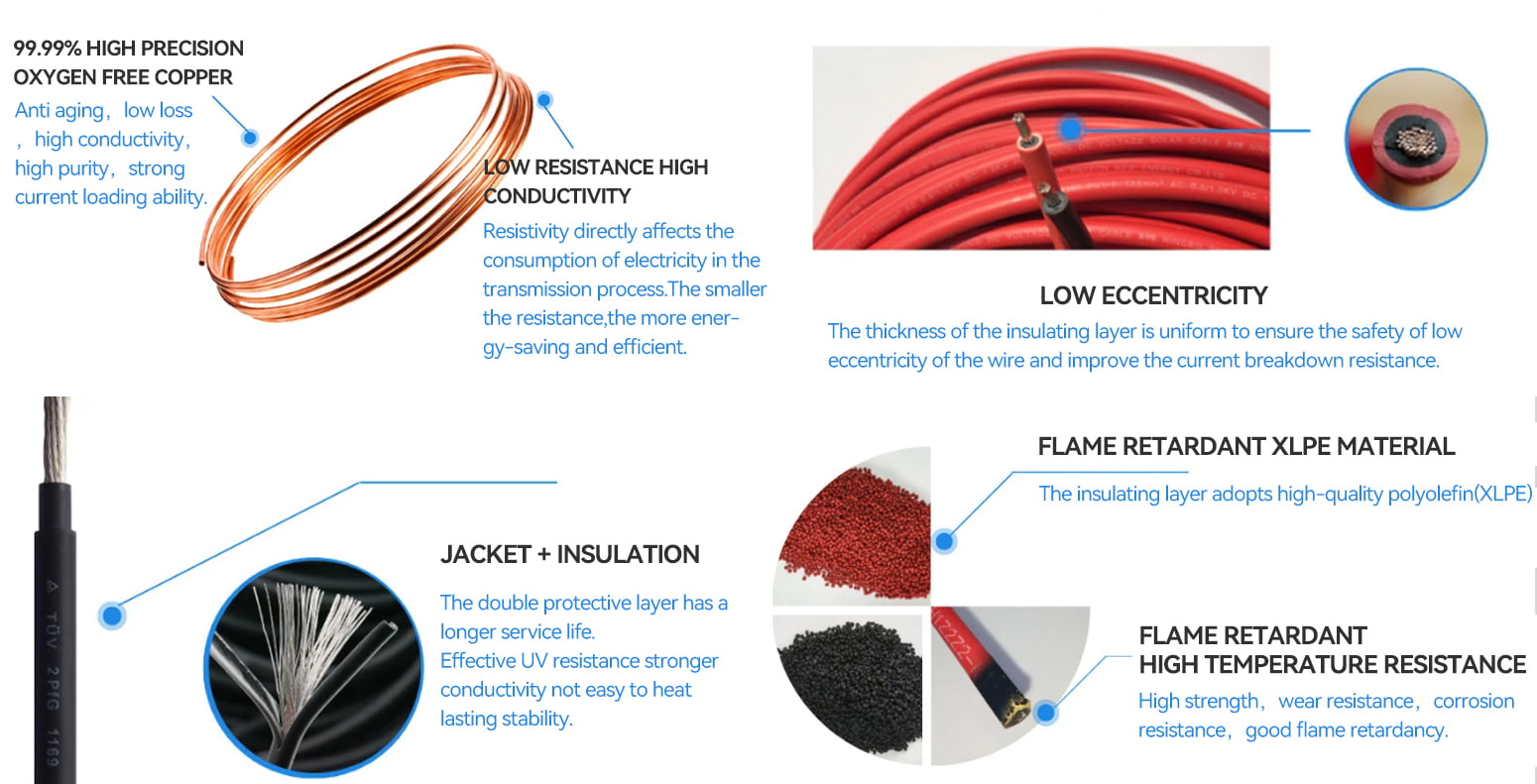

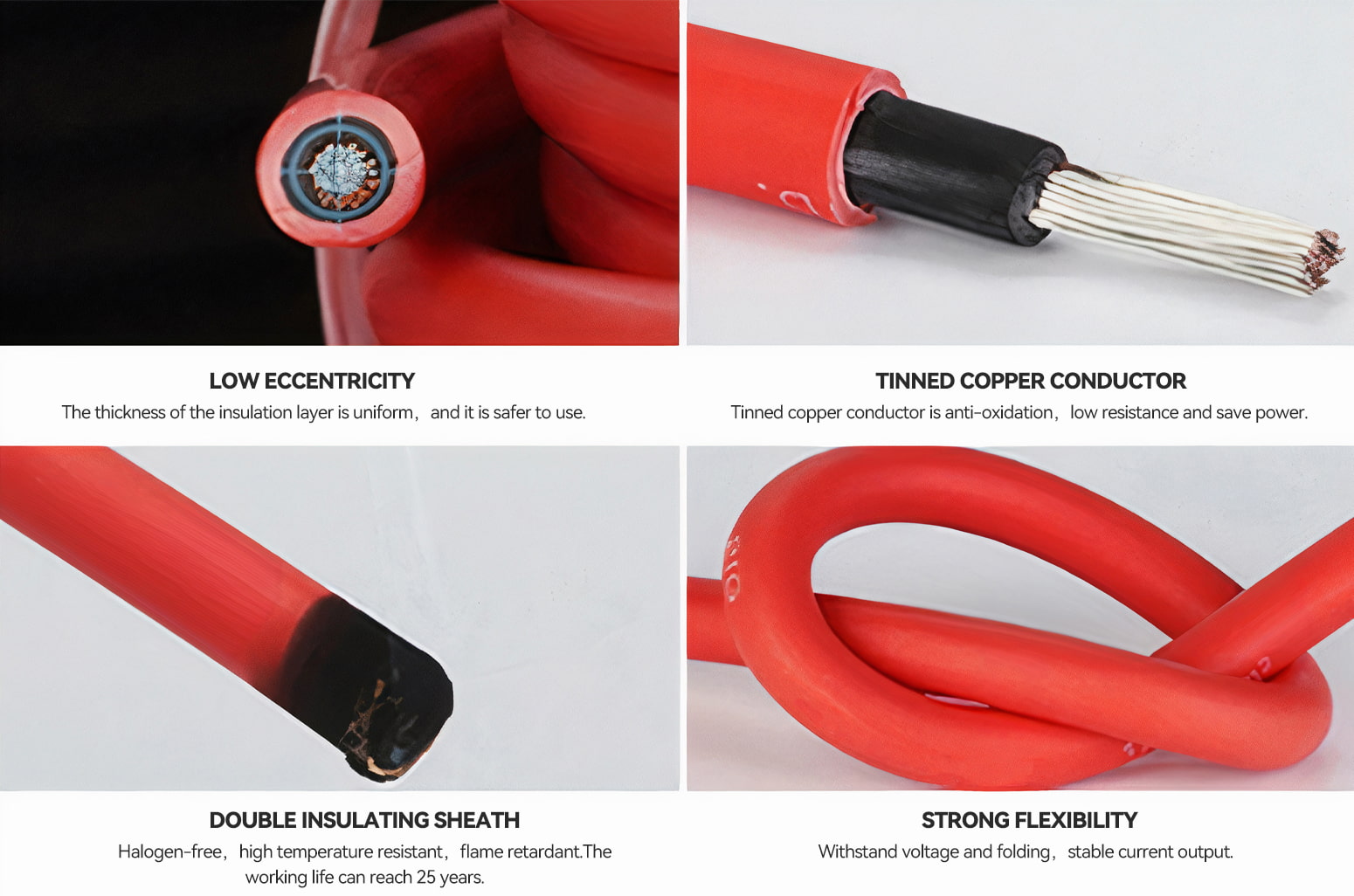

PV1-F photovoltaic cable is a kind of special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, friction resistance and so on, and has ultra long service life.

Technical Specification For Cable
Cable Type
H1Z2Z2-K/PV1-F 1x4.0mm
Application

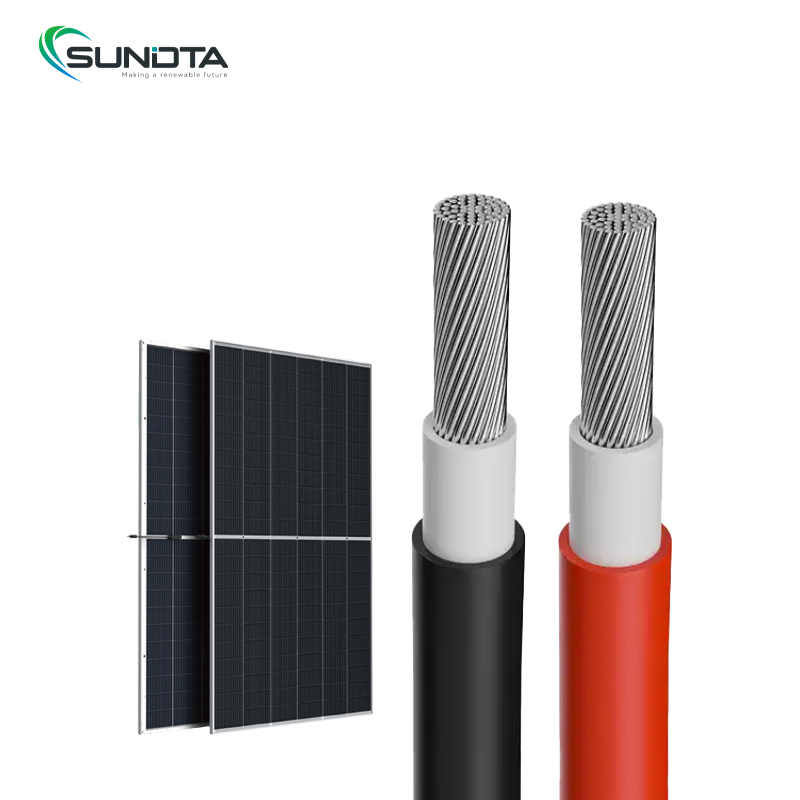

This cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment
standard
EN 50618:2014/TUV 2Pfg1169 08.07
Conductor	Conductor Material	Stranded tinned copper
Conductor	Constitute Structure	56/0.285(±0.005)mm
Insulation	Insulation Matcrial	XLPO
Insulation	Insuiation thc Min. Thickness	0.75
Shield( Braiding Iay)	/	/
Jacket	Jackct Material	XLPO
	Jackct Colour	black or red
	Jacket Min. Thickness(mm）	0.7
	Jackct Outer Diameter(mm)	5.5+0.20
Rated Voltage (V)	ACUoU0.6-I.0KV.DC1.5KV
Temperature range	-40*C~-+90C
Conductor dc resistance	≤5.092/km
20000 hours Conductor maximum working temperature	120℃
weight	61kg/km
The service life of the theory	25 years
